Section 06 ST EE RING AND PROPULSION
Subsection 03 (JET PUMP)

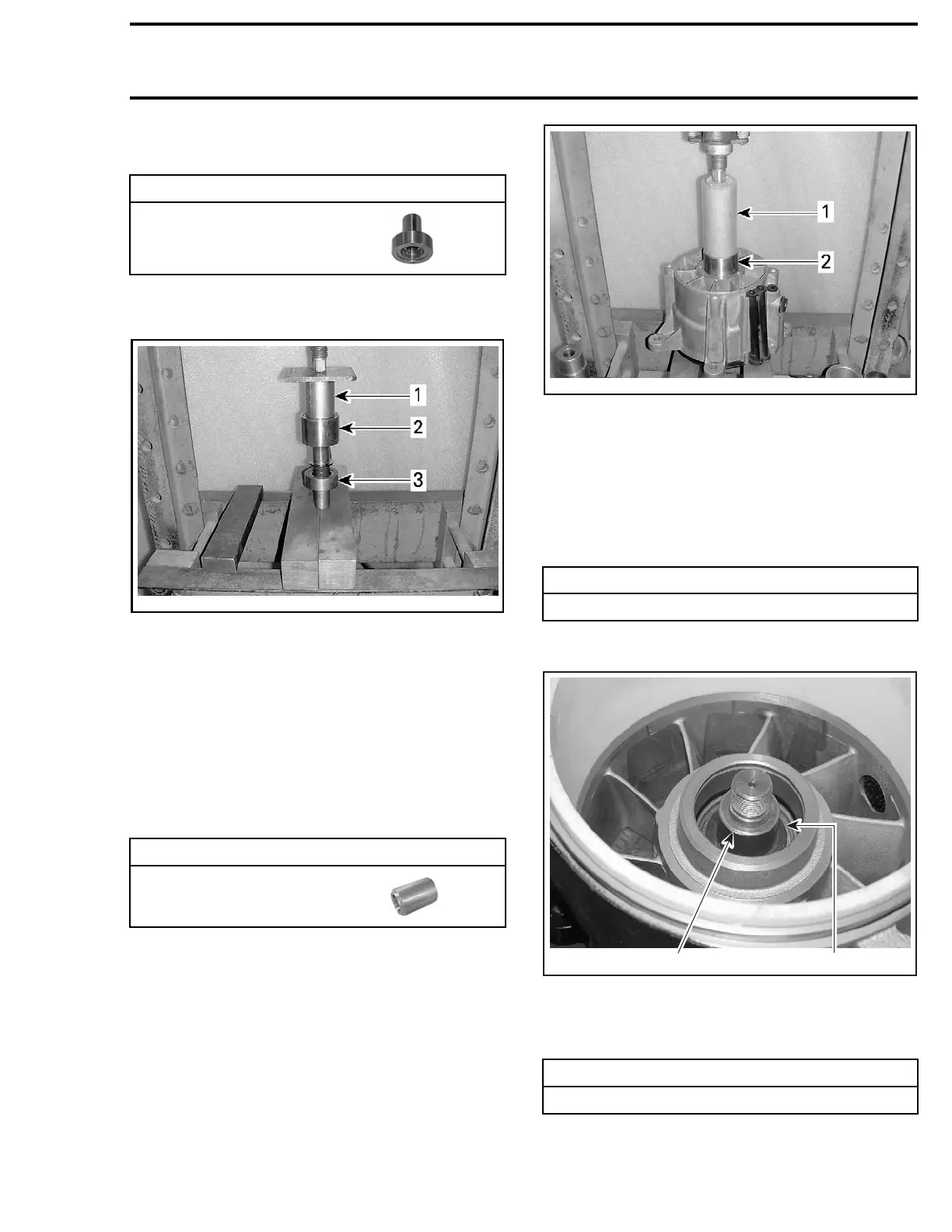

2. Use the Impeller shaft pusher tool to protect
the impeller s haft threads.
REQUIRED TOOL
IMPELLER SHAFT
PUSHER (P/N 529
035 955)
NOTE: The bearing can be installed in either direc-
tion.
smr2009-006-013_a
TYPICAL
1. Impeller s haft bearing tool on IN NER race
2. Impeller shaft and bearing
3. Impeller shaft installer/pusher tool
3. Press bearing until it bottoms.
Installing the Impeller Shaft and Seals
NOTE: Ensure there is no O-ring i n pump housing
on the cover side.
1. From the outlet side of pump, press impeller
shaft assembly into housing using the Impeller
shaft bearing tool.
REQUIRED TOOL
IMPELLER SHAFT
BEARING TOOL
(P/N 52
9 036 168)
smr2009-006-014_a
TYPICAL
1. Bearing tool
2. Impeller shaft and bearing
2. Press bearing until it bottoms.
NOTE: Ensure impeller shaft turns freely and
smoothly.
3. Turn pump upside down.
4. Coat shaft surface and O-ring with grease.
SERVICE P
RODUCT
JET PUMP BEARING GREASE (P/N 293 550 032)
5. Install g
reased O-ring at bottom.
1
F19J07A
2
TYPICAL
1. O-ring at bottom
2. Coat surface
6. Apply 5 g (.2 oz) of grease on bearing.
SERVICE PRODUCT
JET P
UMP BEARING GREASE (P/N 293 550 032)
219100963-019 197
