SeaDoo GTX Series 2022 User Manual

Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
F18J12A
TYPICAL

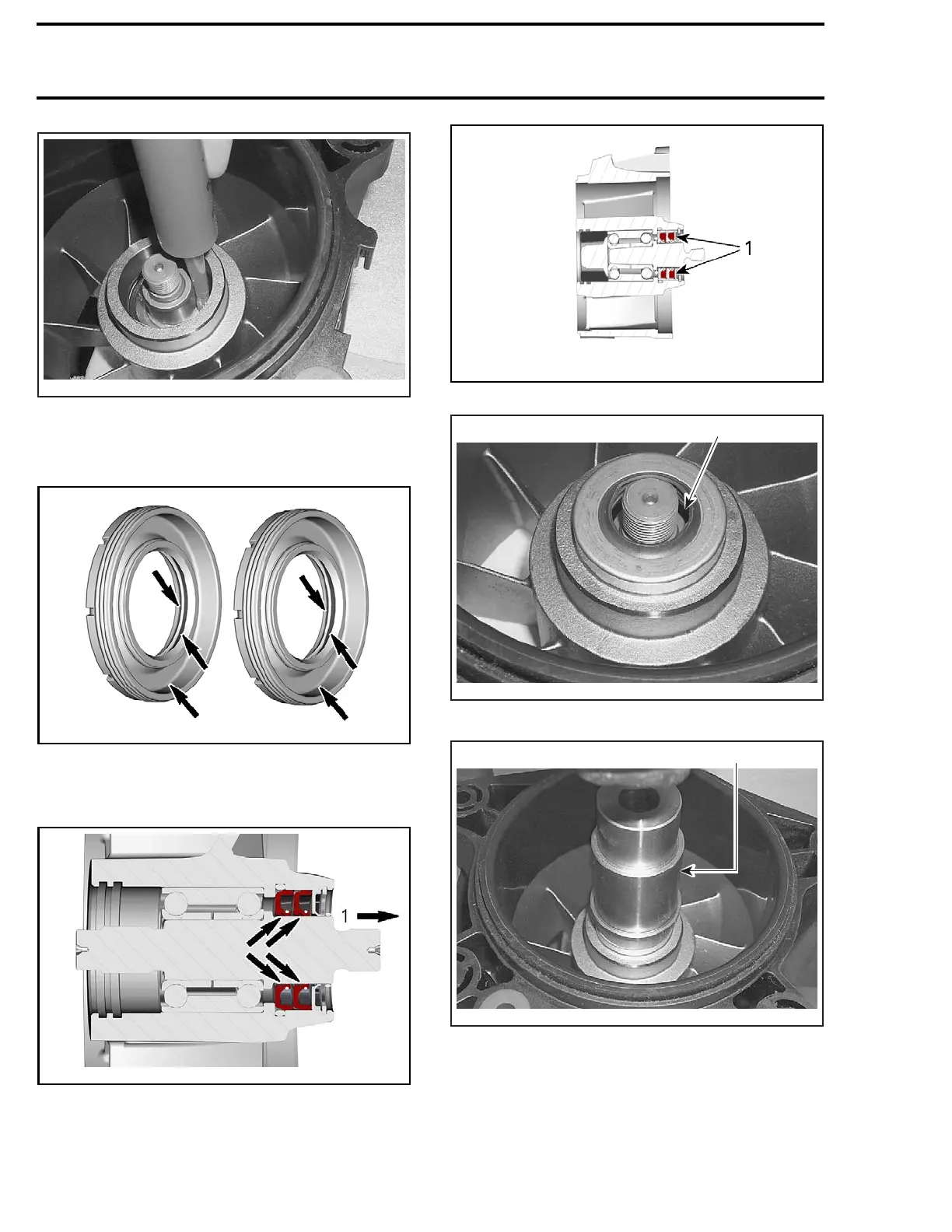

7. Apply 11 g (.4 oz) of grease inside NEW double
lip seal and in the seal lips.
219100959-021-002
PUT GREASE IN ALL SEAL CAVITIES.
8. Install double lip seals making sure seal lip are
facing upwards (toward impeller side).
219
100959-021-005
1. Toward impeller
219100959-021-001
1. Grease in seals cavities
1
F18J13A
1. Seal lip facing up
1
F18J14B
TYPICAL
1. Sea
l/bearing pusher
9. Install the other seal (thin). Ensure seal lip is
facing up.
198 219100963-019

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
