SeaDoo GTX Series 2022 User Manual

Section 07 BODY AND HULL
Subsection 01 (BODY)
219001878-045_a

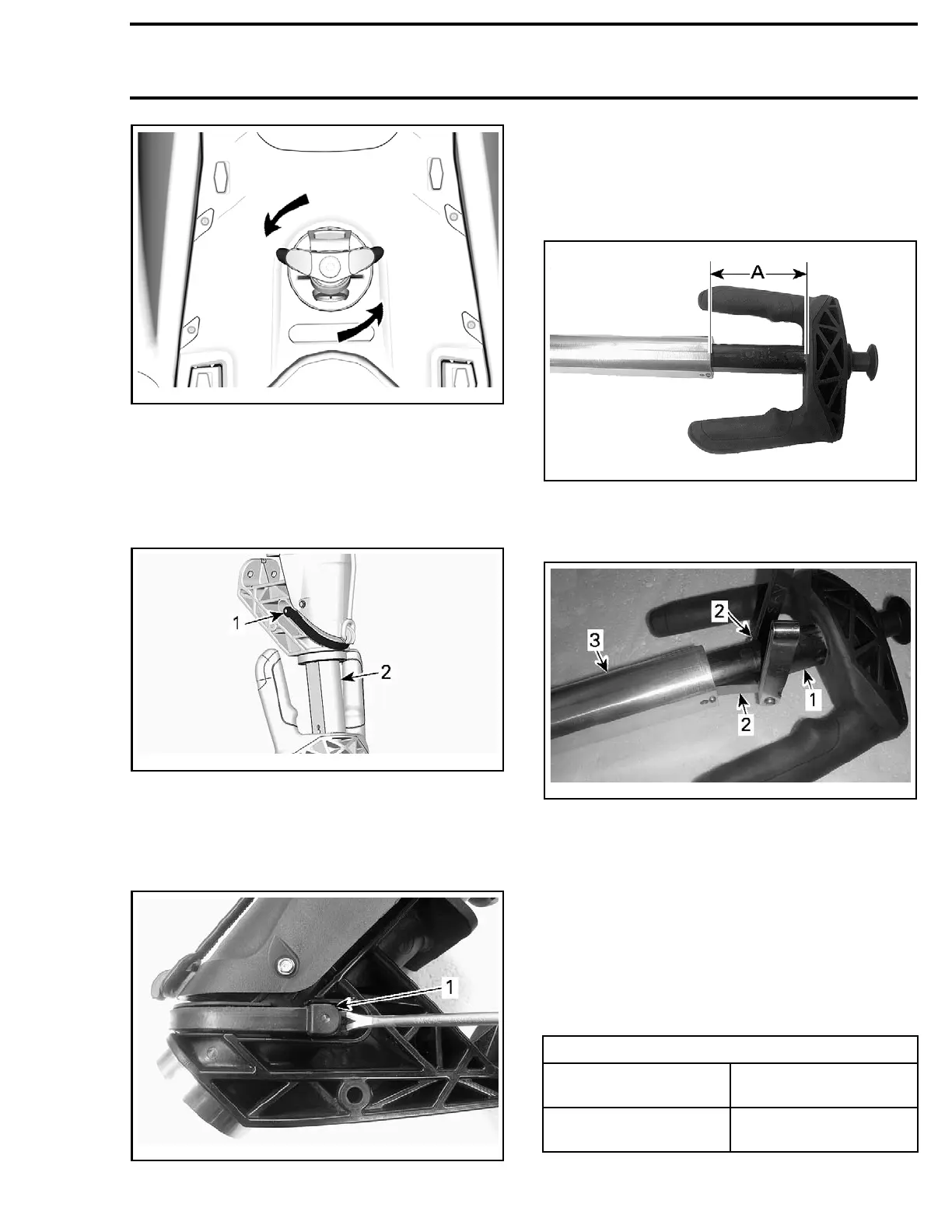

Disassembling the Wake Pylon
Extend the handle completely.
Turn the wake pylon upside down.
Move both ends of locking strap to disengage the
inner lock and free the handle.
smr2008-035-014_a
1. Locking strap end
2. Handle s
tem
Locking Strap
Using a screwdriver or any other suitable tool, de-
tach a side of the locking strap from retaining pin.
smr2008-035-015_a
1. Locking strap
Remove locking s trap and the inner lock.
Handle
Extend handle approximately 75 mm to 90 mm
(3 in to 3-1/2 in).
smr2008-035-016_a
A. 75 mm to 90 m m (3 in to 3-1/2 in)
Insert two thin feeler gauges between handle
stem and extension tube.
smr2008
-035-017_a
1. Handle stem
2. Feeler gauges
3. Extens
ion tube
Place a rag around the joint to catch balls and
spring.
Hold fe
eler gauges and pull the handle.
Assembling the Wake Pylon
Handle
Install a loose locking tie on handle stem.
Apply grease on each ends of spring.
SERVICE PRODUCT
Scandinavia
SYNTHETIC GREASE
(EUR) (P/N 779231)
All oth
er countries
SYNTHETIC GREASE
(P/N 779162)
Insert the spring in the handle stem hole.
219100963-021 233

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
