Chapter 5
Setup and Configuration
RUGGEDCOM ROS
User Guide
170 Viewing Global Statistics for STP

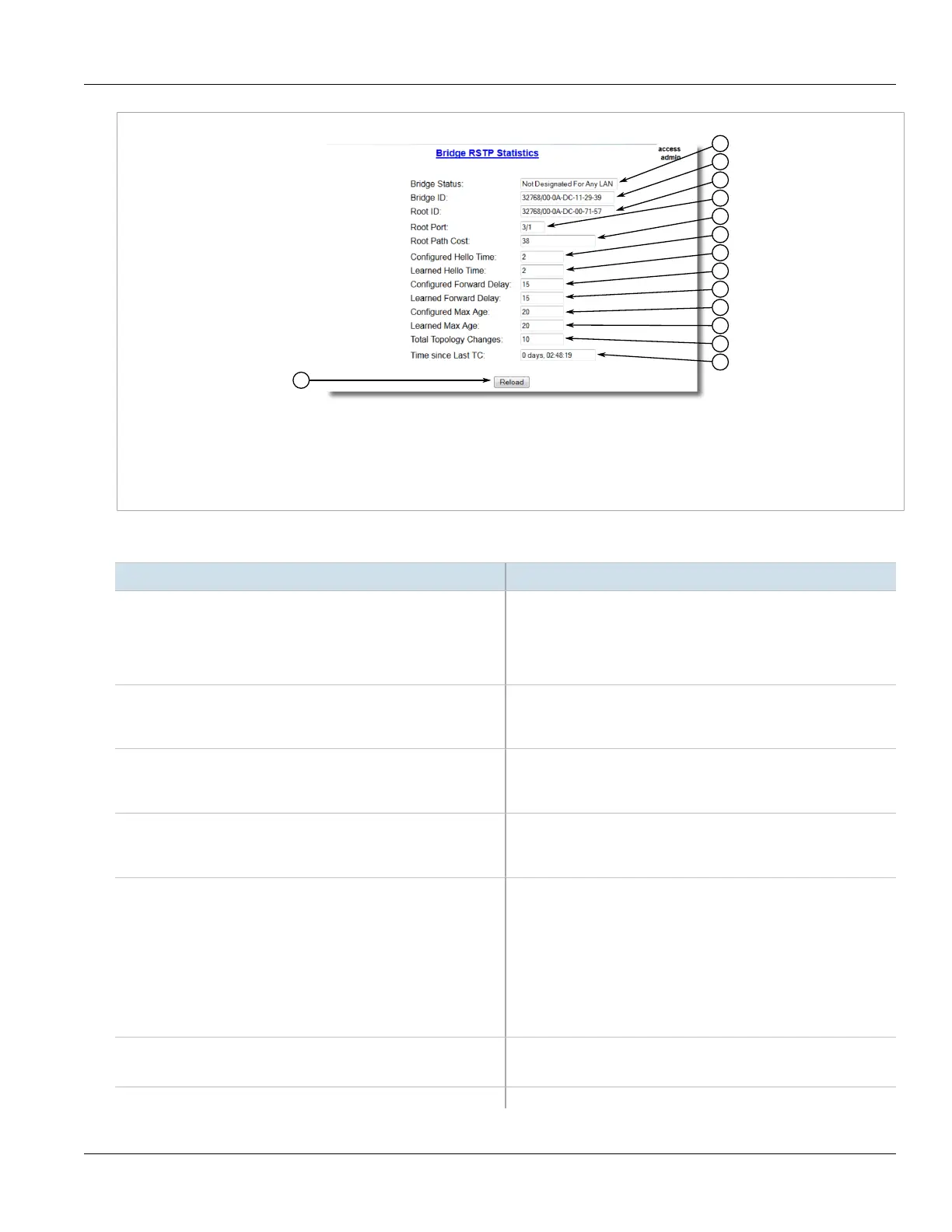

Figure98:Bridge RSTP Statistics Form
1.Bridge Status Box 2.Bridge ID Box 3.Root ID Box 4.Root Port Box 5.Root Path Cost Box 6.Configure Hello Time Box
7.Learned Hello Time Box 8.Configured Forward Delay Box 9.Learned Forward Delay Box 10.Configured Max Age Box 11.Learned
Max Age Box 12.Total Topology Changes Box 13.Time Since Last TC Box 14.Reload Button
This table displays the following information:
Parameter Description
Bridge Status Synopsis:  { , Designated Bridge, Not Designated For Any LAN, Root
Bridge }
Spanning Tree status of the bridge. The status may be root or
designated. This field may show text saying not designated for any
LAN if the bridge is not designated for any of its ports.
Bridge ID Synopsis:  $$ / ##-##-##-##-##-## where $$ is 0 to 65535, ## is 0
to FF
Bridge Identifier of this bridge.
Root ID Synopsis:  $$ / ##-##-##-##-##-## where $$ is 0 to 65535, ## is 0
to FF
Bridge Identifier of the root bridge.
Root Port Synopsis:  1 to maximum port number or { <empty string> }
If the bridge is designated, this is the port that provides connectivity
towards the root bridge of the network.
Root Path Cost Synopsis:  0 to 4294967295
Total cost of the path to the root bridge composed of the sum of
the costs of each link in the path. If custom costs have not been
configured. 1Gbps ports will contribute 4, 100 Mbps ports will
contribute 19 and 10 Mbps ports will contribute a cost of 100 to this
figure.
For the CIST instance of MSTP, this is an external root path cost,
which is the cost of the path from the IST root (i.e. regional root)
bridge to the CST root (i.e. network "global" root) bridge.
Configured Hello Time Synopsis:  0 to 65535
The configured Hello time from the Bridge RSTP Parameters menu.
Learned Hello Time Synopsis:  0 to 65535
