Configuring VLANs for Specific Ethernet Ports 143
Section5.1.4
Configuring VLANs for Specific Ethernet Ports
When a VLAN ID is assigned to an Ethernet port, the VLAN appears in the VLAN Summary table where it can be
further configured.
To configure a VLAN for a specific Ethernet port, do the following:
1. Navigate to Virtual LANs» Configure Port VLAN Parameters . The Port VLAN Parameters table appears.

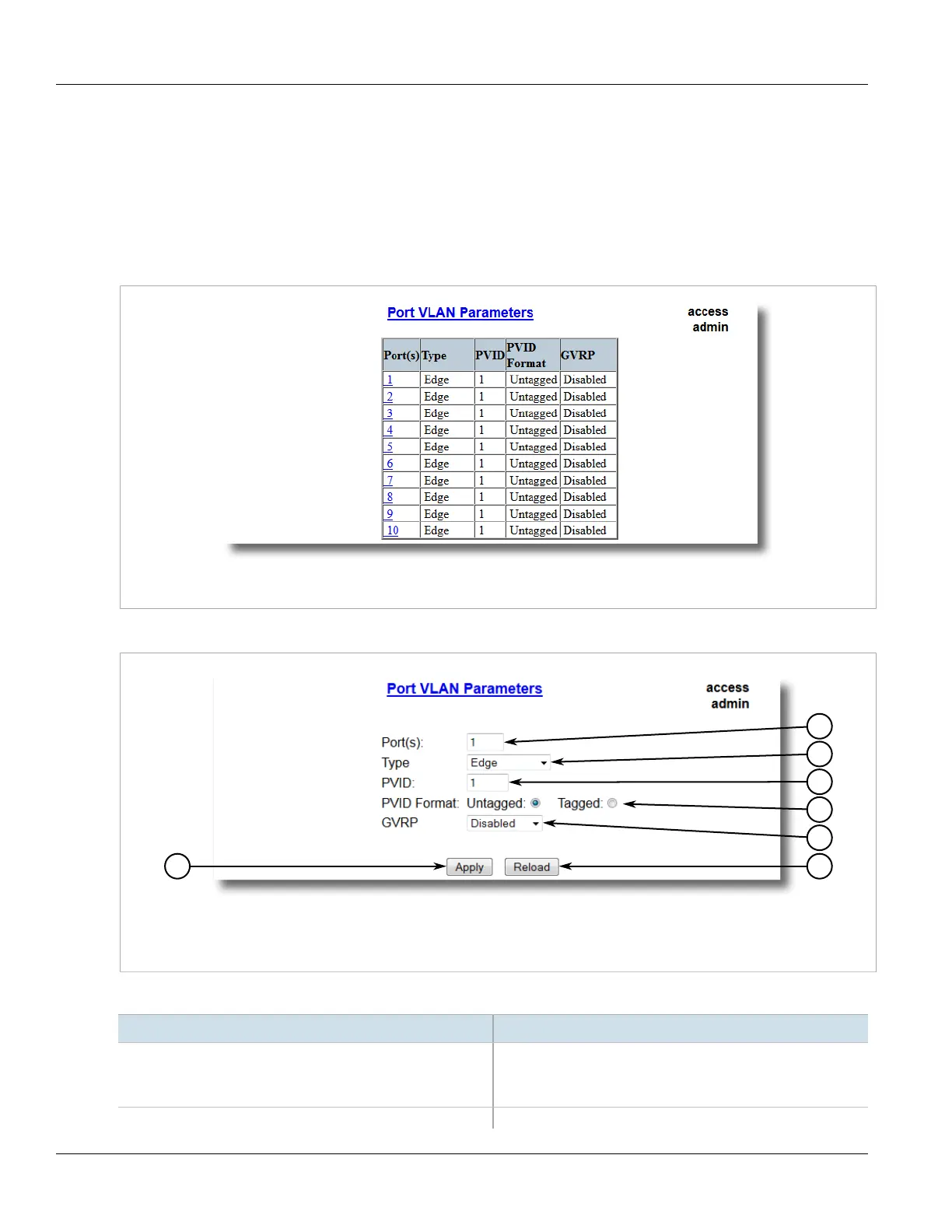

Figure83:Port VLAN Parameters Table
2. Select a port. The Port VLAN Parameters form appears.
76
4
3
2
1
5
Figure84:Port VLAN Parameters Form
1.Port(s) Box 2.Type List 3.PVID Box 4.PVID Format Options 5.GVRP List 6.Apply Button 7.Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
Port(s) Synopsis:  Any combination of numbers valid for this parameter
The port number as seen on the front plate silkscreen of the
switch (or a list of ports, if aggregated in a port trunk).
Type Synopsis:  { Edge, Trunk, PVLANEdge, QinQ }
