Viewing a Summary of Multicast Groups 227
• Switch C forwards the Group 2 multicast via Port C2, which has previously become a member of Group 2.
• Ultimately, Host H2, connected to Port C2, receives the Group 2 multicast.
Section5.8.2.2
Viewing a Summary of Multicast Groups
To view a summary of all multicast groups, navigate to Multicast Filtering» View Multicast Group Summary .
The Multicast Group Summary table appears.

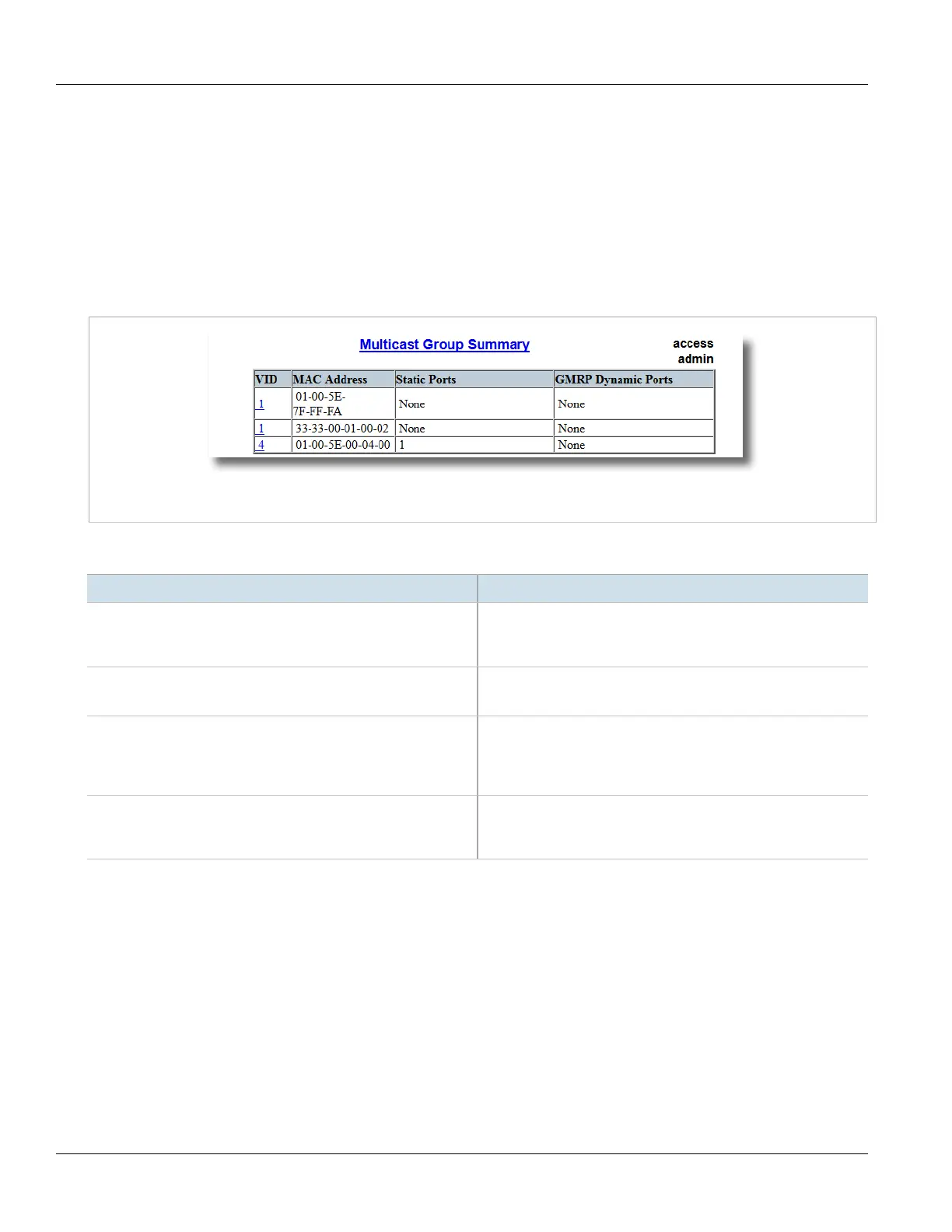

Figure156:Multicast Group Summary Table
This table provides the following information:
Parameter Description
VID Synopsis:  0 to 65535
VLAN Identifier of the VLAN upon which the multicast group
operates.
MAC Address Synopsis:  ##-##-##-##-##-## where ## ranges 0 to FF
Multicast group MAC address.
Static Ports Synopsis:  Any combination of numbers valid for this parameter
Ports that joined this group statically through static configuration
in Static MAC Table and to which the multicast group traffic is
forwarded.
GMRP Dynamic Ports Synopsis:  Any combination of numbers valid for this parameter
Ports that joined this group dynamically through GMRP Application
and to which the multicast group traffic is forwarded.
Section5.8.2.3
Configuring GMRP Globally
To configure global settings for GMRP, do the following:
1. Navigate to Multicast Filtering» Configure Global GMRP Parameters . The Global GMRP Parameters form
appears.
