186 Managing MAC Addresses
1
3 4
2

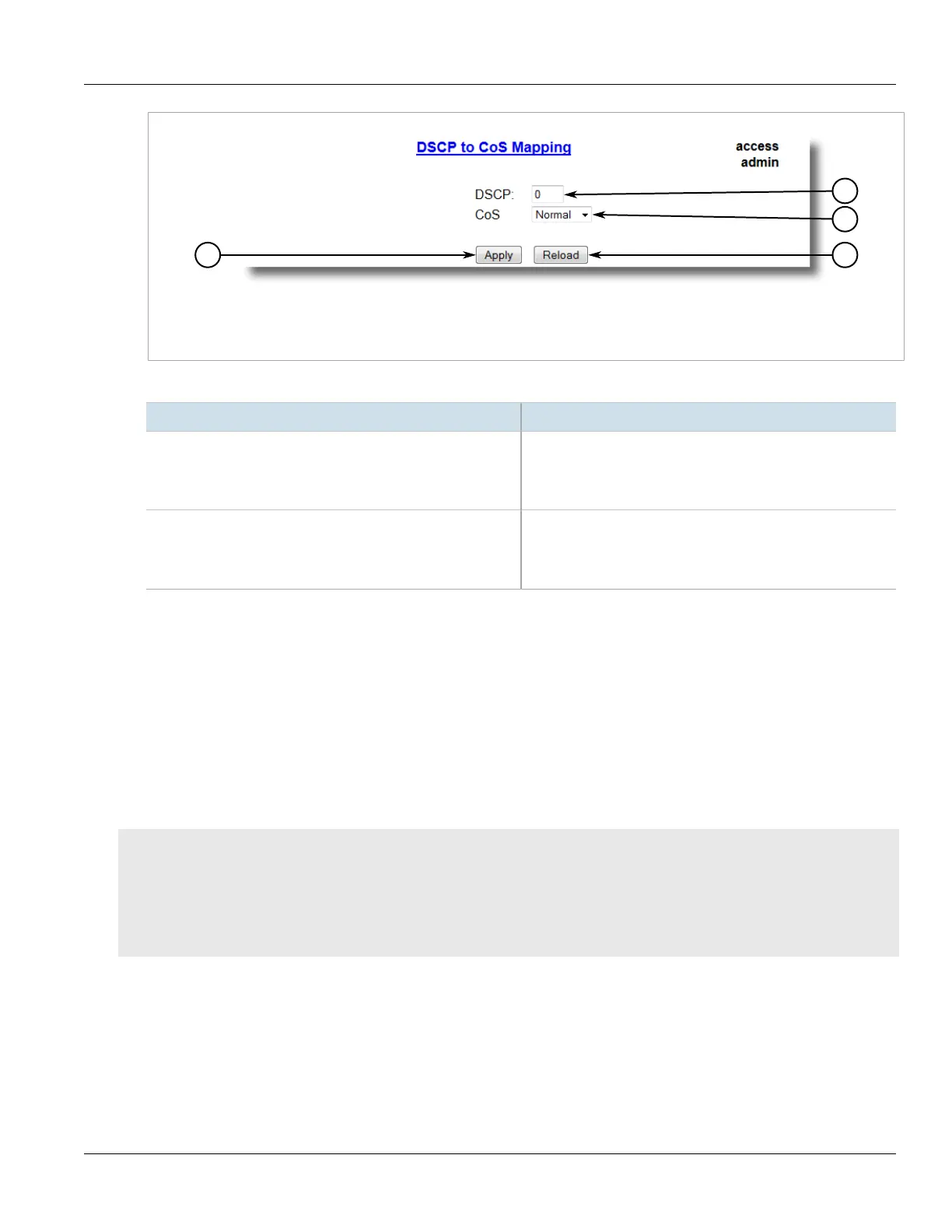

Figure113:DSCP to CoS Mapping Form
1.DSCP Box 2.CoS List 3.Apply Button 4.Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
DSCP Synopsis:  0 to 63
Default:  0
Differentiated Services Code Point (DSCP) - a value of the 6 bit
DiffServ field in the Type-Of-Service (TOS) field of the IP header.
CoS Synopsis:  { Normal, Medium, High, Crit }
Default:  Normal
Class of Service assigned to received frames with the specified
DSCP.
4. Click Apply.
5. Configure the CoS parameters on select switched Ethernet ports as needed. For more information, refer to
Section5.3.2, “Configuring Classes of Service for Specific Ethernet Ports” .
Section5.4
Managing MAC Addresses
The following section describes how to configure and manage MAC addresses.
CONTENTS
• Section5.4.1, “Viewing a List of MAC Addresses”
• Section5.4.2, “Configuring MAC Address Learning Options”
• Section5.4.3, “Configuring MAC Address Flooding Options”
• Section5.4.4, “Managing Static MAC Addresses”
