Section5.7.7
Viewing Statistics for LLDP Ports
To view statistics for LLDP ports, navigate to Network Discovery» Link Layer Discovery Protocol» View LLDP
Statistics . The LLDP Statistics table appears.

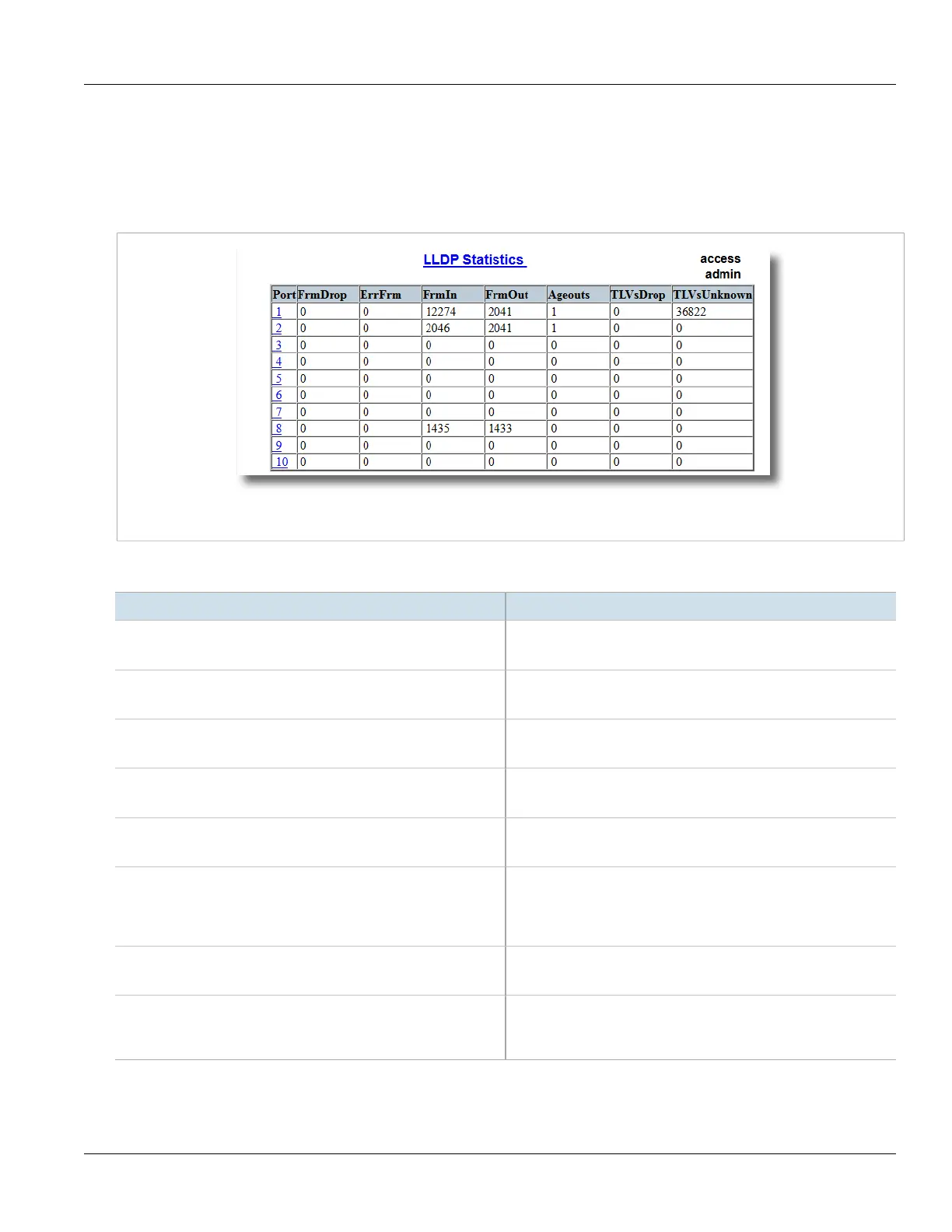

Figure149:LLDP Statistics Table
This table displays the following information:
Parameter Description
Port Synopsis:  1 to maximum port number
The port number as seen on the front plate silkscreen of the switch.
FrmDrop Synopsis:  0 to 4294967295
A counter of all LLDP frames discarded.
ErrFrm Synopsis:  0 to 4294967295
A counter of all LLDPDUs received with detectable errors.
FrmIn Synopsis:  0 to 4294967295
A counter of all LLDPDUs received.
FrmOut Synopsis:  0 to 4294967295
A counter of all LLDPDUs transmitted.
Ageouts Synopsis:  0 to 4294967295
A counter of the times that a neighbor's information has been
deleted from the LLDP remote system MIB because the txinfoTTL
timer has expired.
TLVsDrop Synopsis:  0 to 4294967295
A counter of all TLVs discarded.
TLVsUnknown Synopsis:  0 to 4294967295
A counter of all TLVs received on the port that are not recognized by
the LLDP local agent.
