Section5.4.1
Viewing a List of MAC Addresses
To view a list of all static and dynamically learned MAC addresses, navigate to MAC Address Tables» View MAC
Addresses . The MAC Addresses table appears.

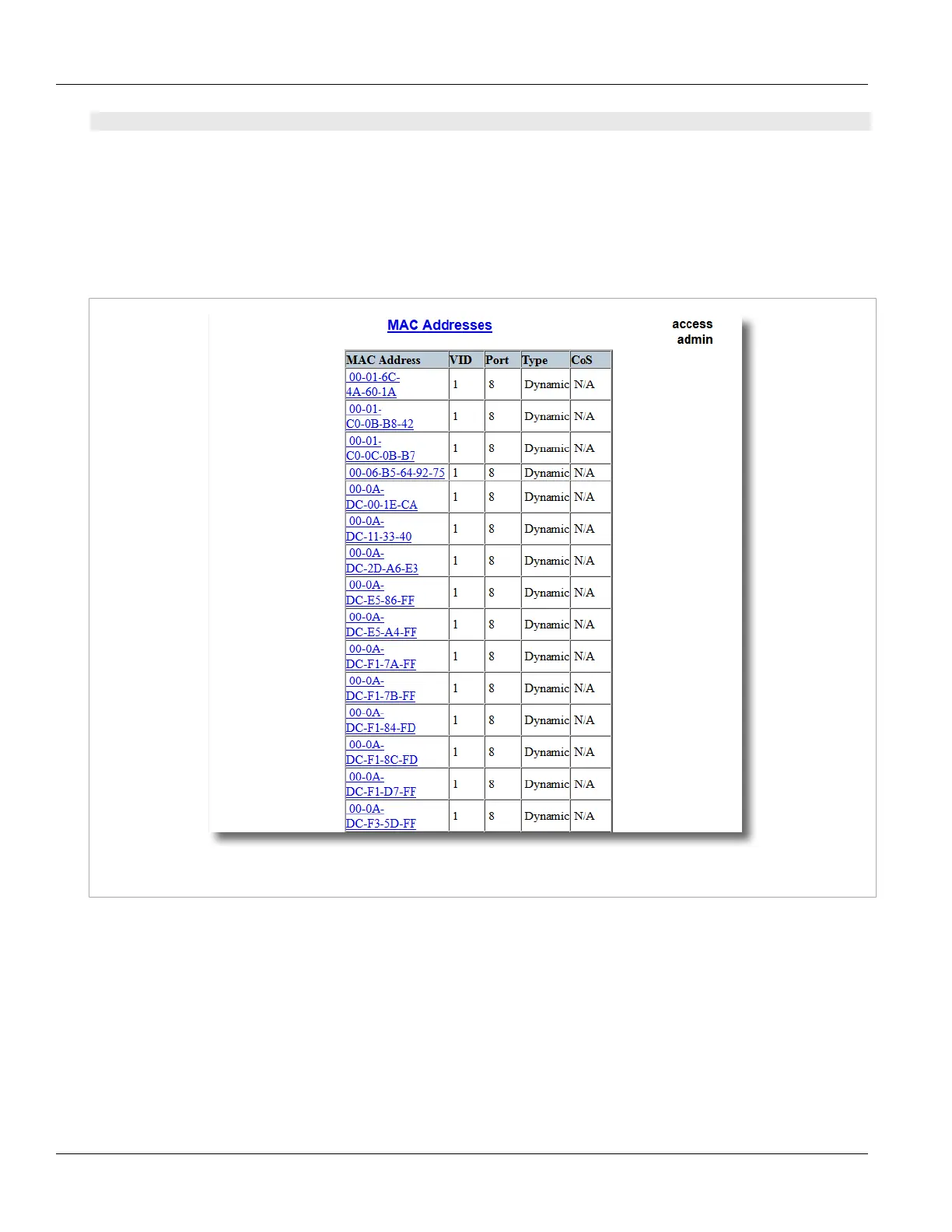

Figure114:MAC Address Table
If a MAC address is not listed, do the following:
• Configure the MAC address learning options to control the aging time of dynamically learned MAC addresses of
other devices on the network. For more information, refer to Section5.4.2, “Configuring MAC Address Learning
Options” .
• Configure the address on the device as a static MAC address. For more information, refer to Section5.4.4.2,
“Adding a Static MAC Address” .
