Chapter 5
Setup and Configuration
Deleting a Static Multicast Group 231
7
5
6
3
2
1
4

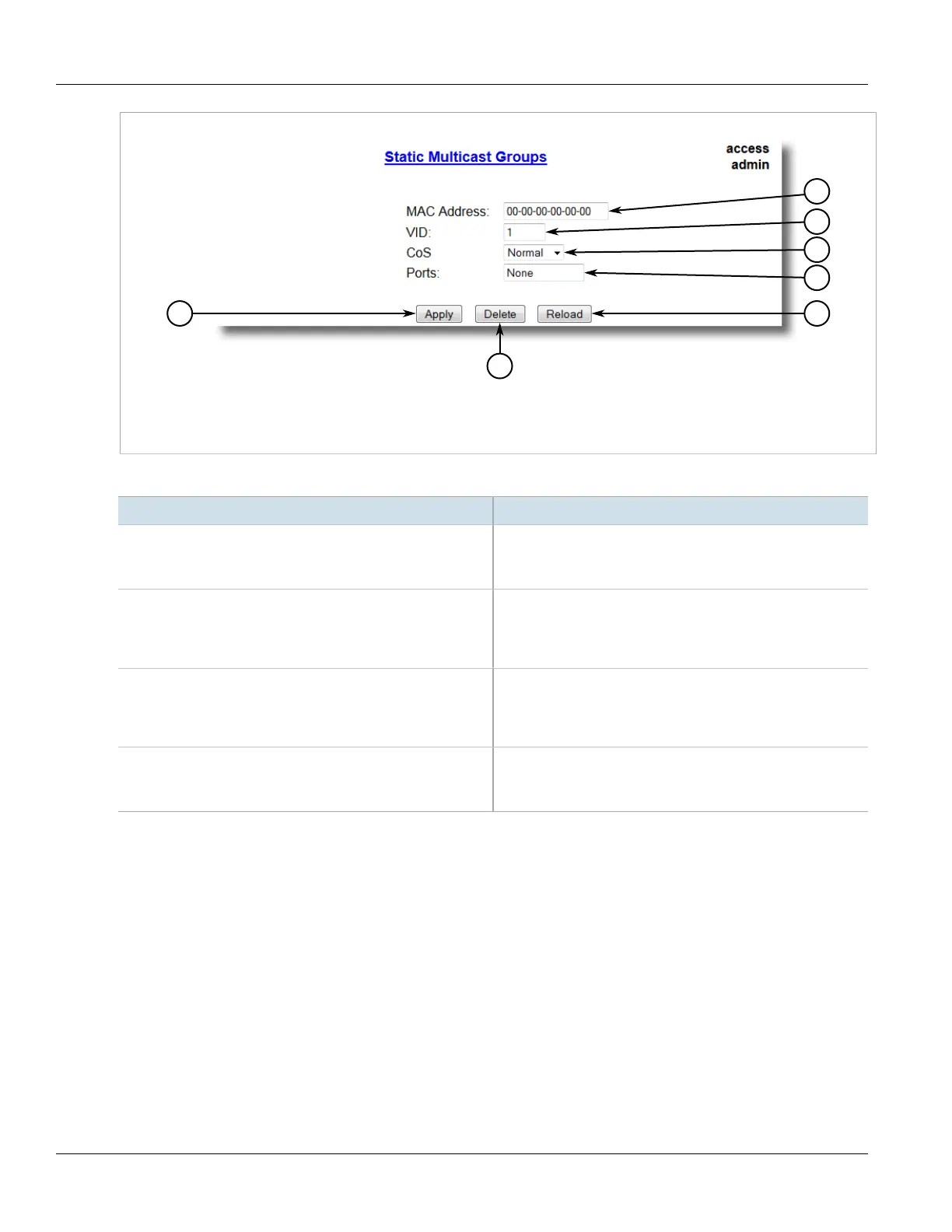

Figure162:Static Multicast Groups Form
1.MAC Address Box 2.VID Box 3.CoS List 4.Ports Box 5.Apply Button 6.Delete Button 7.Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
MAC Address Synopsis:  ##-##-##-##-##-## where ## ranges 0 to FF
Default:  00-00-00-00-00-00
Multicast group MAC address.
VID Synopsis:  1 to 4094
Default:  1
VLAN Identifier of the VLAN upon which the multicast group
operates.
CoS Synopsis:  { N/A, Normal, Medium, High, Crit }
Default:  N/A
Prioritizes traffic for the specified MAC address. To not prioritize
traffic based on the address, select N/A.
Ports Synopsis:  Any combination of numbers valid for this parameter
Default:  None
Ports to which the multicast group traffic is forwarded.
4. Click Apply.
Section5.8.2.7
Deleting a Static Multicast Group
To delete a static multicast group, do the following:
1. Navigate to Multicast Filtering» Configure Static Multicast Groups . The Static Multicast Groups table
appears.
