72 Configuring an Ethernet Port
Section3.6.6
Configuring an Ethernet Port
To configure an Ethernet port, do the following:

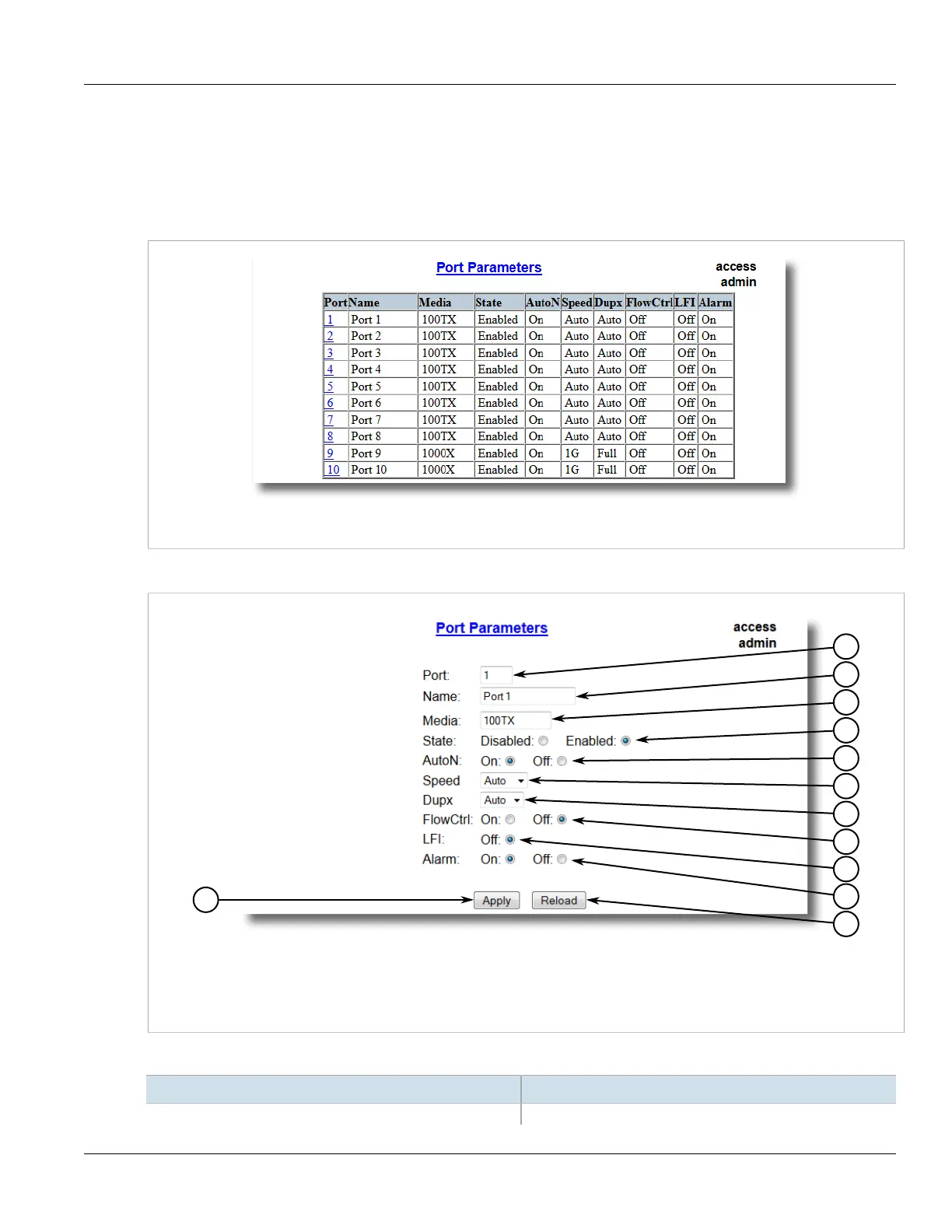

1. Navigate to Ethernet Ports» Configure Port Parameters . The Port Parameters table appears.
Figure25:Port Parameters Table
2. Select an Ethernet port. The Port Parameters form appears.
7
11
6
5
4
3
2
1
8
12
9
10
Figure26:Port Parameters Form
1.Port Box 2.Name Box 3.Media Box 4.State Box 5.AutoN Box 6.Speed Box 7.Dupx Box 8.FlowCtrl Box 9.LFI
Box 10.Alarm Box 11.Apply Button 12.Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
Port Synopsis:  1 to maximum port number
