RUGGEDCOM ROS
User Guide
Chapter 5
Setup and Configuration
Link Aggregation and Physical Layer Features 243
Section5.10.1.3
Link Aggregation and Physical Layer Features
Physical layer features (e.g. physical link configuration, link status, rate limiting, Ethernet statistics) will still treat
each aggregated port separately.
• Physical configuration/status parameters will NOT be automatically applied to other ports in the trunk and will
be displayed for each port as usual.
• Make sure that only ports with the same speed and duplex settings are aggregated. If auto-negotiation is used,
make sure it is resolved to the same speed for all ports in the port trunk.
• To get a value of an Ethernet statistics counter for the port trunk, add the values of the counters for all ports in
the port trunk.
Section5.10.2
Managing Port Trunks
The following section describes how to configure and manage port trunks.
CONTENTS
• Section5.10.2.1, “Viewing a List of Port Trunks”
• Section5.10.2.2, “Adding a Port Trunk”
• Section5.10.2.3, “Deleting a Port Trunk”
Section5.10.2.1
Viewing a List of Port Trunks
To view a list of port trunks configured on the device, navigate to Link Aggregation» Configure Port Trunks .
The Port Trunks table appears.

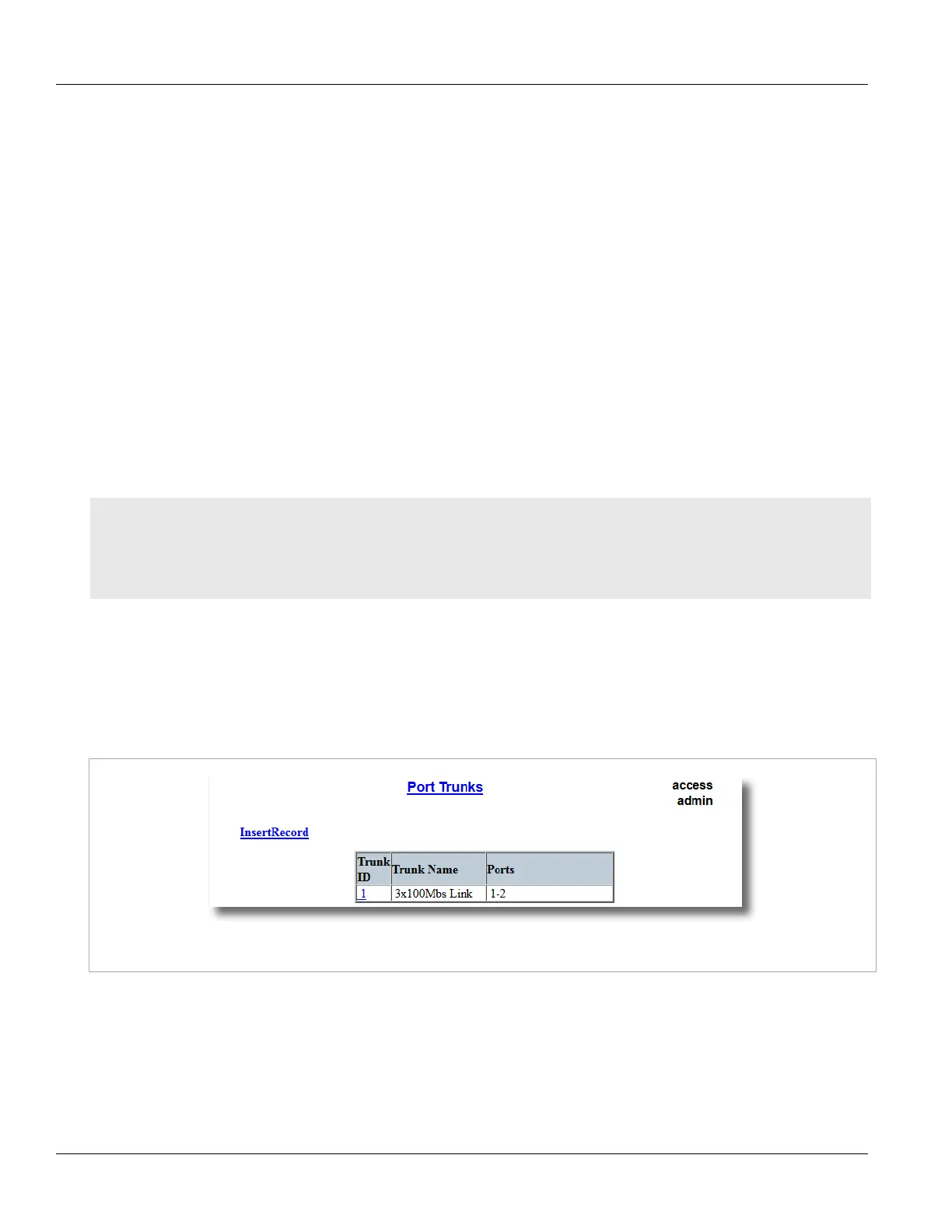

Figure172:Port Trunks Table
If port trunks have not been configured, add trunks as needed. For more information, refer to Section5.10.2.2,
“Adding a Port Trunk” .
