Viewing Global Statistics and Advertised System
Information
3
2
1

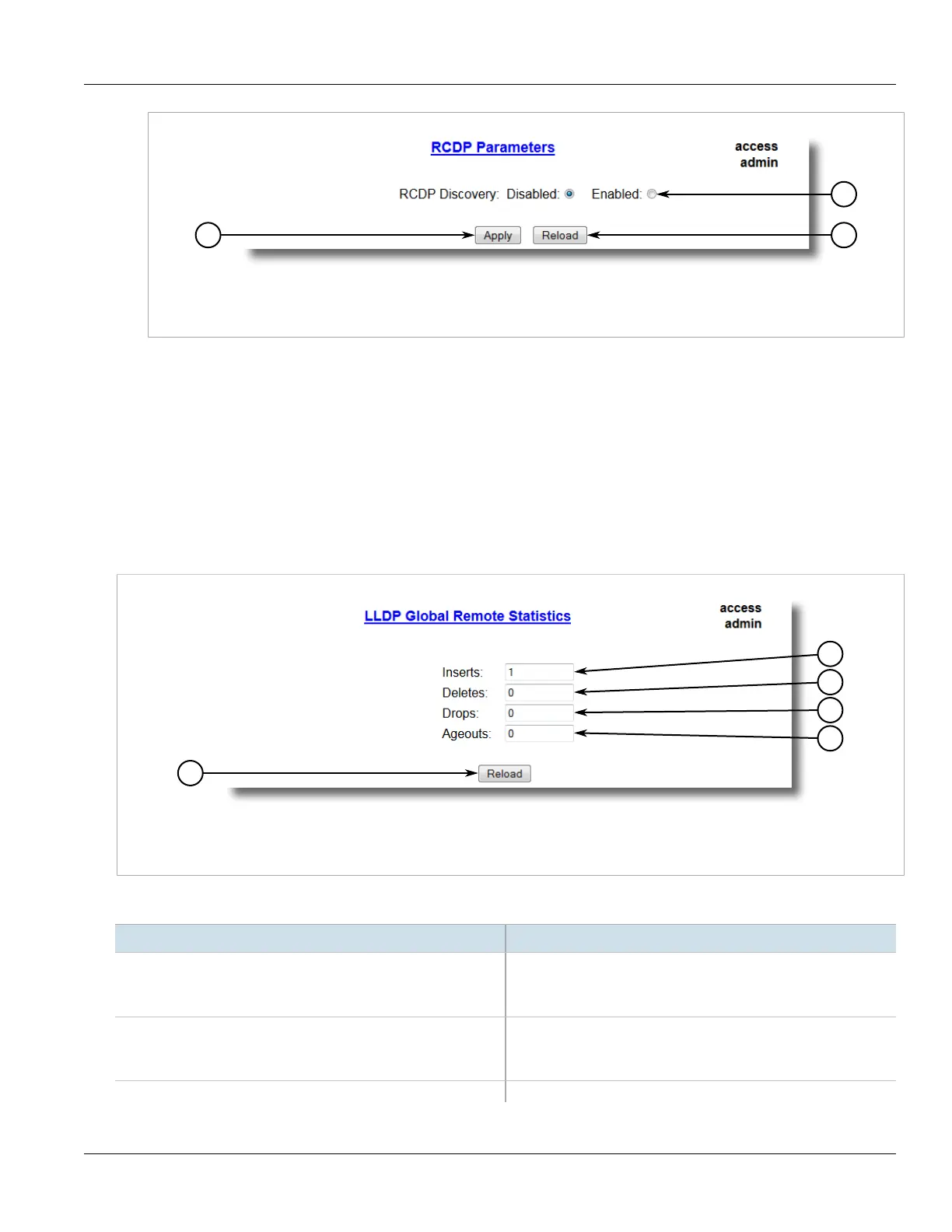

Figure146:RCDP Parameters Form
1.RCDP Discovery Options 2.Apply Button 3.Reload Button
2. Select Enabled to enable RCDP, or select Disabled to disable RCDP.
3. Click Apply.
Section5.7.5
Viewing Global Statistics and Advertised System Information
To view global statistics for LLDP and the system information that is advertised to neighbors, navigate to Network
Discovery» Link Layer Discovery Protocol» View LLDP Global Remote Statistics . The LLDP Global Remote
Statistics form appears.
1
5
2
3
4
Figure147:LLDP Global Remote Statistics Form
1.Inserts Box 2.Deletes Box 3.Drops Box 4.Ageouts Box 5.Reload Button
This form displays the following information:
Parameter Description
Inserts Synopsis:  0 to 4294967295
A number of times the entry in LLDP Neighbor Information Table was
inserted.
Deletes Synopsis:  0 to 4294967295
A number of times the entry in LLDP Neighbor Information Table was
deleted.
Drops Synopsis:  0 to 4294967295
