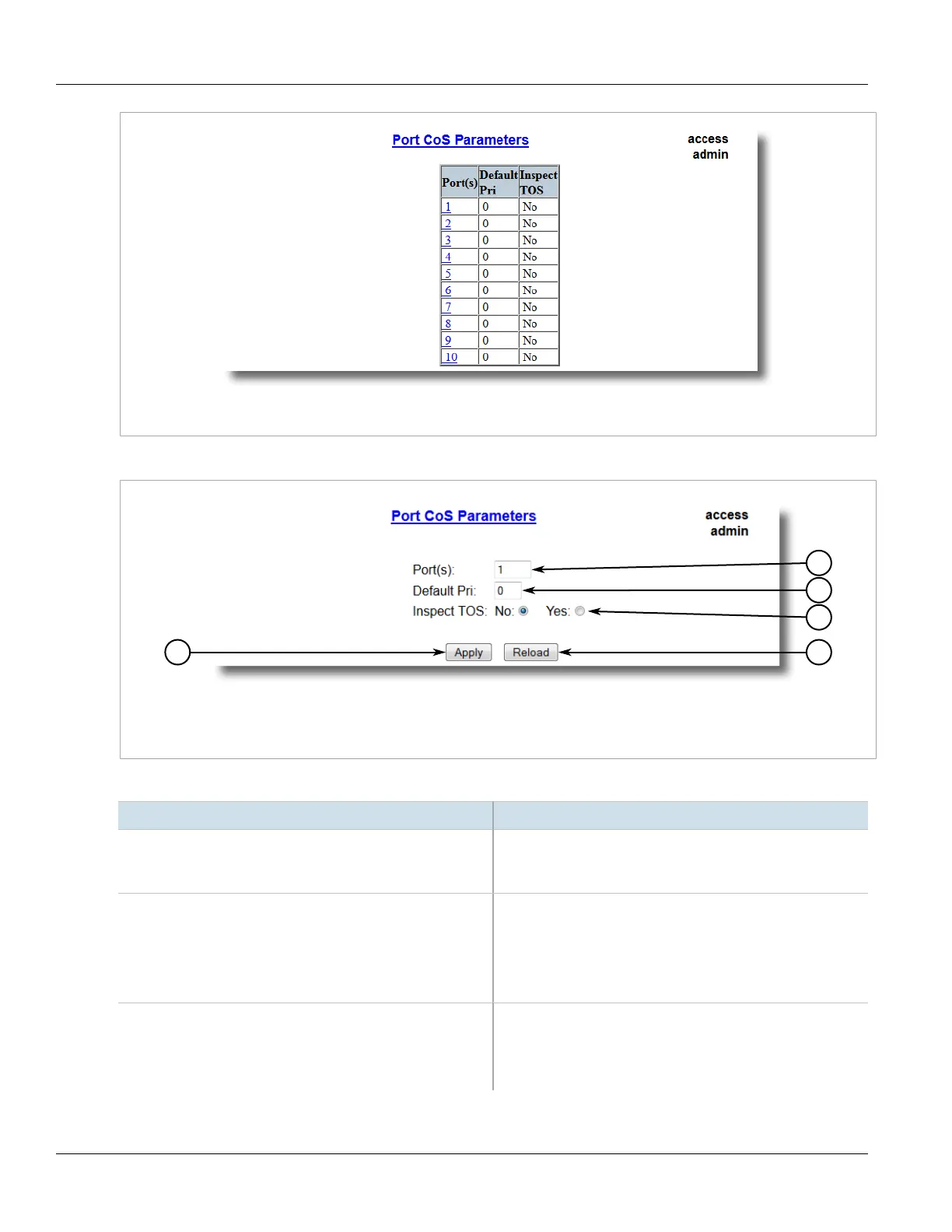

Figure108:Port CoS Parameters Table
2. Select an Ethernet port. The Port CoS Parameters form appears.
Figure109:Port CoS Parameters Form
1.Port(s) Box 2.Default Pri Box 3.Inspect TOS Options 4.Apply Button 5.Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
Port(s) Synopsis:  Any combination of numbers valid for this parameter
The port number as seen on the front plate silkscreen of the
switch (or a list of ports, if aggregated in a port trunk).
Default Pri Synopsis:  0 to 7
Default:  0
This parameter allows to prioritize frames received on this port
that are not prioritized based on the frames contents (e.g. priority
field in the VLAN tag, DiffServ field in the IP header, prioritized
MAC address).
Inspect TOS Synopsis:  { No, Yes }
Default:  No
This parameters enables or disables parsing of the Type-Of-Service
(TOS) field in the IP header of the received frames to determine
what Class of Service they should be assigned. When TOS parsing
To Next Page
