Adding a Static MAC Address 191

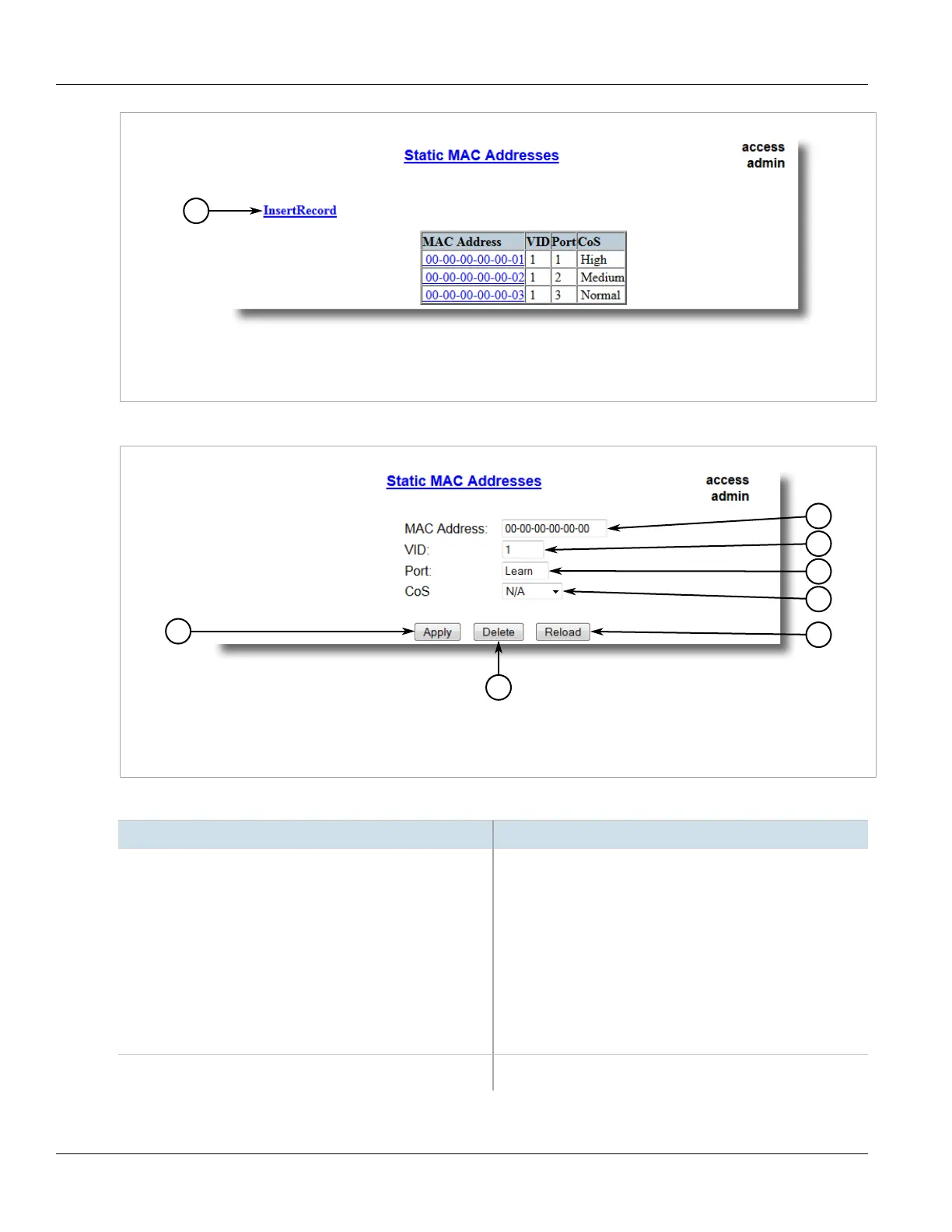

Figure119:Static MAC Addresses Table
1.InsertRecord
2. Click InsertRecord. The Static MAC Addresses form appears.
Figure120:Static MAC Addresses Form
1.MAC Address Box 2.VID Box 3.Port Box 4.CoS List 5.Apply Button 6.Delete Button 7.Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
MAC Address Synopsis:  ##-##-##-##-##-## where ## ranges 0 to FF
A MAC address learned by the switch.
Maximum of 6 wildcard characters may be used to specify a range
of MAC addresses allowed to be learned by the Port Security
module (when Port Security is set to 'Static MAC' mode). Wildcard
must start from the right hand end and continuous.
Examples:
• 00-0A-DC-**-**-** means the entire MAC address space of
RuggedCom.
• 00-0A-DC-12-3*-** means the range 00-0A-DC-12-30-00 to
00-0A-DC-12-3F-FF.
VID Synopsis:  1 to 4094 or { ANY }
Default:  1
