12713020-002-2 Revision D – April 2004 SSU-2000 User’s Guide 117
Maintenance and Troubleshooting
Troubleshooting
Alarm Messages
With the exception of loss of power alarms (on main chassis and expansion unit) all
alarms are module alarms. Table A-1 lists each module with corresponding alarm
descriptions, alarm levels, status messages, and corrective action. Since a “no fault”
alarm requires no action, the “Corrective Action” category applies only to fault
messages requiring user intervention.
Event Messages
Table A-6 lists event messages categorized by module. Each section lists status
messages associated with each module and an event description of each message.

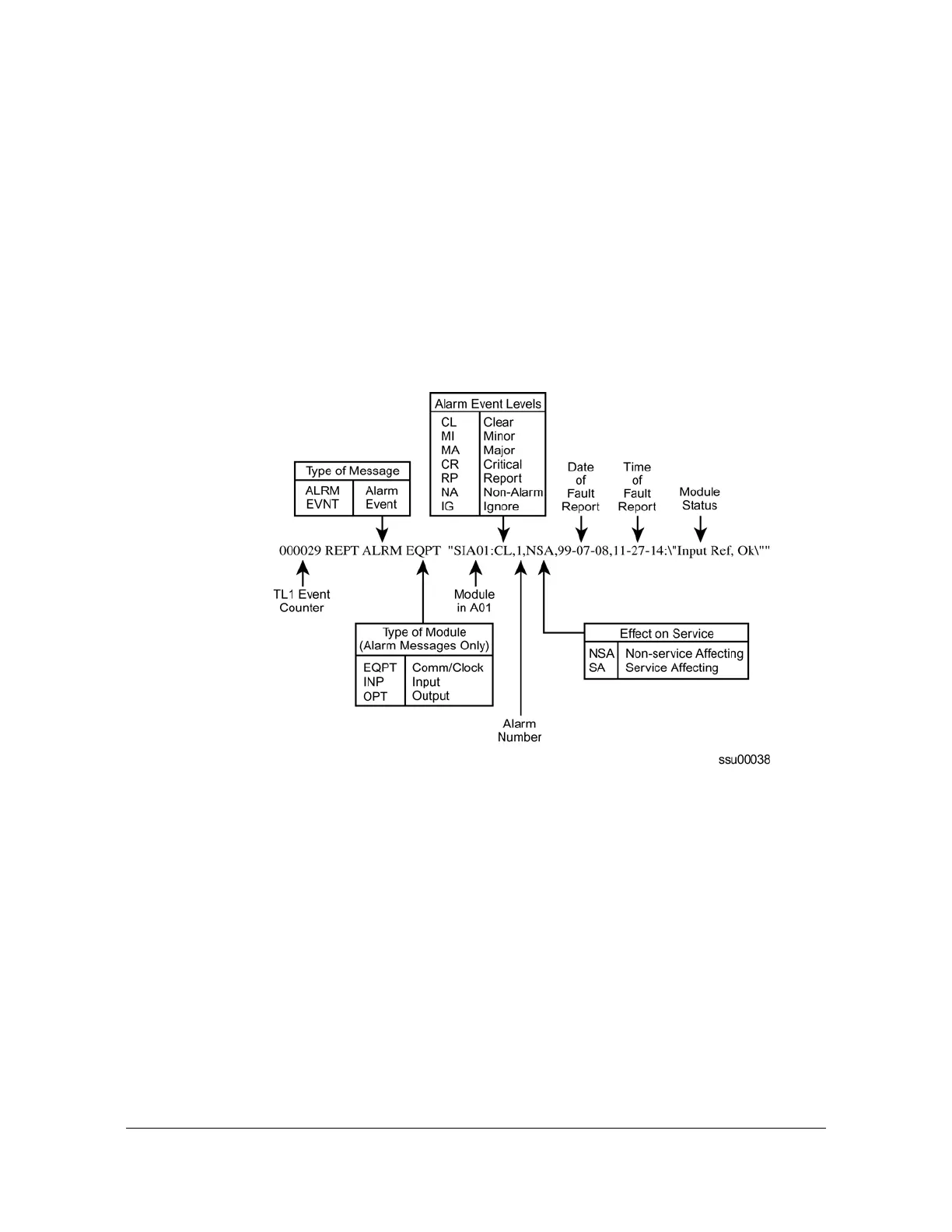

Figure 5-1 shows the structure of a typical Alarm and Event report status messages.
Figure 5-1. Alarm and Event Status Breakdown
Table 5-3 outlines troubleshooting procedures for the SSU-2000.
