Input Module Reference Data
Composite Clock Input Module
166 SSU-2000 User’s Guide 12713020-002-2 Revision D – April 2004
The module monitors and reports module status and conditions. Events are
generated for Loss of Signal (LOS) and Bipolar Violation (BPV) density. Each
module communicates with the Communications module to receive user
configuration commands and to report status and performance for the Clock
modules for frequency control.
Functional Block Diagram
A simplified block diagram of the Composite Clock Input module is shown in Figure
7-7.

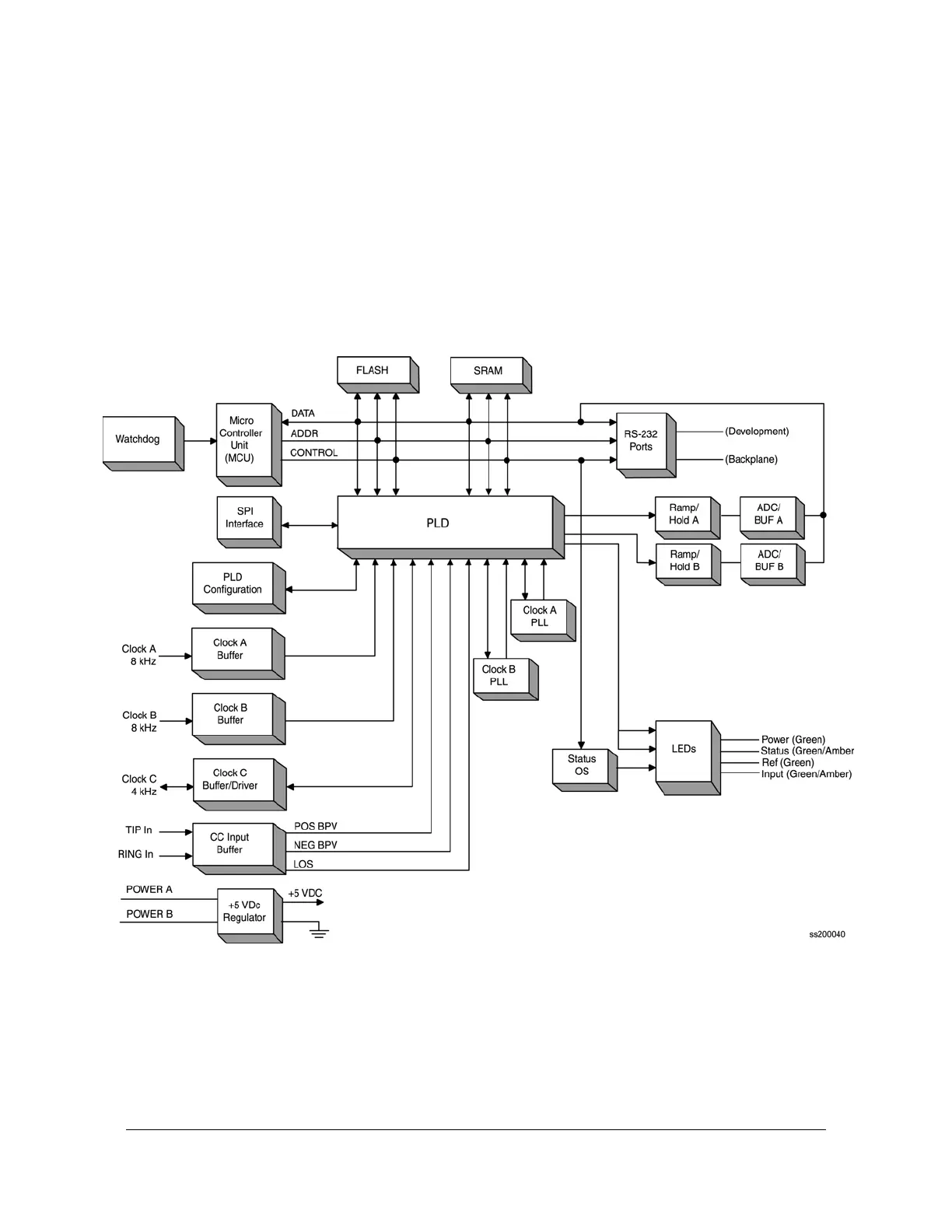

Figure 7-7. Block Diagram of the Composite Clock Input Module
