Output Module Reference Data
Output Adapter Panels
220 SSU-2000 User’s Guide 12713020-002-2 Revision D – April 2004
DE9 Output Adapter Panel
The DE9 Output Adapter panel (part number 22013067-001-0) for the DS1 and E1
Output module is shown in Figure 8-27. One Adapter panel accommodates the 20
output signals generated by one Output module. You need one Output cable (see
Adapter Accessories, on page 221, for a list of available cables) to connect the
Adapter panel to the shelf.

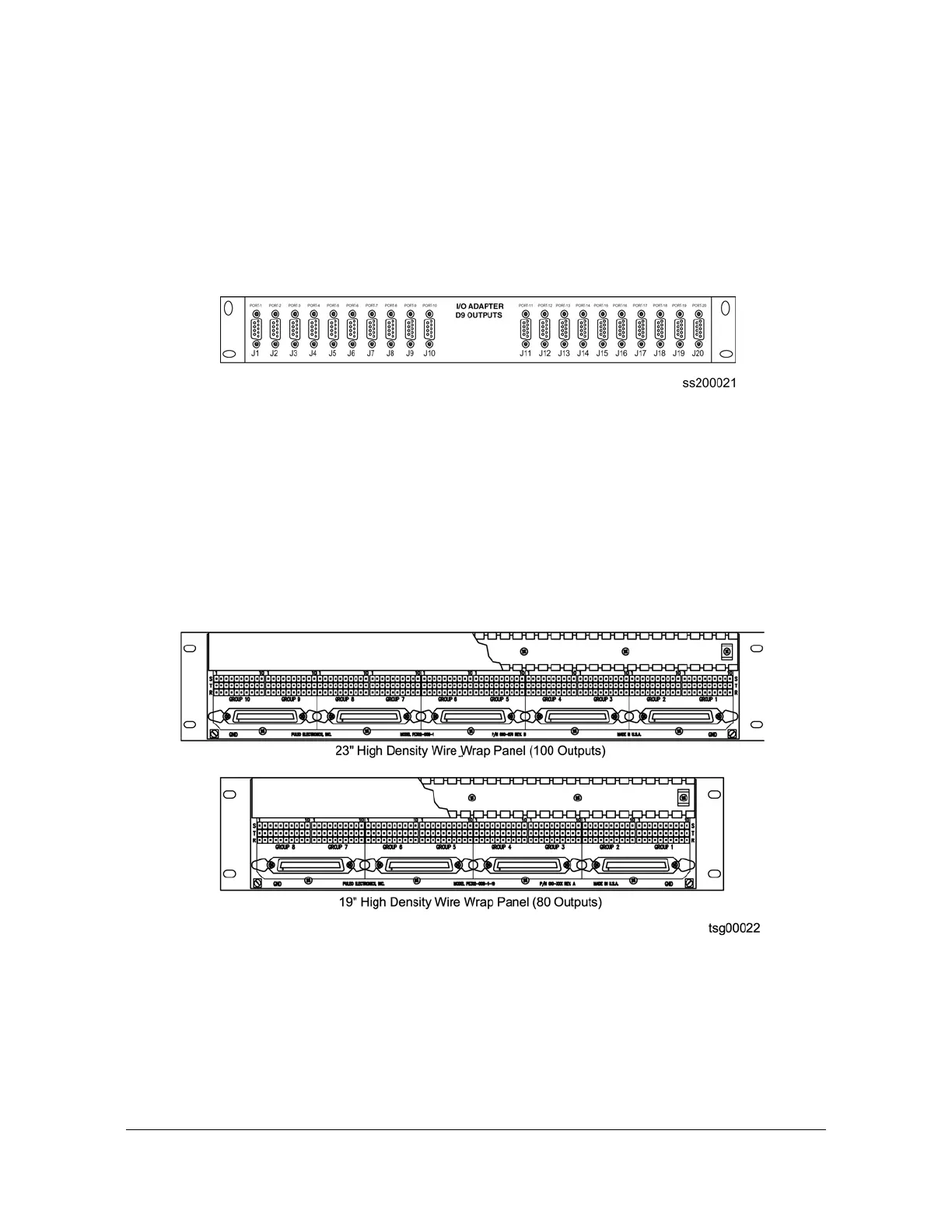

Figure 8-27. Output I/O Adapter Panel, DE9 Outputs
High-Density Wire-Wrap Output Panels
Symmetricom offers two high-density wire-wrap panels that can be used for any of
the Output modules. You need one Output cable (see Adapter Accessories, on page
221, for a list of available cables) to connect the Adapter panel to the shelf.
Figure 8-28 illustrates the two high-density wire-wrap output panels.
Figure 8-28. High-Density Wire-Wrap Output Panel
The part number for the 23-inch, 100-output wire-wrap panel is 128113171-000-0;
the part number for the 19-inch, 80-output wire-wrap panel is 12813282-000-0.
