Product Overview
Input and Output Adapter Panels
48 SSU-2000 User’s Guide 12713020-002-2 Revision D – April 2004
There are four adapter panels available for use with the SSU-2000 Input and Output
modules including:
Input I/O adapter for 3-port Input modules (DS1 or E1) – one adapter panel is
required for each 3-port Input module used in the system.
Input I/O adapter for 1-port Input modules (DS1 or E1) – one adapter panel
serves up to four 1-port Input modules.
Output I/O adapter for Output modules (75 ohm Balun Outputs)
– one adapter
panel accommodates one output module (non-redundant) or one pair of redundant
modules
.
Output I/O adapter for Output modules (D9 outputs) – one adapter panel
accommodates one Output module (non-redundant) or one pair of redundant
modules.
These adapter panels are shown in Figure 1-11 and described in greater detail in
Chapter 7, Input Module Reference Data, and Chapter 8, Output Module Reference
Data.

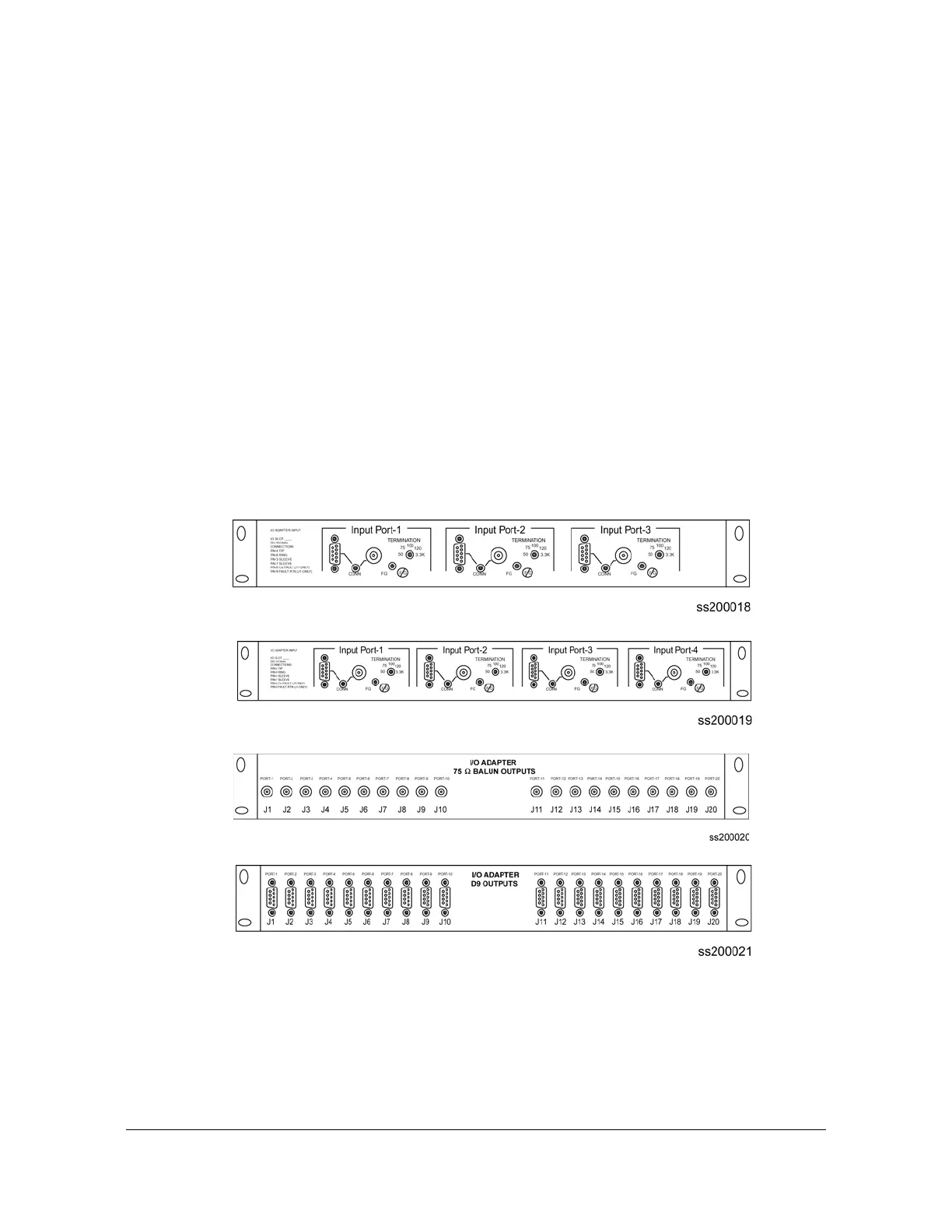

Figure 1-11. I/O Adapter Panels for Input and Output Modules
I/O Adapter for 3-Port Input Module
DE9 I/O Adapter for Output Module
75 Ohm Balun I/O Adapter for Output Module
I/O Adapter for 1-Port Input Module
