Status LED Indicators
The Communications module contains a group of eight status LED indicators that
convey visual status to the user, as shown in Figure 6-8 and described in Table 6-7.

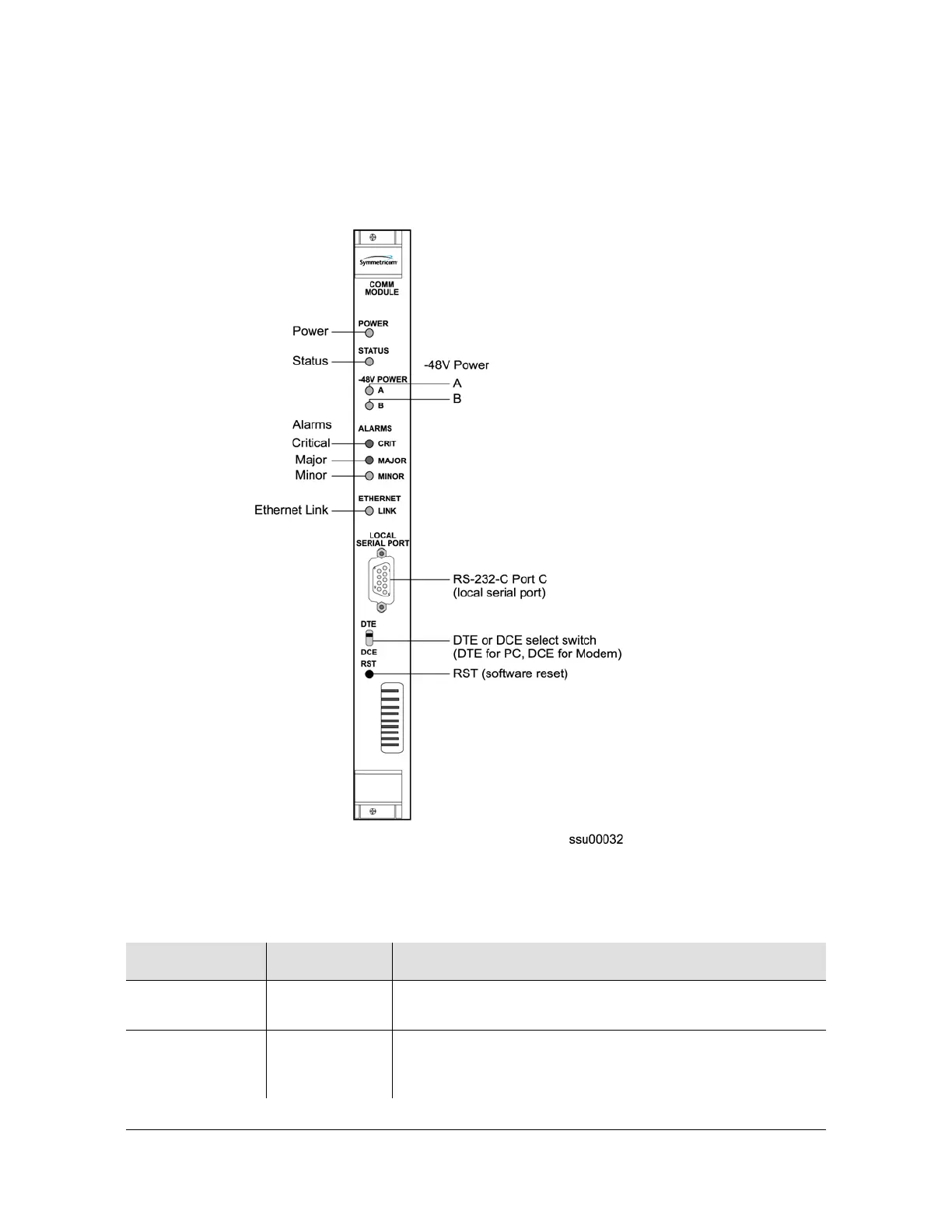

Figure 6-8. Front Panel of the Communications Module
Table 6-7. Communications Module Status LED Indicators
Indicator Color Description
Power Green On = The module is receiving power
Off = No Power Present
Status Green/Amber On (Green) = No faults detected
On (Amber) Blinking = Module is downloading firmware
On (Amber) = Module fault detected
