12713020-002-2 Revision D – April 2004 SSU-2000 User’s Guide 195
Output Module Reference Data
2048 kHz Output Module
SSU+>al 2a10
2002-12-12T10:25:31 ID: SSU2000 Name: SSU
Output # Alarm Status Level(*=Elev) Ports
------- ---- ------------------ --------------- ------------- ---------
2A10 (00) Redundant Ok Major
2A10 (01) Module Match Ok Major
2A10 (02) Clk-A Ok Major
2A10 (03) Clk-B Ok Major
2A10 (04) Clk-C Ok Major
2A10 (05) Clk-D Ok Major
2A10 (06) Clk Level Ok Major
2A10 (07) Clk Selected Ok Major
2A10 (08) VCXO Ok Major
2A10 (09) PLL Ok Major
2A10 (10) Configuration Ok Major
2A10 (11) IntPortFlt Ok Major
2A10 (13) Hdw Config Ok Major
2A10 (14) Squelch Below Prov Major 00001
SSU->
Provisioning the Squelch Parameter
To view or provision the squelch using ICS commands, see OUTPUT, on page 356.
To provision the squelch using TL1 commands, see TL1 Set Commands, on page 304.
Functional Block Diagram

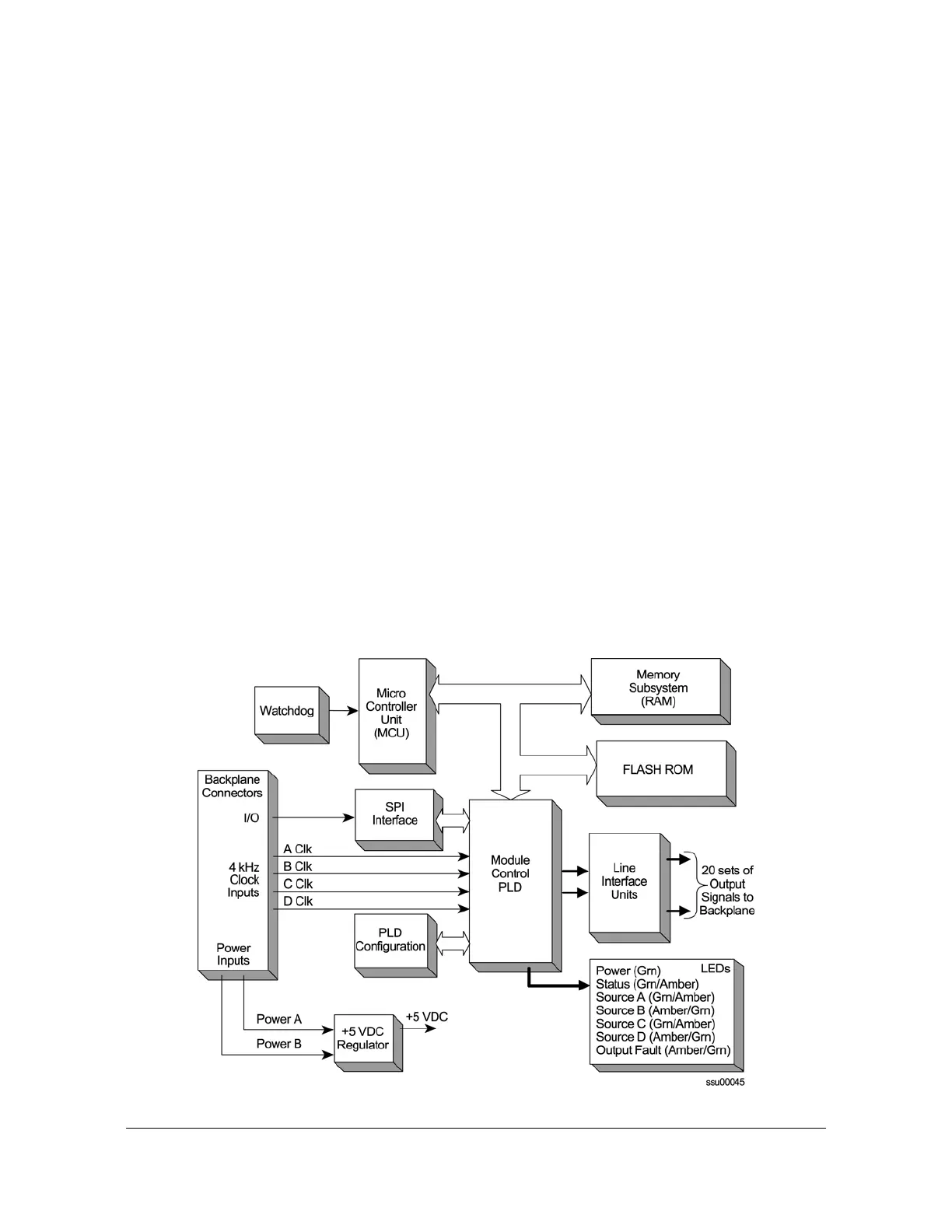

A simplified block diagram of the 2048 kHz Output module is shown in Figure 8-11.
Figure 8-11. Block Diagram of the 2048 kHz Output Module
To Next Page
