Input Module Reference Data
Input Adapter Panels
170 SSU-2000 User’s Guide 12713020-002-2 Revision D – April 2004
Switch-selected link between signal and frame ground (when a frame ground is
connected to the lug on the rear panel)
1-m SCSI connection cable is included with the Adapter
The Input I/O Adapter (part number 22013066-001-0) used with the 3-Port Input
module is shown in Figure 7-10. Each port has a switch-selected BNC and a DE9
connector, and the input termination impedance is switch-selectable between 50,
75, 100, 120, or 2.2 kΩ.

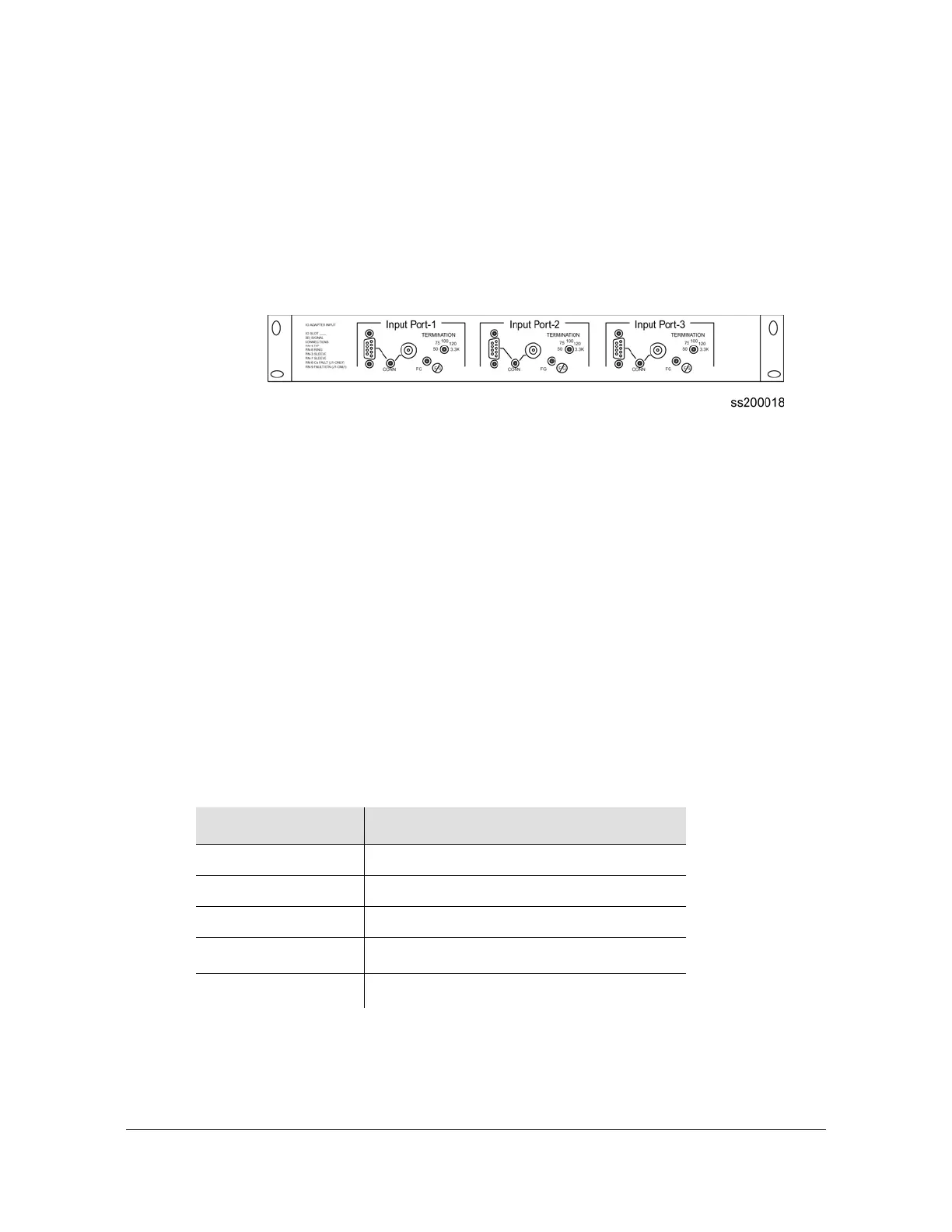

Figure 7-10. I/O Adapter for 3-Port Input Modules
The Input Adapter (part number 22013066-002-0) has a switch-selected Siemens
1.6/5.6 mm connector and a DE9 connector; the input termination impedance is
switch-selectable between 50, 75, 100, 120, or 2.2 kΩ.
The Input Adapter (part number 22013066-003-0) has a switch-selected Siemens
1.0/2.3 mm connector and a DE9 connector; the input termination impedance is
switch-selectable between 50, 75, 100, 120, or 2.2 kΩ.
The rear panel of the Input adapter contains three SCSI-II type connectors that
connect to each Input module connection on the rear panel of the shelf via a
supplied 1-m input cable. A frame ground lug is supplied to connect a frame ground
connection.
The pinout for the DB9 connector is listed in Table 7-14.
Table 7-14. Pinout for the 3-Port Input Adapter
Pin Description
3Sleeve
4Tip
7Sleeve
8
Ring
1
Note:
1
When connected to J1 on the rear panel, Pin 8 is Cs Fault.
9
Flt Return
2
2
Only when connected to J1 on the rear panel.
