Output Module Reference Data
Line Retiming Unit (LRU)

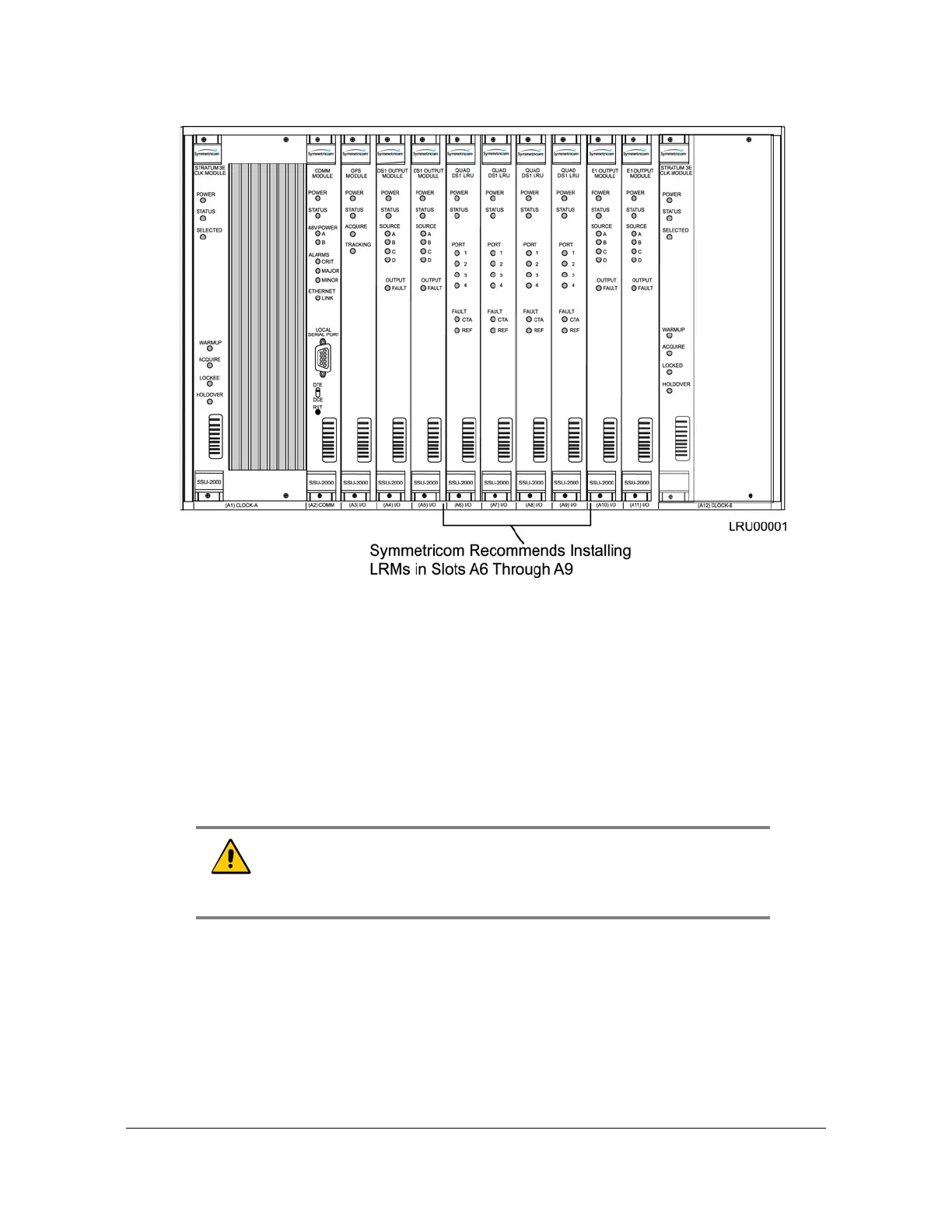

Figure 8-19. SSU-2000 Recommended Slots for LRM Installation
Use the following steps to install a Line Re-timing Module in an SSU-2000.
1. Align the module card edges with the plastic card guides of the selected slot.
2. Slide the module into the chassis until it seats fully into its rear panel edge
connector.
3. Tighten the captive screws located at the top and bottom of the module front
panel.
Caution: To avoid possible damage or intermittent failure, ensure that
you have completely inserted the module into the shelf and that you
have securely tightened the captive screws. A partially inserted
module can easily become damaged and cause intermittent failures.
