12713020-002-2 Revision D – April 2004 SSU-2000 User’s Guide 201
Output Module Reference Data
RS-422 Output Module
SSU+>al 2a10
2002-07-04T10:25:31 ID: SSU2000 Name: SSU
Output # Alarm Status Level(*=Elev) Ports
------- ---- ------------------ --------------- ------------- ---------
2A10 (00) Hdw Config Ok Major
2A10 (01) COnfiguration Ok Major
2A10 (02) Clk-A Ok Major
2A10 (03) Clk-B Ok Major
2A10 (04) Clk-C Ok Major
2A10 (05) Clk-D Ok Major
2A10 (06) Clk Selected Ok Major
2A10 (07) VCXO Ok Major
2A10 (08) PLL Ok Major
2A10 (09) PortFlt Active Ok Major
SSU->
Provisioning the Squelch Parameter
To view or provision the squelch using ICS commands, see
OUTPUT
, on page 356. To
provision the squelch using TL1 commands, see
TL1 Set Commands
, on page 304.
Functional Block Diagram

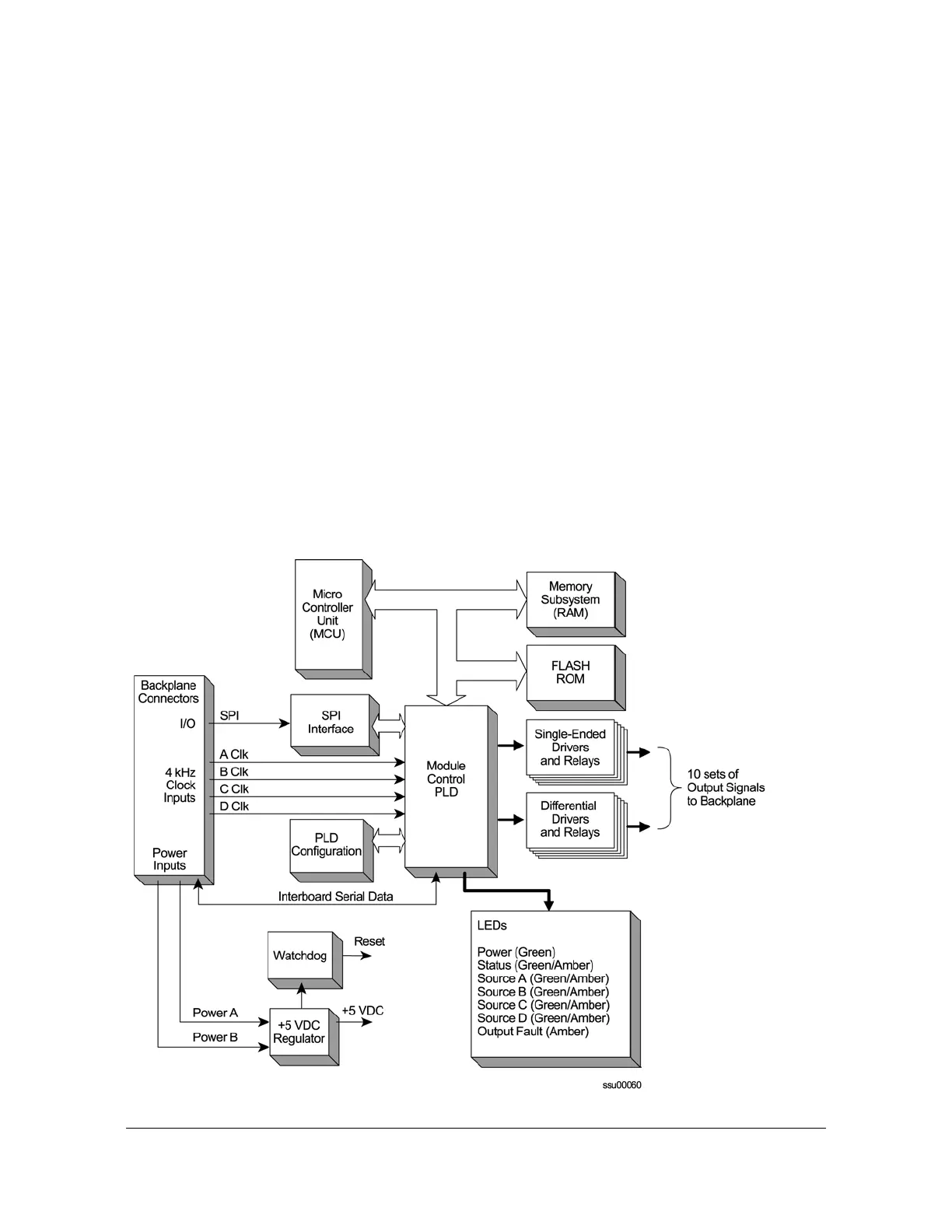

A simplified block diagram of the RS-422 Output module is shown in Figure 8-14.
Figure 8-14. Block Diagram of the RS-422 Output Module
