Installing the SSU-2000
Connecting an SDU-2000 Expansion Shelf
74 SSU-2000 User’s Guide 12713020-002-2 Revision D – April 2004

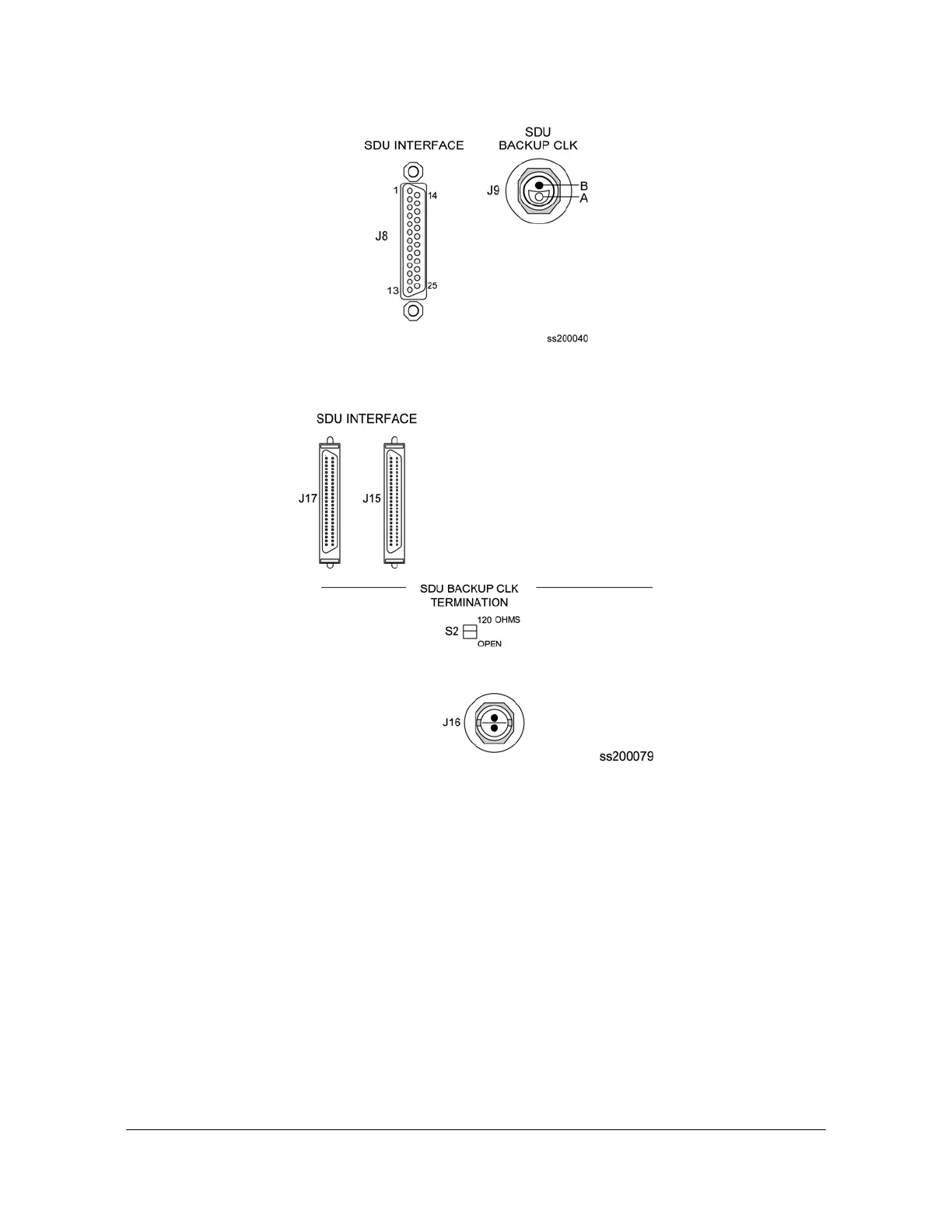

Figure 2-8. SDU Interface (J8) and Backup Clock (J9) Connectors
Figure 2-9. SDU Interface (J17 and J15) and Backup Clock (J16) Connectors
If you are not installing an SDU-2000 Expansion shelf, you must install the
Expansion Terminator on J8 on the rear panel. Figure 2-10 shows the SSU-2000
Expansion Terminator.
Install the SDU-2000 Expansion shelf using the procedure described in Rack
Mounting the SSU-2000, on page 62. Then install power and ground connections
using the procedure described in Grounding and Power Input, on page 64.
