12713020-002-2 Revision D – April 2004 SSU-2000 User’s Guide 171
Input Module Reference Data
Input Adapter Panels
Input Wire-Wrap Adapters
Symmetricom offers a range of input wire-wrap adapters for use with any of the
SSU-2000 Input modules. Table 7-15 lists the part numbers and the description for
the input wire-wrap adapters, an example of which is shown in Figure 7-11. These
adapters connect directly to the I/O ports on the rear panel of the SSU-2000 or
SDU-2000 shelf.

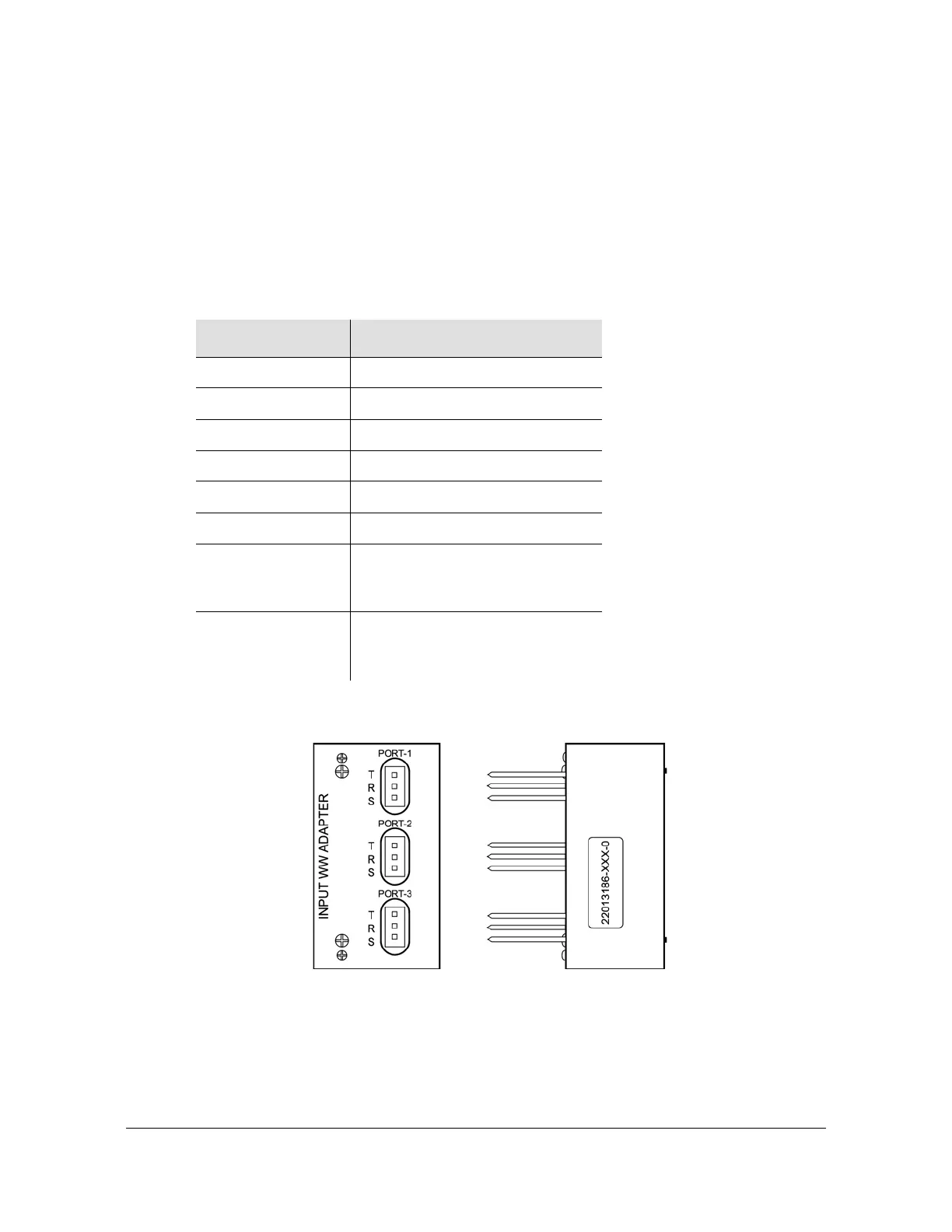

Figure 7-11. Input Wire-Wrap Adapter
Table 7-15. Input Wire-Wrap Adapters
Part Number Description
22013186-000-0 Bridging
22013186-001-0 133 Ω impedance
22013186-002-0 120 Ω impedance
22013186-003-0 100 Ω impedance
22013186-004-0 75 Ω impedance
22013186-005-0 50 Ω impedance
22013186-006-0 Port 1=110 Ω
Port 2 unused,
Port 3=100 Ω
22013186-007-0 Port 1=133 Ω
Port 2 unused,
Port 3=100 Ω
