3-2 Sysmex XP-300
Design and Function
Revised July 2012

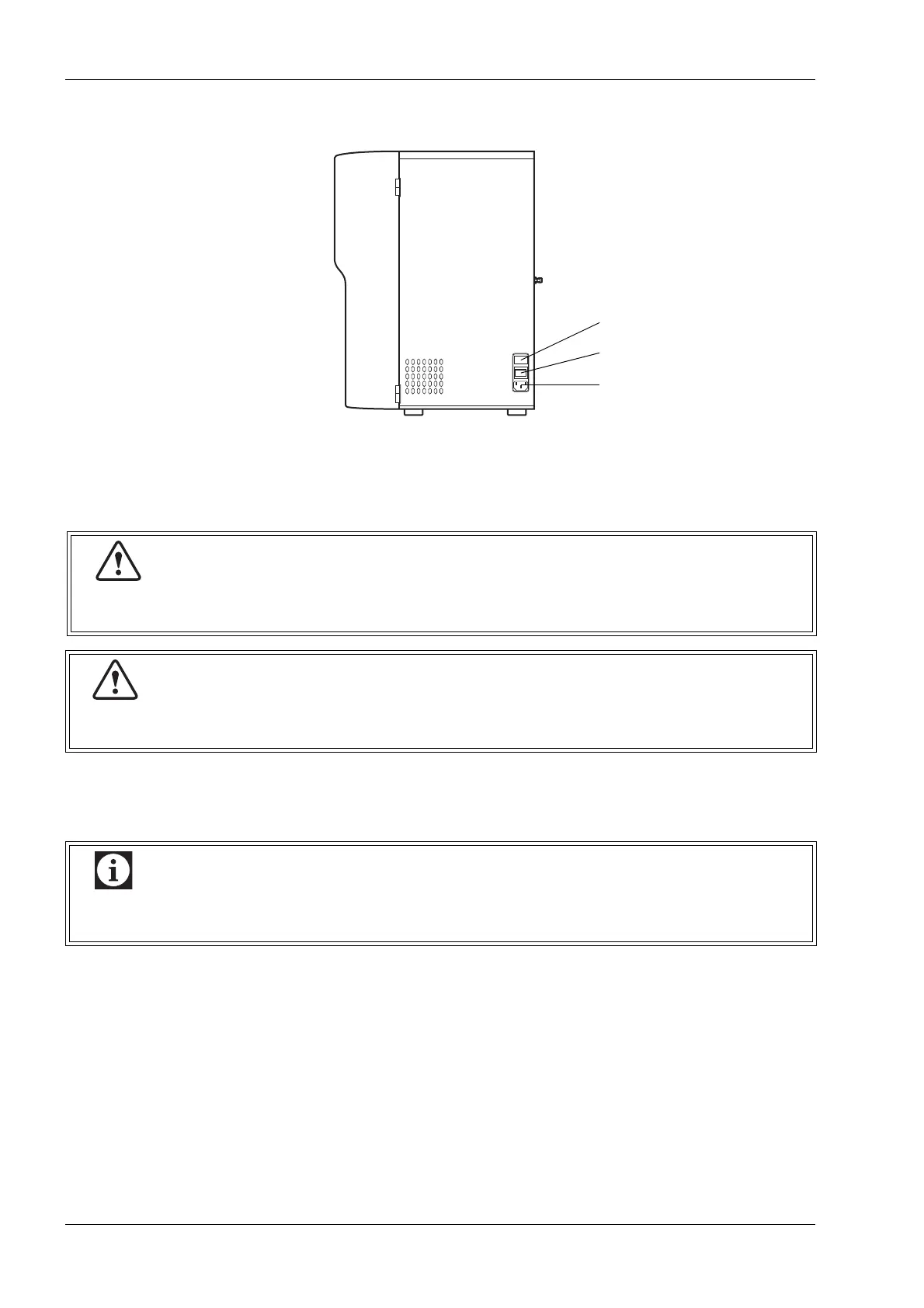

3.2 Right view
(1) System fuses
The rating will be different depending on the instrument specification and location (see the list of
provided parts in “5.2 Before installation” for details).
(2) Main power switch
Turns ON and OFF the main unit power supply.
(3) AC power supply connector
Using the provided power cord, this connector supplies power from the outlet.
(3) AC power supply connector
(2) Main power switch
(1) System fuses
Before replacing the fuse, always turn off the power and disconnect the power cord.
This is to prevent possible electric shocks.
For continued protection against risk of fire or smoke, use the fuse of the specified type and
current rating (see the list of provided parts in “5.2 Before installation”).
Avoid turning this switch ON and OFF continuously in short duration. This will overload the fuse
and may cause the fuse to blow.
