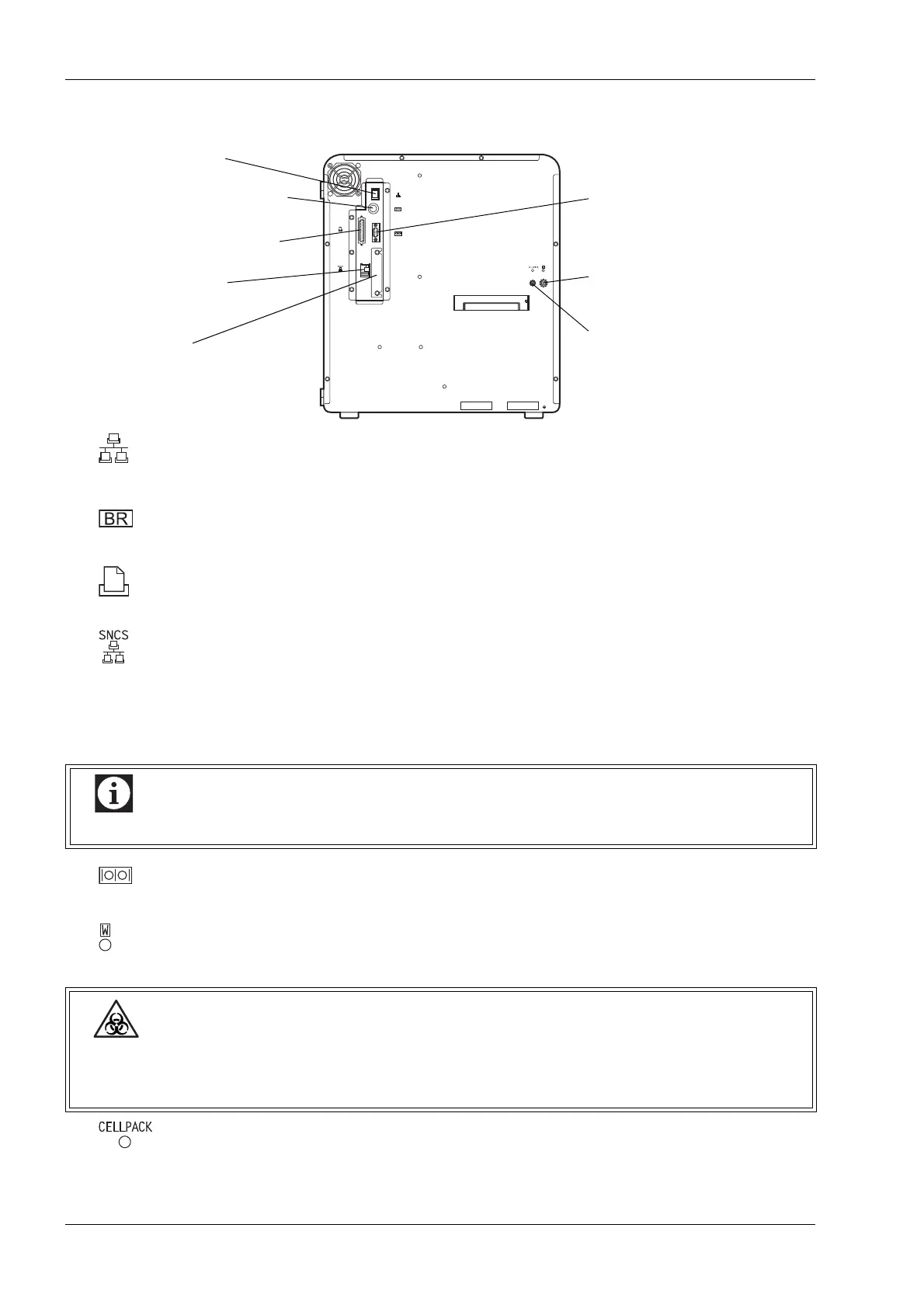

3.4 Rear side
(1) Socket for LAN
Connects an Ethernet connector (RJ45) for communication with host computer, etc.
(2) Socket for bar code reader (option)
Connects a handheld bar code reader.
(3) Socket for graphic printer (option)
Connects an optional graphic printer.
(4) Socket for LAN (SNCS service)
Connector for communicating with the Sysmex Network Communication System (SNCS) service.
(5) Card slot
Inserts a program card specified by Sysmex.
(6) Serial port
Connector for communicating with the host computer.
(7) Drain outlet nipple
This nipple drains waste. It connects with the drain sewer or waste tank.
(8) CELLPACK inlet nipple
This nipple aspirates CELLPACK. It connects with the CELLPACK container.
(1) Socket for LAN
(6) Serial port
(3) Socket for graphic printer
(option)
(7) Drain outlet nipple
(2) Socket for bar code reader
(option)
(4) Socket for LAN
(SNCS service)
(5) Card slot
(8) CELLPACK inlet nipple
Information
Use only program cards specified by Sysmex.
Risk of Infection
To avoid risks of infection, wear protective garments and gloves for all cleaning or maintenance
work. After completion of work, wash hands with disinfectant. Otherwise, there is a risk of
infection by pathogens.
