Bus setups Set up a USB serial bus
Learn how to set up a MIL-1553 Bus (see page 120)
Learn how to set up an Ethernet Bus (see page 121)
Learn how to set up a CAN Bus (see page 115)
Learn how to set up an Custom serial bus. (see page 586)
Learn how to troubleshoot a serial bus. (see page 595)
Learn how to view analog characteristics of a digital waveform. (see page 579)
Learn how to trigger on a bus. (see page 658)
Learn to view the bus packets. (see page 153)

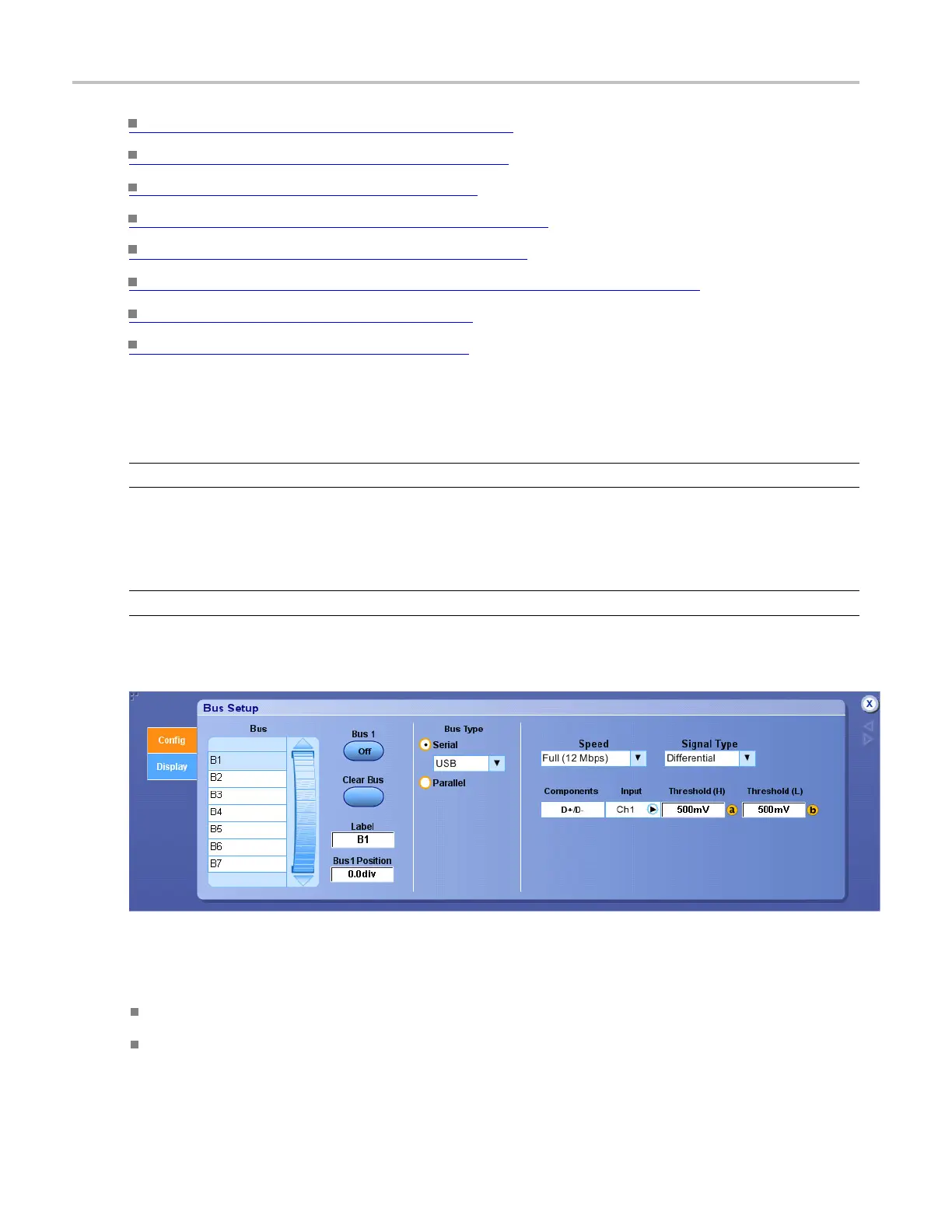

Set up a USB serial bus
NOTE. USB serial bus setup is available only on instruments with the SR-USB option.
From the Bus Setup window in the Config tab, select a bus from the Bus list and then select the USB
Serial bus type.
NOTE. The Components for t
he USB bus standard are set by the instrument.
For information on the controls, click the buttons.
To use
To change the input for a component, click the Input and select a channel from the cascading lists.
To change the voltage threshold level, click the Threshold (H) or Threshold (L) entry box and use the
keypad to enter a value or use the multipurpose knobs to select a voltage level.
106 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
