Tektronix DPO5000 Series User Manual

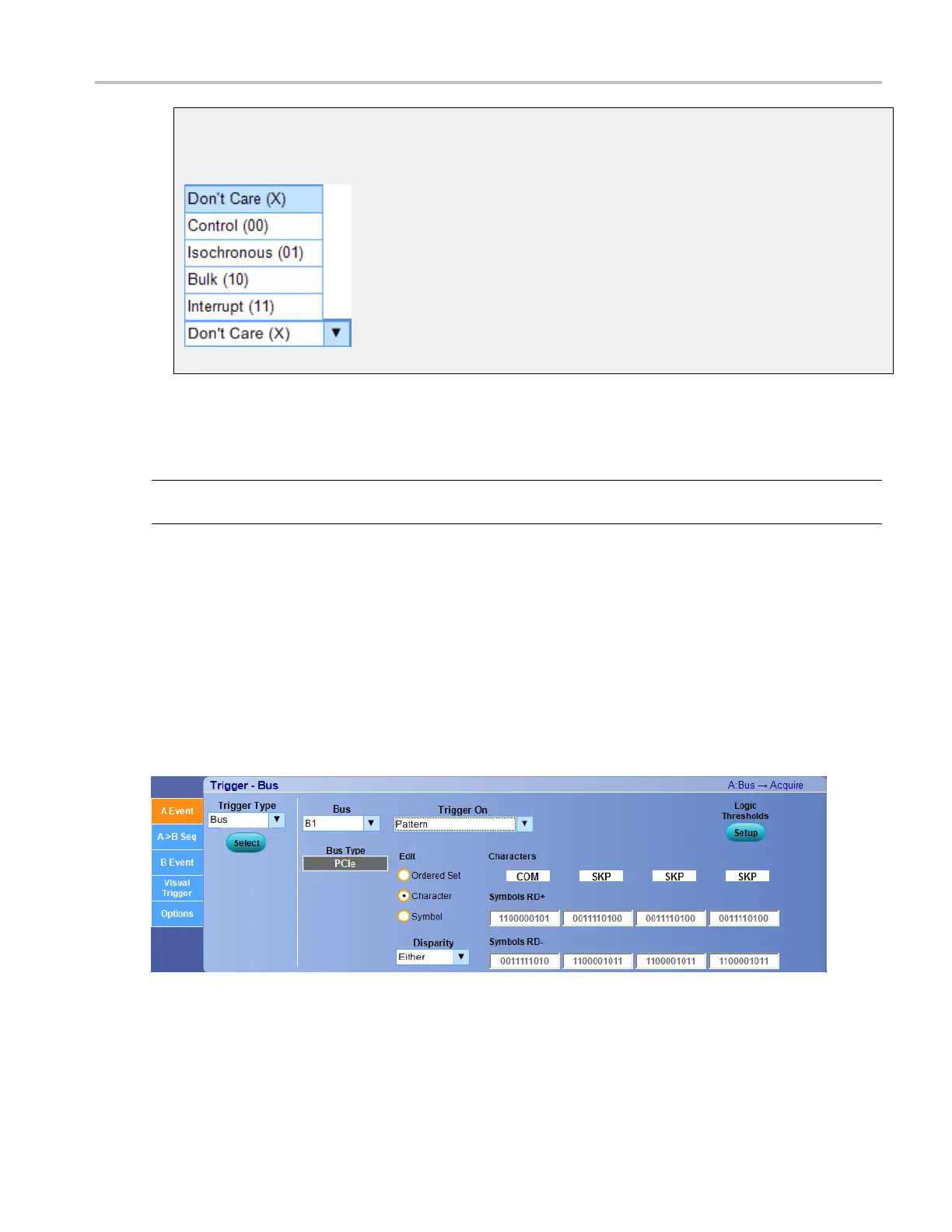

Trigger setups Set up a PCIe bus trigger
Endpoint type
The options available in Endpoint Type are as follows:
Set u p a PCIe bus trigger
NOTE. The Bus Trigger Control Window for PCIe Serial option is available only on instruments with
option SR-PCIE.
From the Trigger menu, select Bus setup.
Overview
Use the controls to set up the PCIe Bus parameters.
To use
For information o n the controls, click the buttons.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 405
