Utilities GPIB Configuration Control Window
Overview

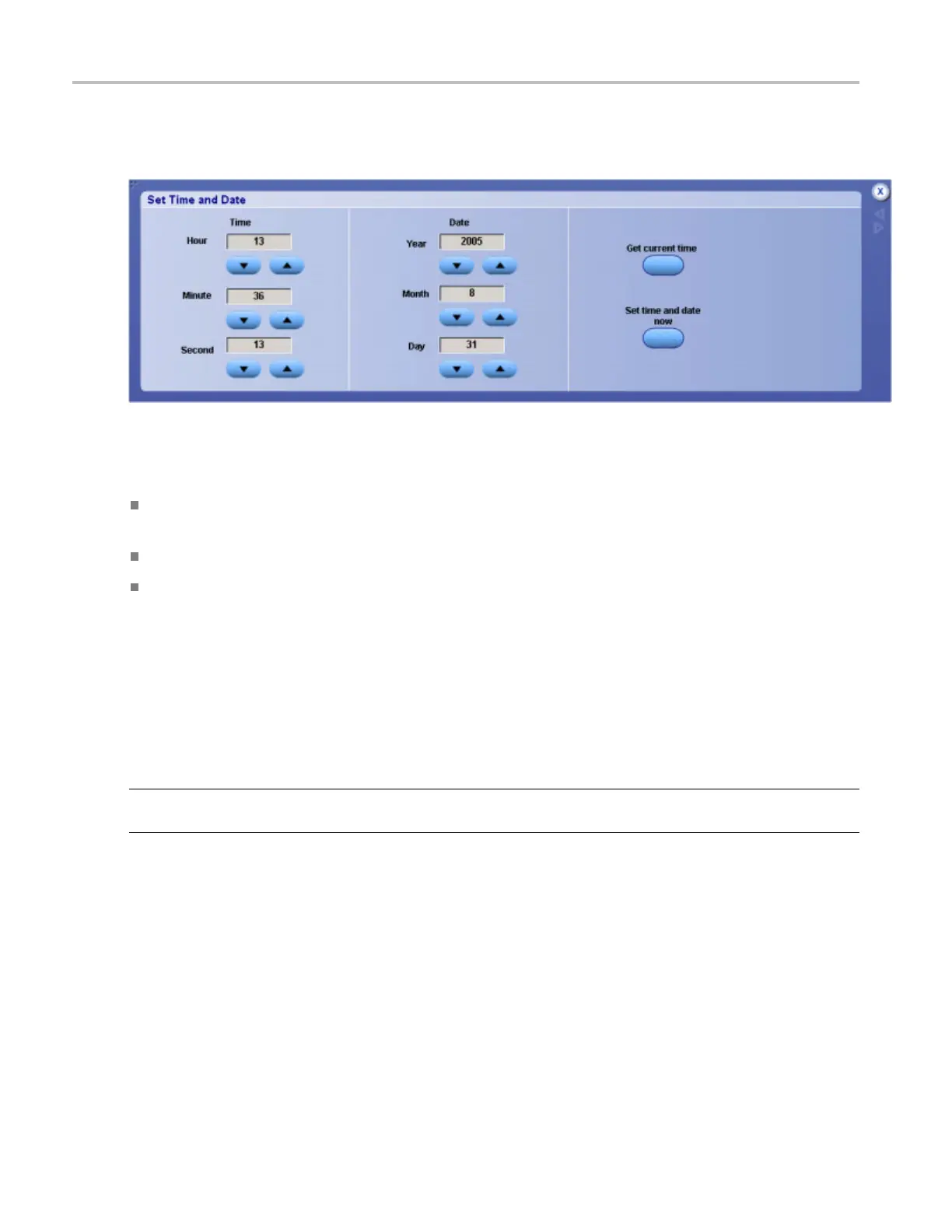

Use the Set Time and Date control window to set the time and date on the instrument.
To use
Click in the entry boxes to map them to the multipurpose k nobs, and then use the knobs to set the
time and date.
Click the Set time and date now button to save your changes.
You can also click Get current time to set the time using the system clock. This is useful if the
instrument clock is out of sync.
Behavior
The controls in this window operate the same as the standard Windows Date/Time Properties dialog box.
After you click Set time and date now, the system date and time are set to the specified values. These
controls are provided as a convenience so you can change the date and time without having to go to the
Windows Control Panel > Date and Time properties dialog box.
TIP. The instrument clock is suspended when this window is open. Click Get current time to resynchronize
the clock with the PC clock.
GPIB Configuration Control Window
From the Utilities menu, select GPIB Confi guration.
Overview
Use the GPIB Configuration control window to configure the instrument for GPIB (General Purpose
Interface Bus) applications.
544 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
