Trigger setups Set up a USB bus trigger
In this example, you need to set the Data Format (click the drop-down list), Number of Bytes, and
Data Value (click the Edit
(see page 939) button).
What do you want to do next?
Learn about bus setups. (see page 95)
Set up a USB bus trigger
NOTE. The Bus Trigger Control Window for USB Serial option is available only on instruments with
option SR-USB.
From the Trigger menu, select Bus setup.
Overview

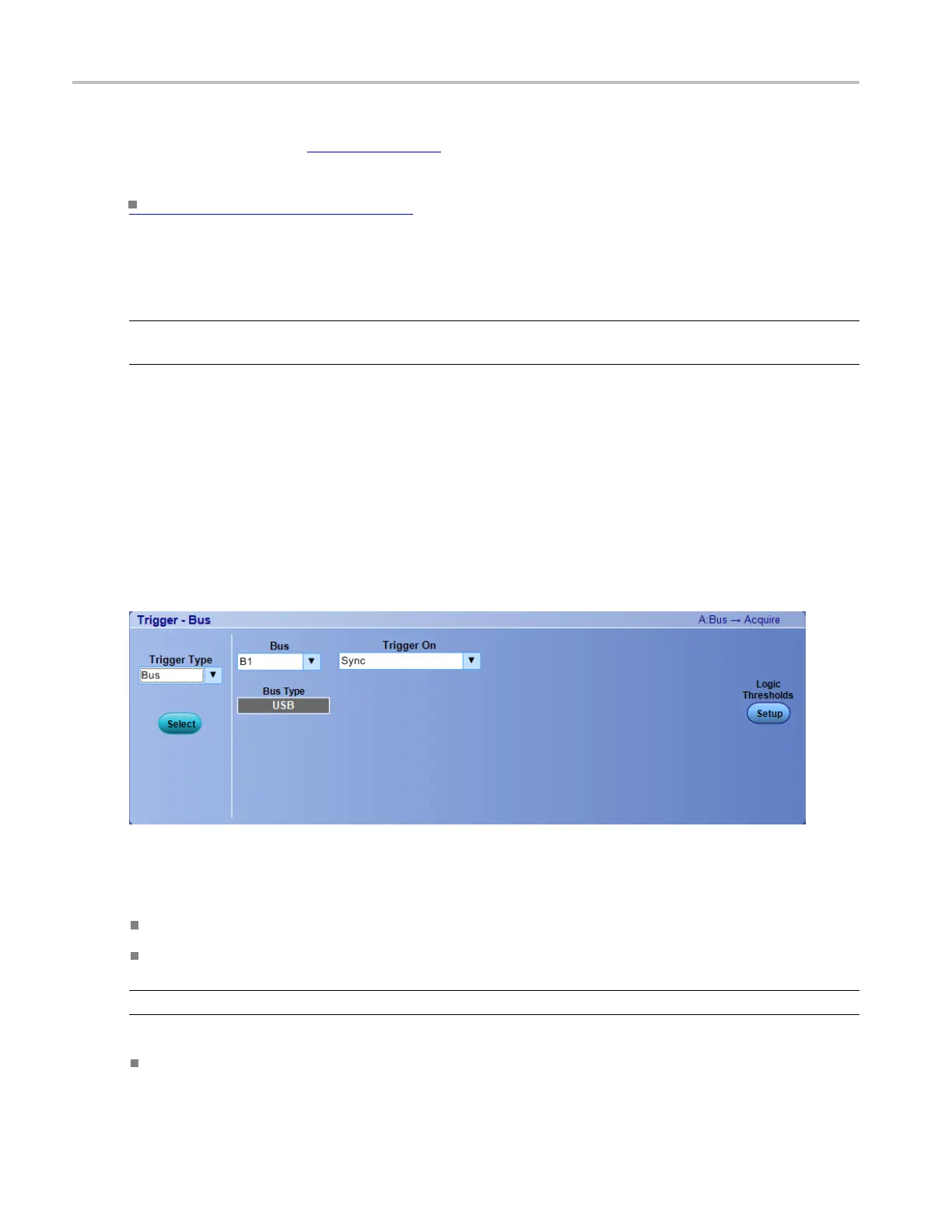

Use the controls to set up the USB Bus parameters.
To use
For information on the controls, click the buttons.
To use
Click the Trigger Type box and select Bus from the drop-down list.
Click the Bus box and select the bus number or name from the drop-down list.
NOTE. You have the option to add user-defined label for bus sources.
Click the Logic Thresholds Setup button to set the voltage threshold levels for the channels in the bus.
400 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
