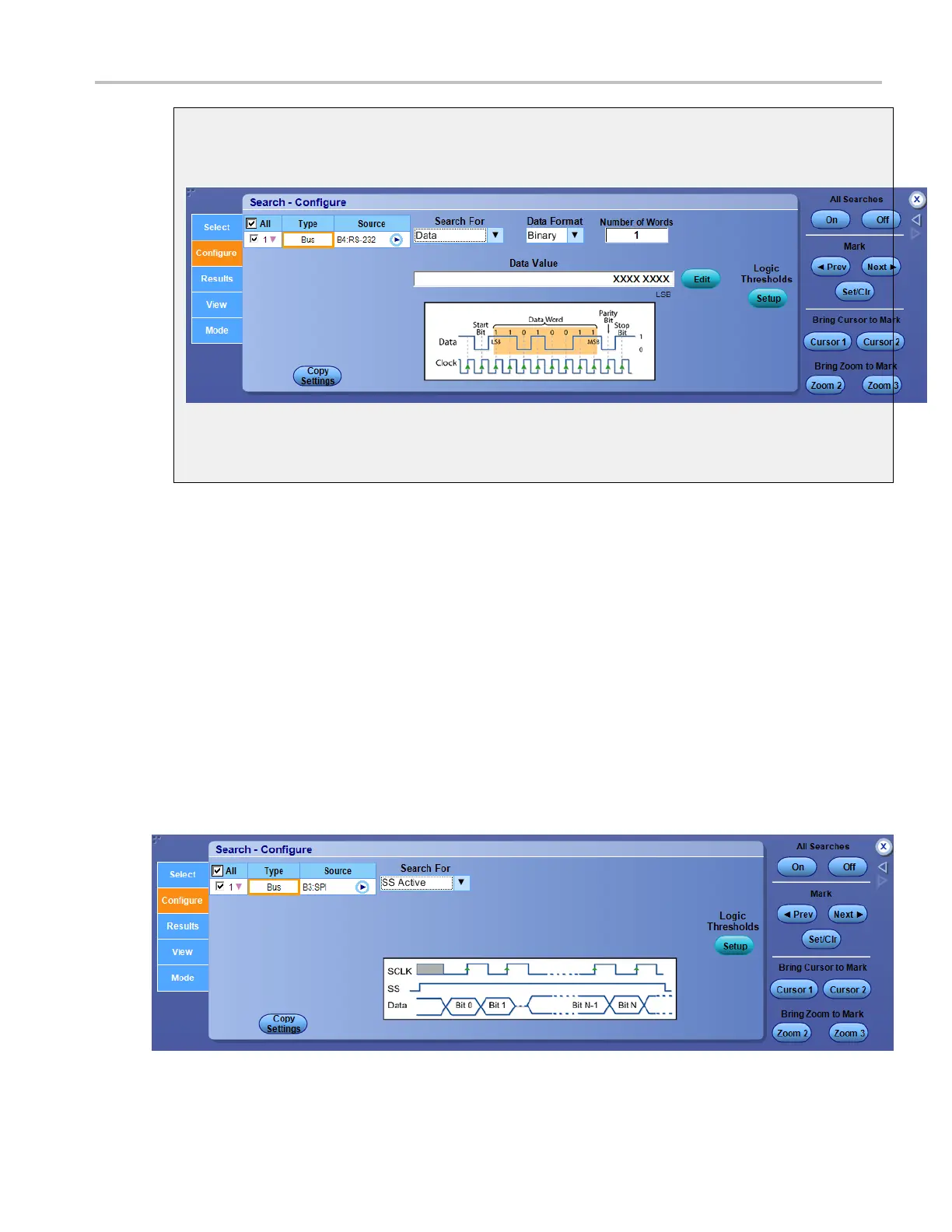

Analyzing waveforms Set up SPI search parameters
Search for data
The data type options available in Search F or Data are Number of Bytes, Data Format, and Data Value.
Select the Data Format from the drop-down list. Click Edit to enter the data value. Click Setup to
adjust the logic thresholds.
Set up SPI search parameters
After setting up an SPI bus, go to the Analyze menu, select Search, and then select the Bus trigger type;
then open the Configure tab.
Overview
Use the controls to set up the SPI Bus parameters.
To use
For information o n the controls, click the buttons.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 323
