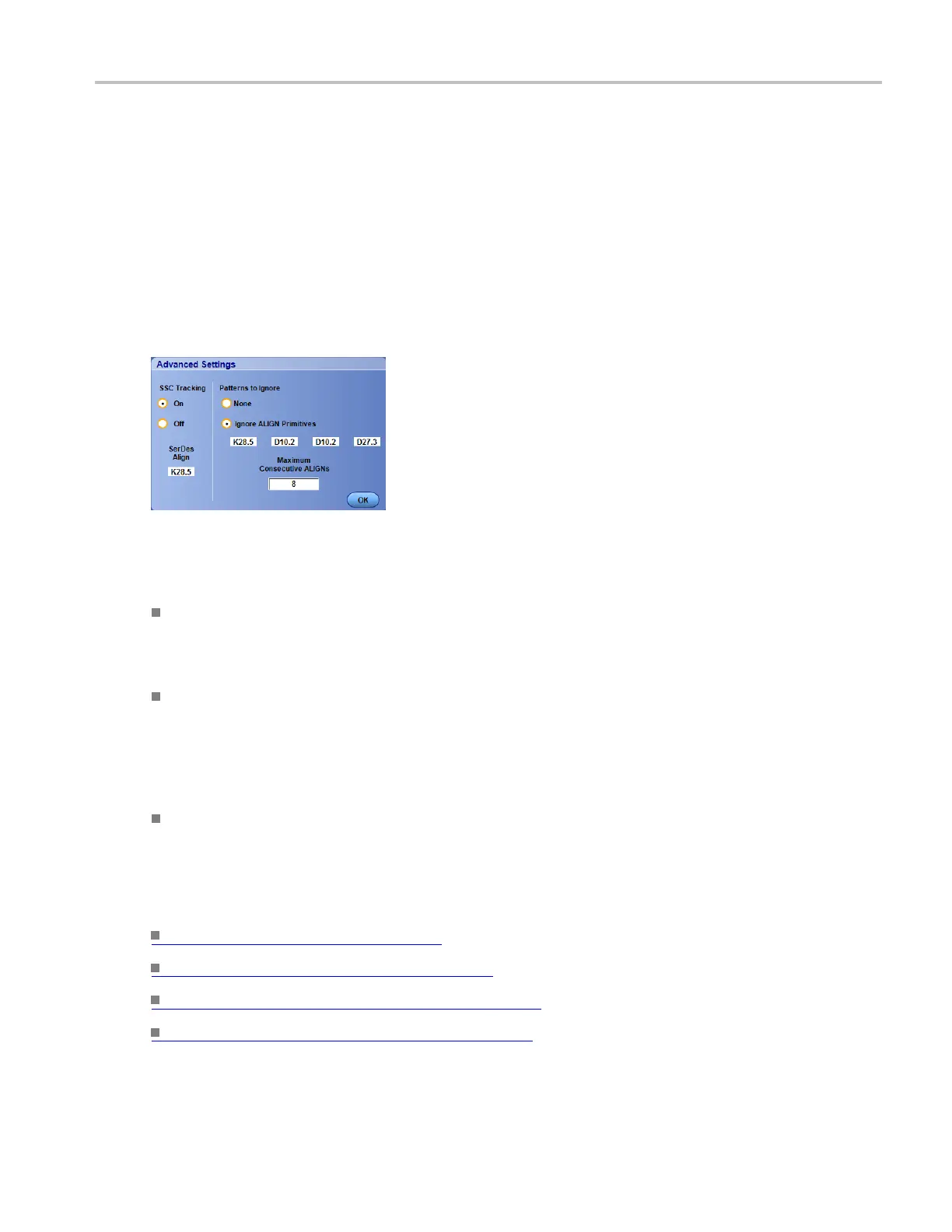

Error detector setups Set error detector a dvanced settings
Set error detector advanced settings
From the Analyze menu, select Seria l Error Detec tor, press Setup, elect the Source Setup tab, and then
press the Advanced button.
Overview
Advanced Se
ttings allow you to set the Align Primitives and enable or disable spread spectrum clock
tracking.
To use
Click On or Off to turn Spread Spectrum Clocking (SSC Tracking) on or off.
SSC is ON by default and Tektronix recommends that it should always b e ON, even if there is
no SSC on the signal.
To ignore align primitives, select the Ignore Align Primitives option button and specify the primitives
using the keypad or keyboard.
The Align Character informs the SerDes to align to 10-bit character boundaries when this character is
found in the signal. Alignment Primitives, also known as skip ordered sets, are inserted into the signal
by the DUT for purposes of pacing (keeping transmitter from overrunning the receiver).
Enter the Maximum consecutive ALIGNs using the keypad or keyboard.
The maximum consecutive aligns is a design parameter of the particular DUT that indicates how
many consecutive aligns are allowed.
What do you want to do next?
Use the Error Detector. (see page 199)
Set up the serial error detector. (see page 200)
Specify the error detector test pattern. (see page 204)
Set the error detector stop condition. (see page 205)
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 203
