Bus setups Select the serial bus input

Select the serial bus input

From the Bus Setup window, select Serial from the Bus Type list and then select from the cascading list.

To use

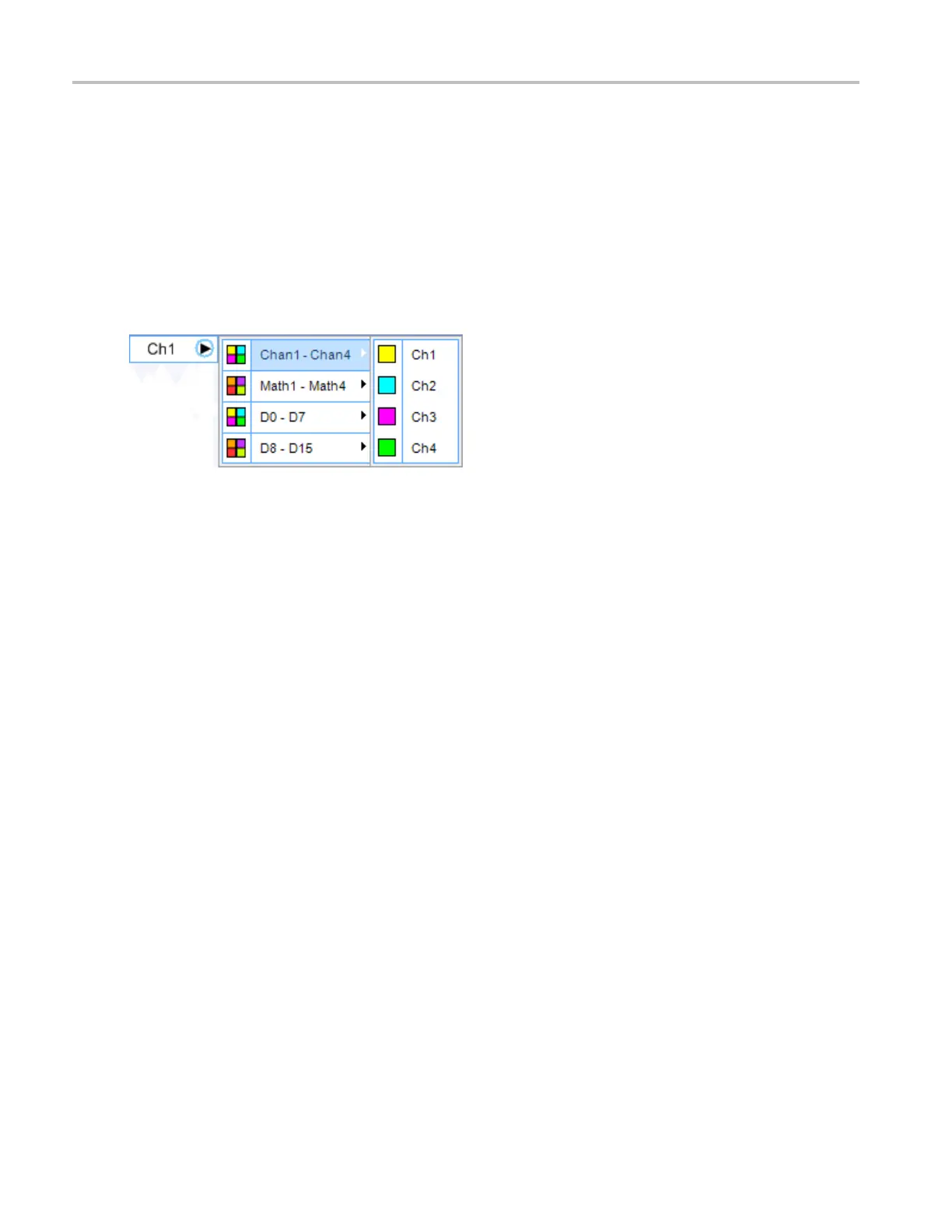

To change the input for the displayed components of the bus, click the Input and select from the cascading

list.
