Bus setups Set the SPI bus idle time

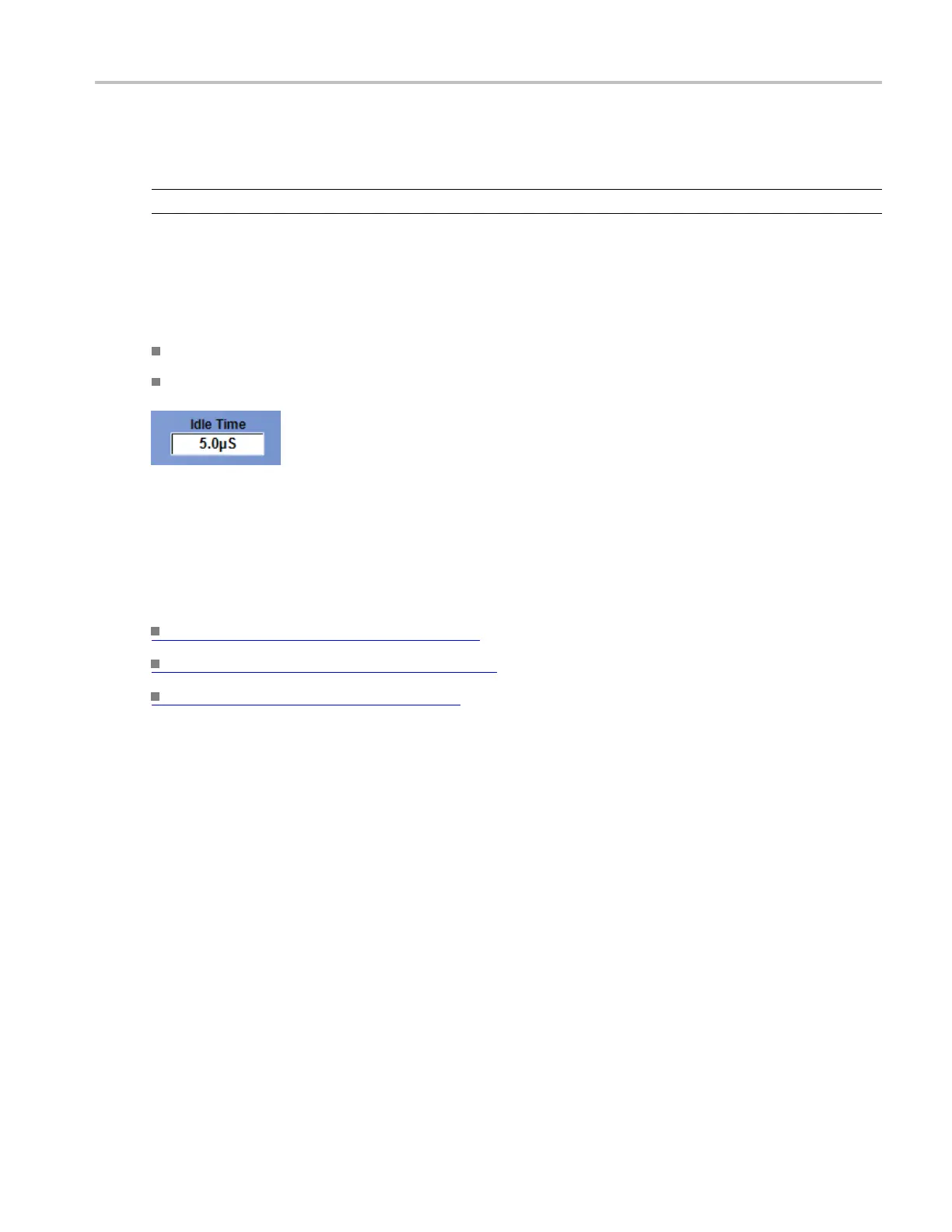

Set the SPI bus idle time
NOTE. The SPI bus Idle Time option is available only on instruments with option SR-EMBD.
From the Bus Setup window, select the Select tab and the SPI Serial bus type.
To use
Select the Idle framing from the drop-down list.
To change the idle time, click the Idle Time entry box and use the keypad to enter a v alue.
Behavior
The instrument changes the idle time and uses that to decode the selected SPI bus.
What d
o you want to do next?
Learn more about bus setups. (see page 95)
Learn about bus configuration. (see page 148)
Learn about digital setups. (see page 87)
