Tektronix DPO5000 Series User Manual

Horizontal and acquisition setups Set Record Length Limit
Learn about the Acquisition Setup controls (see page 181)
Set Record Length Limit

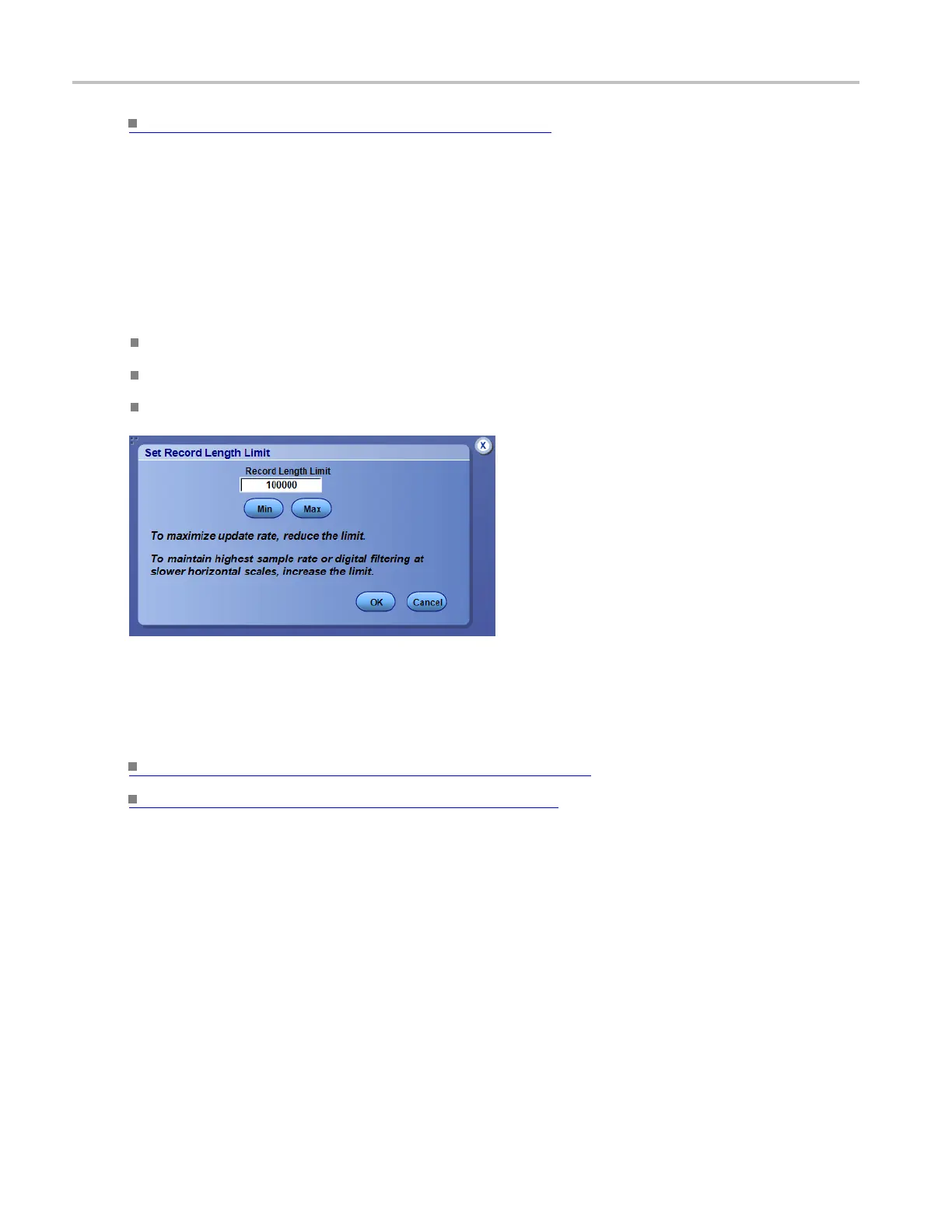

From the Horiz /Acq menu, select Horizontal/Acquisition Setup; then click Record Length Limit.
To use
Use the Record Length Limit entry box to set the maximum record length.
Use the Max button to set the record length limit to its maximum value.
Use the Min button to set the record length limit to its maximum v alue.
To increase the update rate, lower the record length limit. To enable higher sample rates or digital filtering
at slower horizontal scales, increase the record length limit.
What do you want to do next?
Learn more about the Horizontal Setup controls. (see page 900)
Learn about the Acquisition Setup controls. (see page 181)
178 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
