About Tektronix oscilloscopes Controlling from within the graticule area
NOTE. The window cannot be resized.

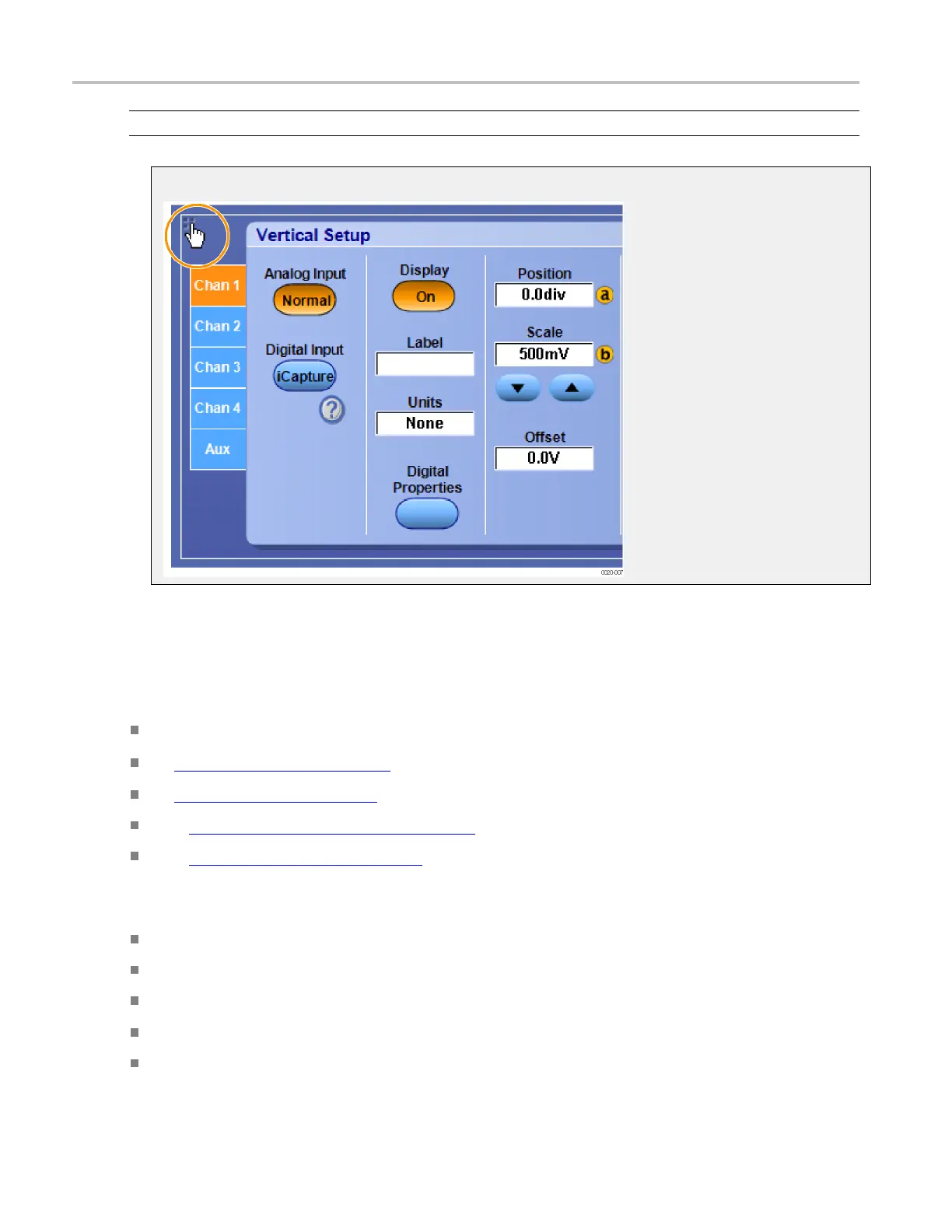

Control window handle
Controlling from within the graticule area
Use the mouse or your finger in the graticule area to click and drag (or touch and drag) the following:
An on-screen cursor to another position on the waveform.
A waveform handle (see page 43) to change the vertical position of a waveform.
A w
aveform label
(see page 43) or other screen text that you have entered to reposition it.
The horizontal reference marker (see page 43) to set the horizontal position.
The trigger level marker (see page 43) to set the trigger level.
You can also click and drag (or touch and drag) across part of a waveform to select it and investigate it
further. Once the selection is made, choose one of the following actions:
Create a Zoom waveform that cove
rs just the selected area
Create a histogram to analyze the selected area
Turn on measurement gates that take measurements only in the selected area
Create a v isual trigger area.
Cancel the selection
42 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
