Utilities Return the Floating License for the Installed Option(s)

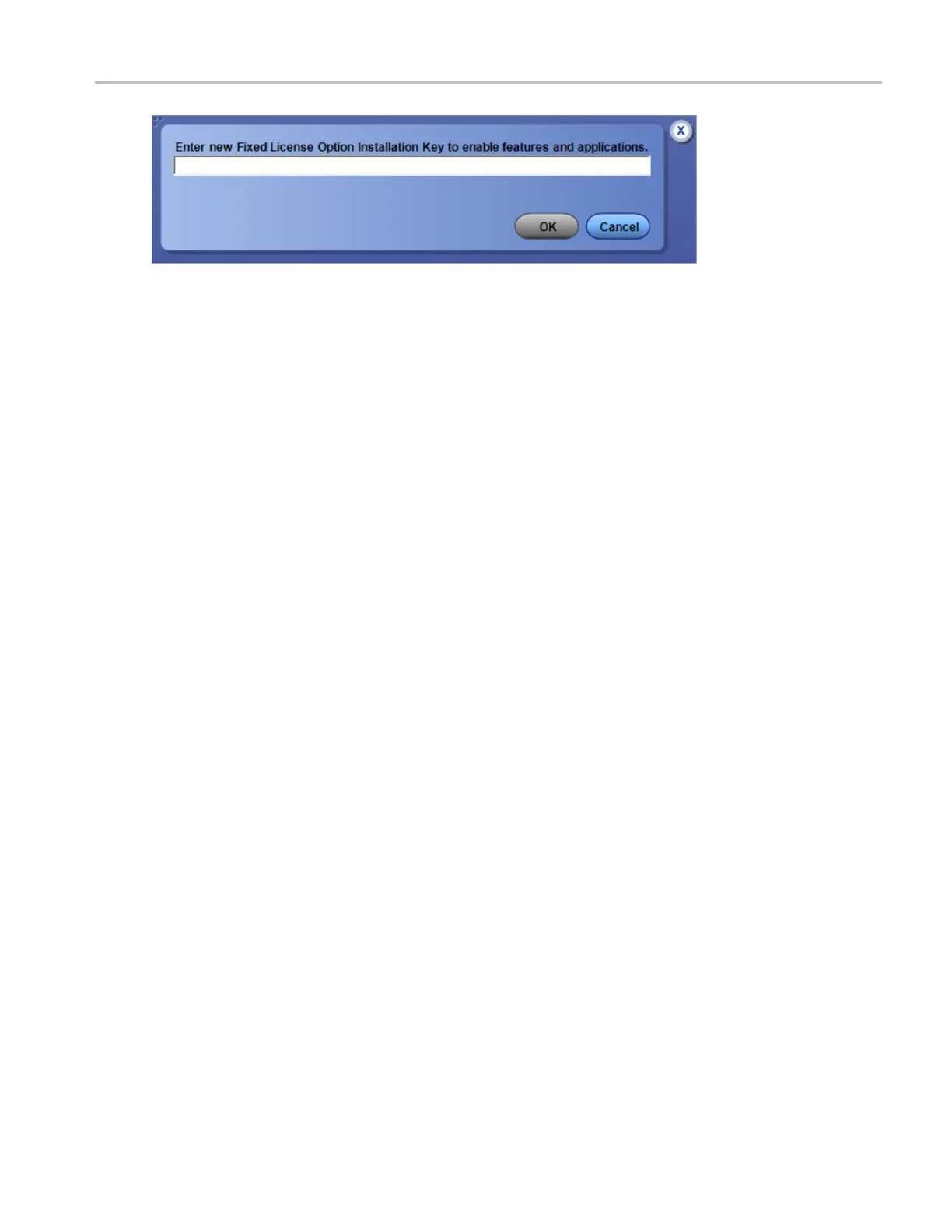

3. Click OK. On successful installation a dialog box appears. Reboot the instrument for the changes to

take effect.

Return the Floating License for the Installed Option(s)

From the Utilities m enu, select Option Installation.

Overview

Use the Option Installation to return the ﬂoating license for the installed Option(s) that you purchased for

your instrument from Tektronix.

To use

1. From the Utilities menu, select Option Installation.

2. Click Continue. The following dialog box appears.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 567
