Bus setups Set up a LIN serial bus
Learn how to se t up a LIN Serial Bus (see page 587)
Learn how to set up a FLEXRAY Serial Bus (see page 588)
Learn how to set up a MIL-1553 Bus (see page 120)
LearnhowtosetupanEthernetBus(see page 121)
Learn how to
track down serial bus anomalies.
(see page 590)
Learn how to view analog characteristics of a digital waveform. (see page 579)
Learn how to trigger on a bus. (see page 658)

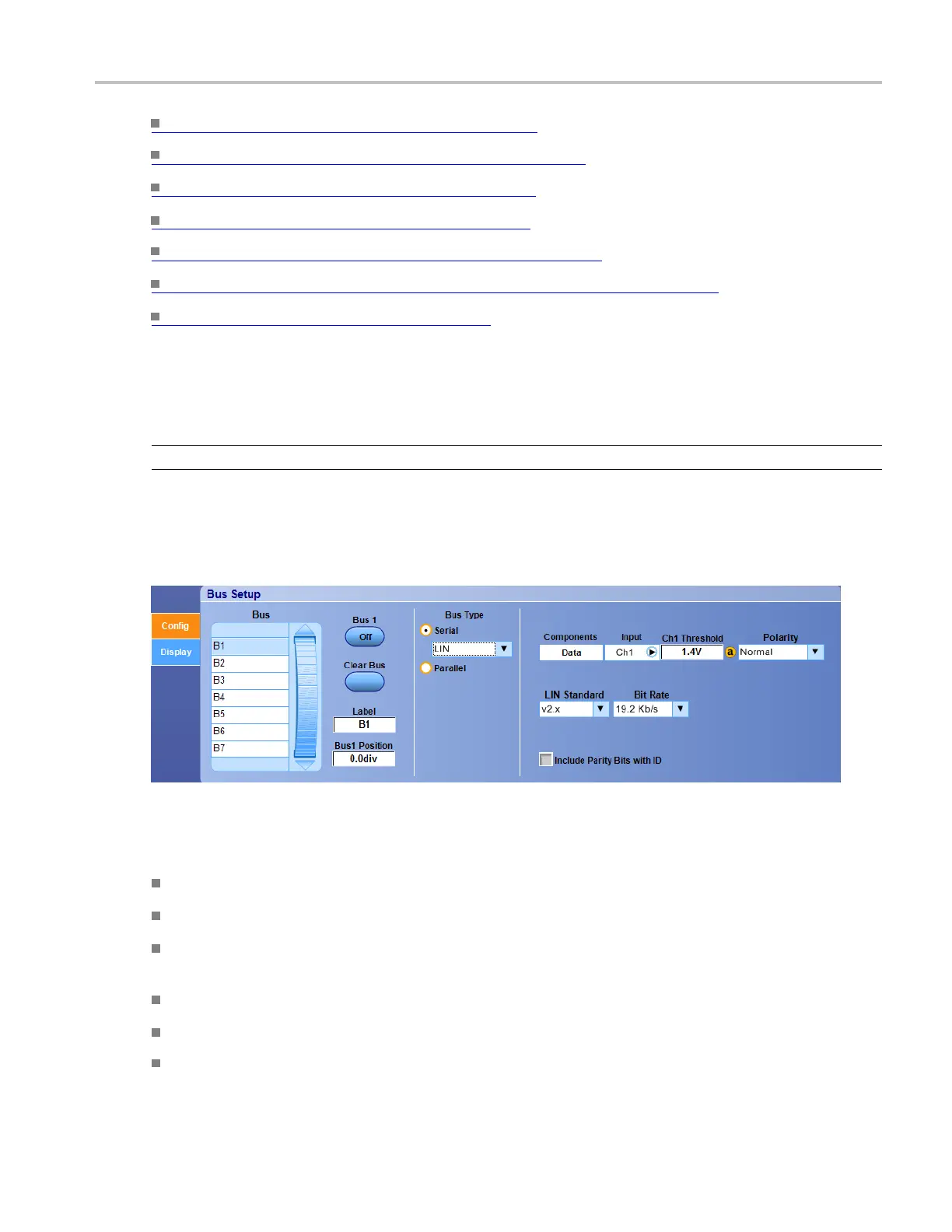

Set up a LIN serial bus
NOTE. LIN serial bus setup is available only on instruments with the SR-AUTO option.
From the Bus Setup window, select Serial from the Bus Type list and then select the LIN Serial bus type.
For information o n the controls, click the buttons.
To use
To change the input for a component, click the Input and select a channel from the cascading lists.
To set the serial bus type, click the Serial Bus Type entry box and select from the drop-down list.
To change the voltage threshold level, click the Threshold entry box and use the keypad to e nter a
value or use the multipurpose knobs to select a voltage level.
To set the polarity, click the Polarity entry box and select from the drop-down list.
To set the LIN standard, click the LIN Standard entry b ox and select from the drop-down list.
To set the bit rate, click the Bit Rate entry box and select from the drop-down list.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 117
