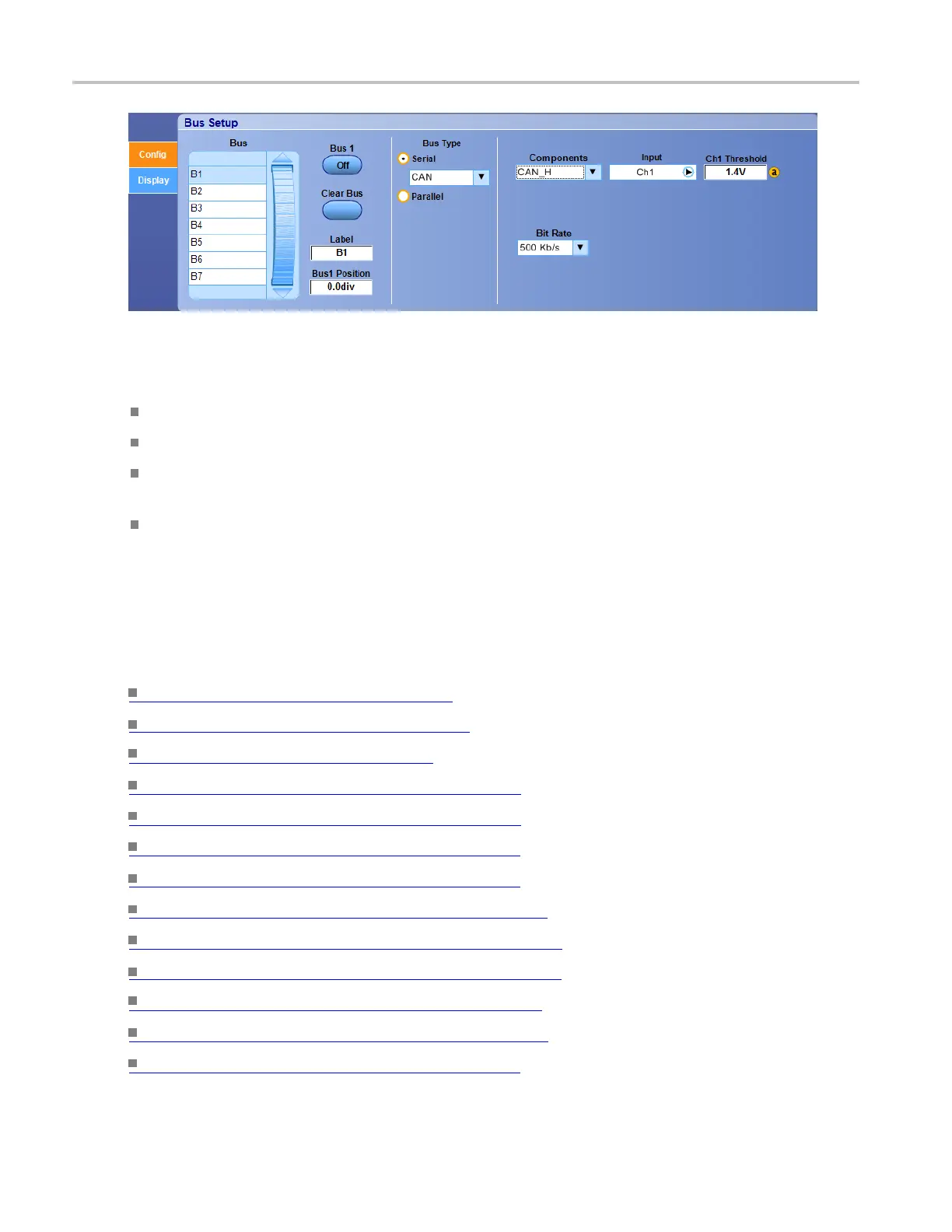

Bus setups Set u p a CAN serial bus
To use
To change the input for a component, click the Input and select a channel from the cascading lists.
To set the serial bus type, click the Serial Bus Type entry box and select from the drop-down list.
To change the voltage threshold level, click the Threshold entry box and use the keypad to enter a
value or use the multipurpose knobs to select a voltage level.
To change the bit rate, click the Bit R ate and select the rate from the cascading list.
Behavior
The instrument changes the components and voltage threshold levels, and uses those to decode the
selected bus.
What do you want to do next?
Learn more about bus setups. (see page 95)
Learn about bus configuration. (see page 148)
Learn about digital setups. (see page 87)
Learn how to set up an I2C serial bus. (see page 582)
Learn how to set up an I2C serial bus. (see page 582)
Learn how to set up an SPI serial bus. (see page 582)
Learn how to set up a USB serial bus. (see page 584)
LearnhowtosetupanRS-232serialbus. (see page 583)
Learn how to set up a MIPI DSI1 Serial Bus (see page 584)
Learn how to set up a MIPI CSI2 Serial Bus (see page 585)
Learn how to set up an 8B10B Serial Bus (see page 111)
Learn how to set up an Cu
stom serial bus.
(see page 586)
Learn how to set up a PCIe Serial Bus (see page 586)
116 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
