Oscilloscope Reference Set up E-mail on Trigger
Set up E-mail on Trigger
Click Setup to access the E -mail o n Event control window where you configure sending e-mail on events.

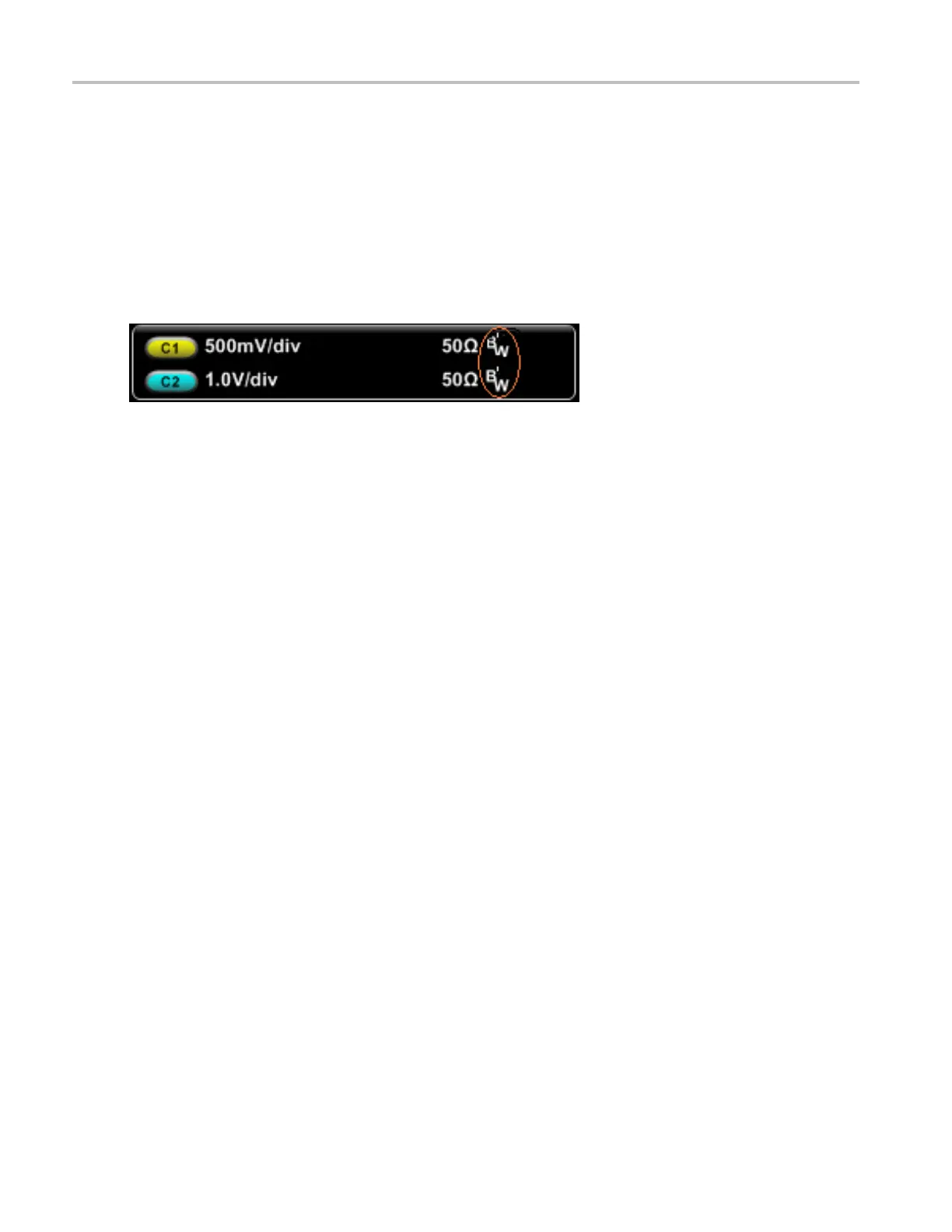

Enhanced bandwidth indicator
Extinction ratio percent
Extinction ratio percent is the ratio of eye base to top expressed as a percentage.
This measurement is only valid when the acquisition mode is set to WfmDB, FastAcq is enabled, or the
measurement is taken on a reference waveform saved in FastAcq mode.
Ext Pe rcent=100 × (pTopMean/pBaseMean)
Extinction ratio
Extinction ratio is the ratio of eye top to base. This measurement is only valid when the acquisition
mode is set to WfmDB, Fas tAcq is enabled, or the m easurement is taken on a reference waveform saved
in FastAcq mode.
Ext Ra tio=pTopMean/pBa seMean
Extinction ratio decibel
Extinction ratio decibel is the ratio of eye top to base expressed in decibels.
This measurement is only valid when the acquisition mode is set to WfmDB, FastAcq is enabled, or the
measurement is taken on a reference waveform saved in FastAcq mode.
ExtdB=10 × Log(pTopMe an/pBaseMean)
816 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
