Tektronix DPO5000 Series User Manual

Analyzing waveforms Set up LIN search parameters

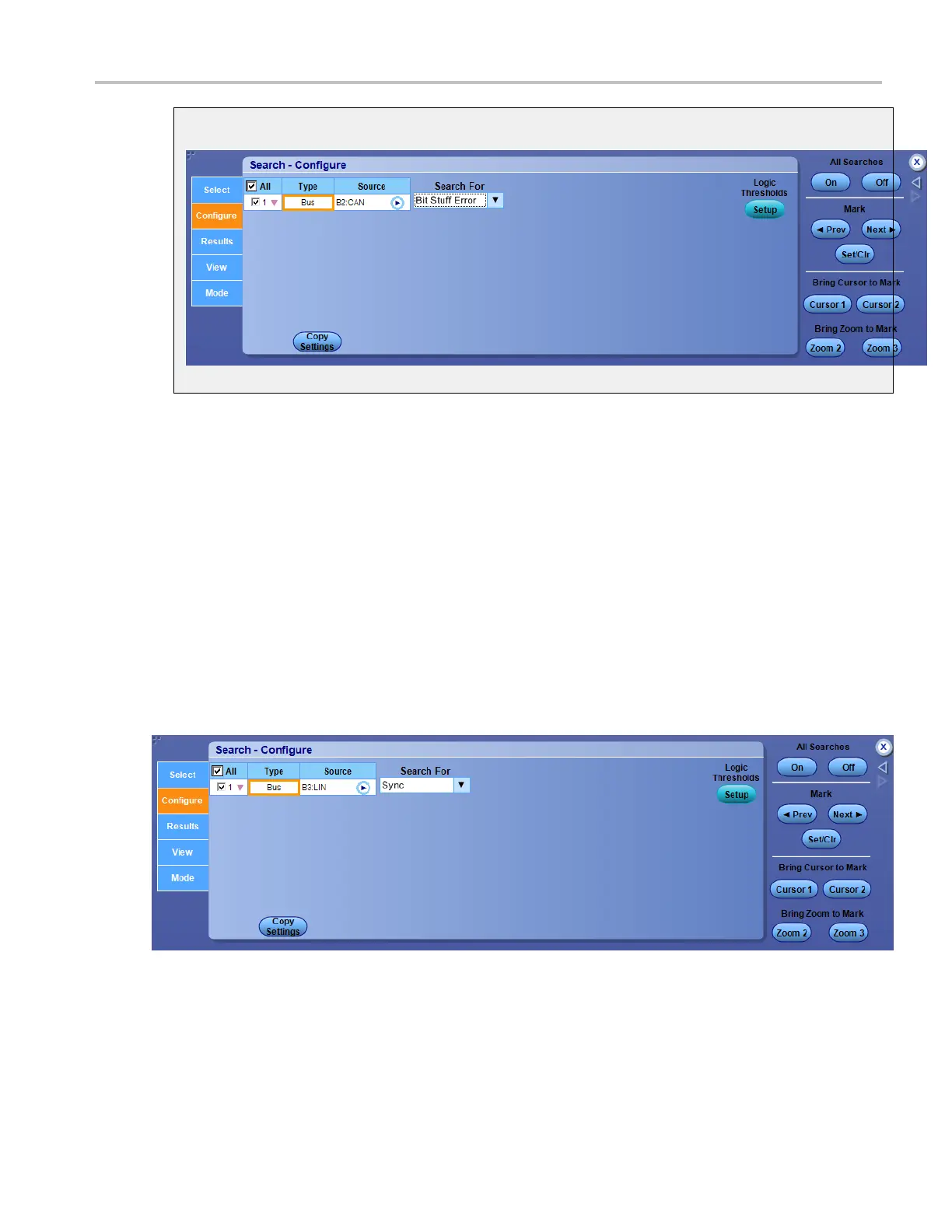

Search for bit stuff error
Set up LIN search parameters
After setting up an LIN bus, go to the Analyze menu, select S earch, and then select the Bus trigger type;
then ope
ntheConfigure tab.
Overview
Use the controls to set up the LIN Bus parameters.
To use
For information o n the controls, click the buttons.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 349
