Cursor setups Cursor sources (YT display)
Cursor sources (YT display)
From the Cursor menu, select Cursor Setup.
Overview

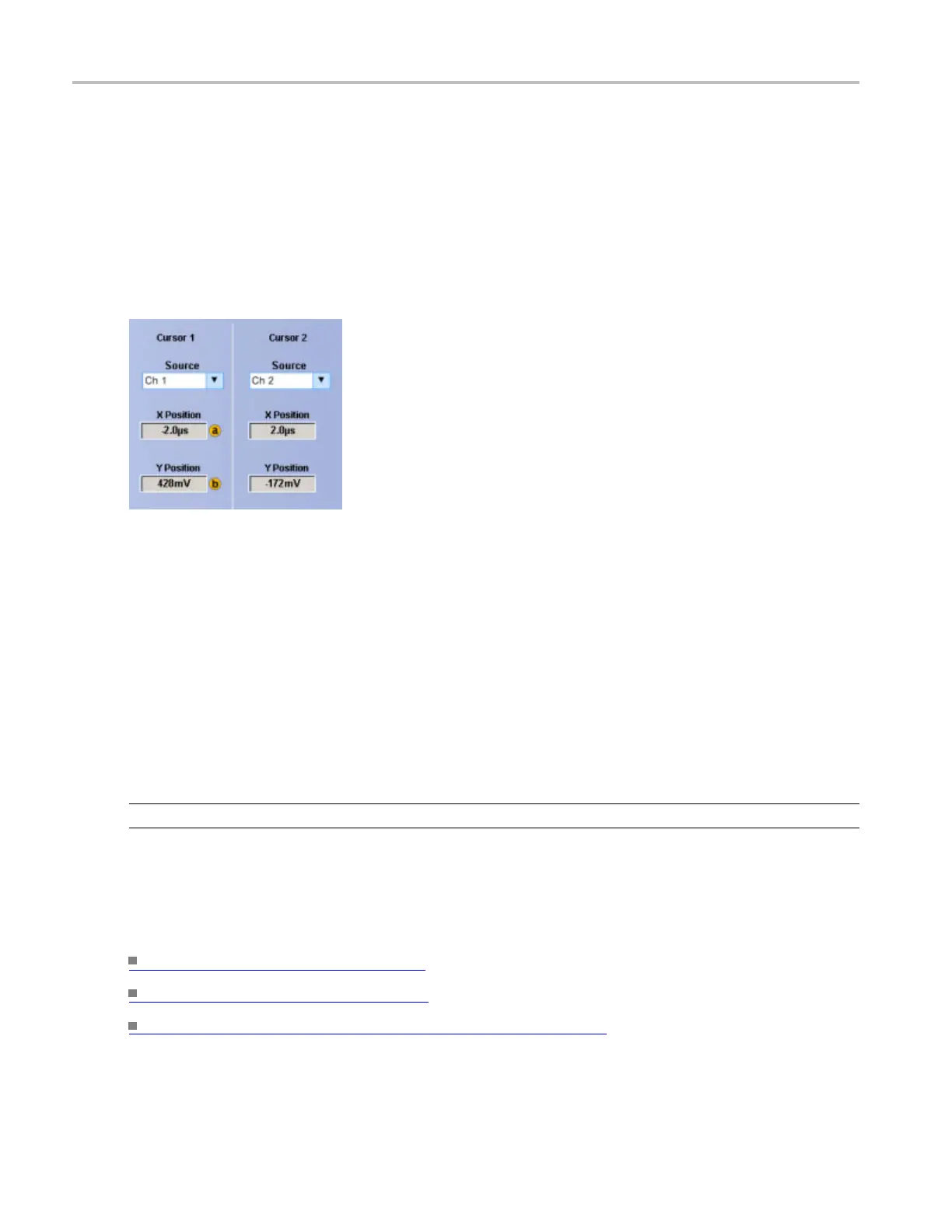

Use these controls to define the source for both Cursor 1 and Cursor 2 for any cursor type.
To use
1. Click the Source drop-down list to select the measurement source for the cursor.
2. Click in an X Position e ntry box and u se a multipurpose knob to adjust the position of the cursor.
Behavior
If the cursor type is V Bars or H Bars, setting t he Cursor 1 source sets the Cursor 2 source to the same
value. To have different sources for Cursor 1 and Cursor 2, set the Cursor 1 source first,andthensetthe
Cursor 2 source.
NOT
E. Only Screen Cursors have both an X and Y Position controls.
The Multipurpose Knobs Adj buttons appear only with Screen cursors. Click the Adj buttons to assign the
mu
ltipurpose knobs to the X-axis and the Y-axis controls.
What do you want to do next?
Learn about cursor types. (see page 73)
Learn about cursor styles. (see page 75)
Learn about Cursor Readouts in XY display format. (see page 75)
74 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
