Error detector setups Set up the serial error detector
Press the Run button to start the error detector.
If desired, you may press Stop or Reset at anytime. After a Stop, you can press Run again.
Run starts the Error Detector testing for errors.
Select the Results tab to see the results of running the error detector.
NOTE. The Serial Error Detector automatically resyncs and resets all counts to zero if you press Reset or
disconnect and then reconnect the signal.
If you are using one of the supplied AWG signal patterns, you can press the Force Event button on the
AWG to induce an error in the signal to verify the operation of the Error Detector. These AWG setup
files are located in Win7 in the directory C:\User\Public\Tektronix\Tekscope\ErrorDetector\AWG
Alternatively, you can verify operation by disconnecting and reconnecting the signal. There will be
massive errors when the signal is disconnected, but after the signal is reconnected the Error D
etector
will resynchronize to the signal, clear the e rror counts and rates, and resume testing.
Press the Error Detector Off button to end the error detector session. A popup will appear saying the
trigger has changed to Edge.
What do you want to do next?
Set up the serial error detector. (see page 200)
Set error detector advanced settings. (see page 203)
Specify the error de tector test pattern. (see page 204)
Set the error detector stop condition. (see page 205)

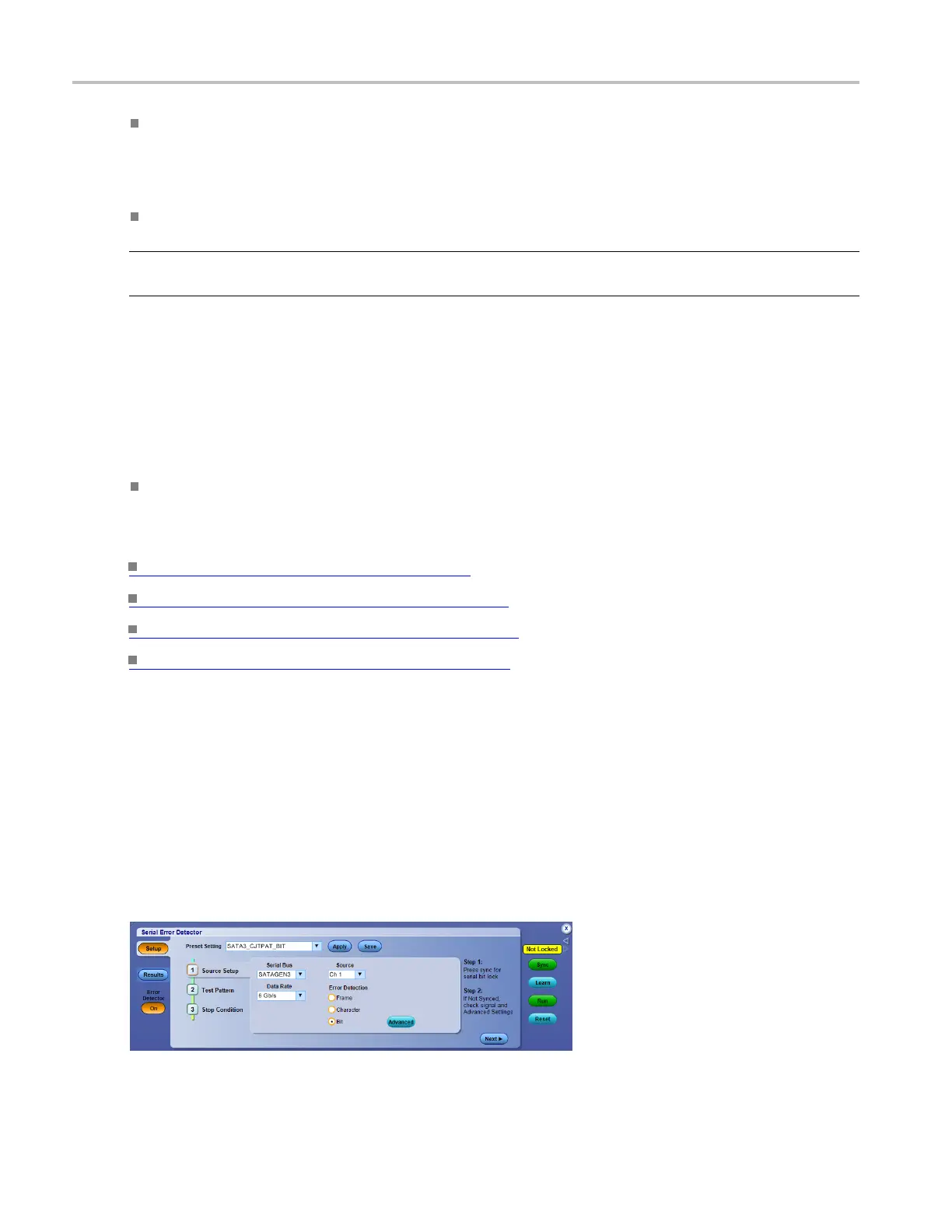

Set up the serial error detector
From the Analyze menu, select Serial Error Detector, press Setup, and then select t he Source Setup tab.
Overview
If you select the Custom Setup or you select one of the presets, but want to make some changes to its
settings, then you will need to make selections in the Setup tab.
200 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
To Next Page
