Display setups Set the waveform intensity
Set the waveform intensity

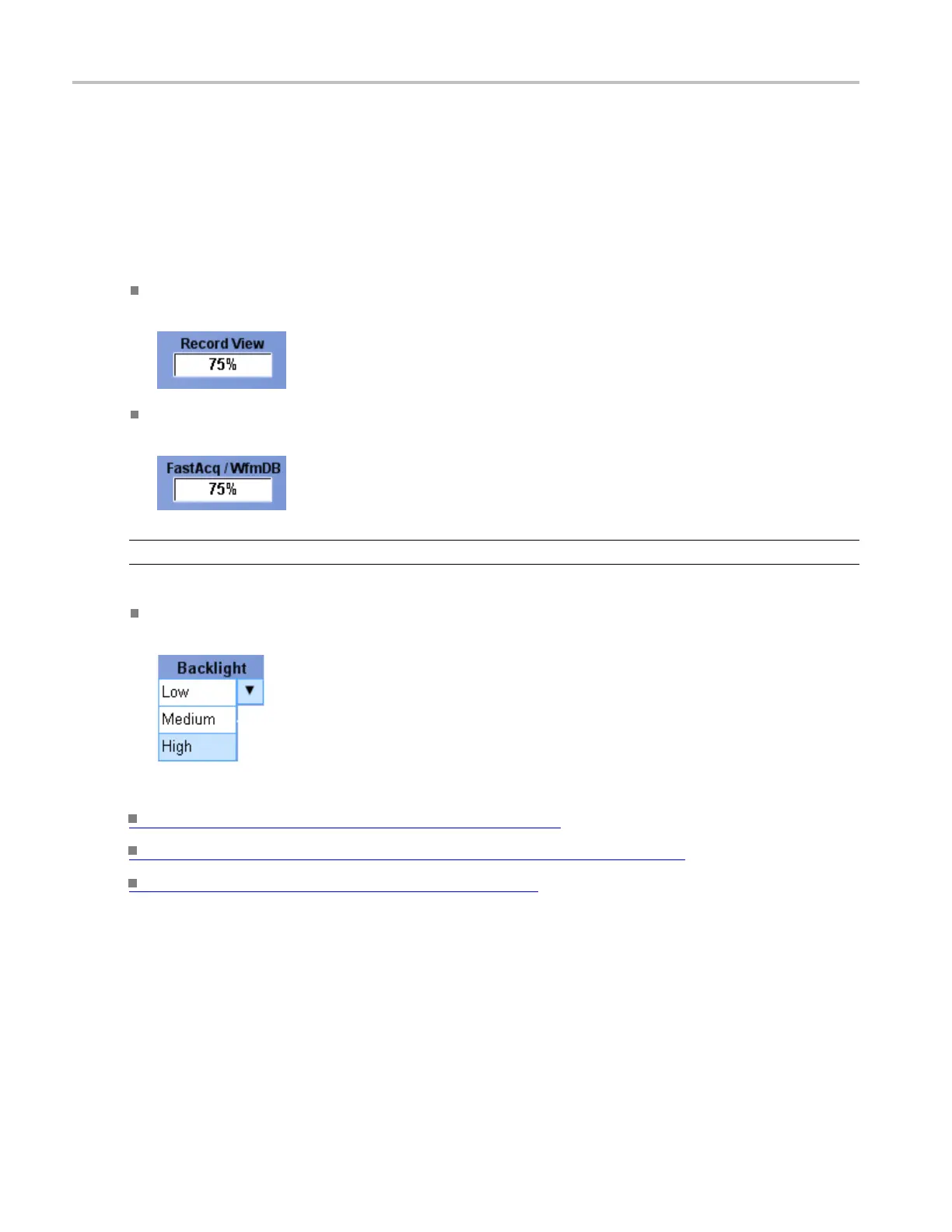

From the Display menu, select Display Setup; then open the Appearance tab.
To use
Click in the Record View entry box and use a multipurpose knob to adjust the intensity of live
waveforms,
except when using Fast Acquisition or Waveform Database acquisition mode.
Click in the FastAcq/WfmDB entry box and use a m ultipurpose knob to adjust the intensity of live
waveforms when using Fast Acquisition or Waveform Database acquisition mode.
NOTE. Backlight control option is available only on MSO/DPO5000 and DPO7000C Series instruments.
Click in the Backlight list box and use the multipurpose knob to adjust the intensity of the backlight
to the required option.
What do you want to do next?
Learn about using text with screen displays. (see page 164)
Learn about changing the appearance of objects in the display. (see page 167)
Learn about changing the display colors. (see page 168)
S
elect the waveform interpolation
F
rom the Display menu, select Display Setup; then open the General tab.
172 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
