Measurement setups Select a miscellaneous measurement
TIP. Turn on Fast Acquisitions to enhance your measurements. In Fast Acquisitions mode, measurements
arecalculatedonanarrayofacquiredwaveforms. Asthe waveforms accumulate (with persistence o n),
your measurem
ent a ccuracy may increase. However, only one or two channels can be displayed when you
take automatic measurements using Fast Acquisitions mode.
If three or mo
re channels are displayed, Fast Acquisitions mode is turned off, and then the requested
measurements are made. Fast Acquisitions mode is not automatically turned back on when you select
fewer than three channels.
What do you want to do next?
Go to a step
-by-step procedure to set up the instrument for taking measurements.
(see page 604)
Select a miscellaneous measurement

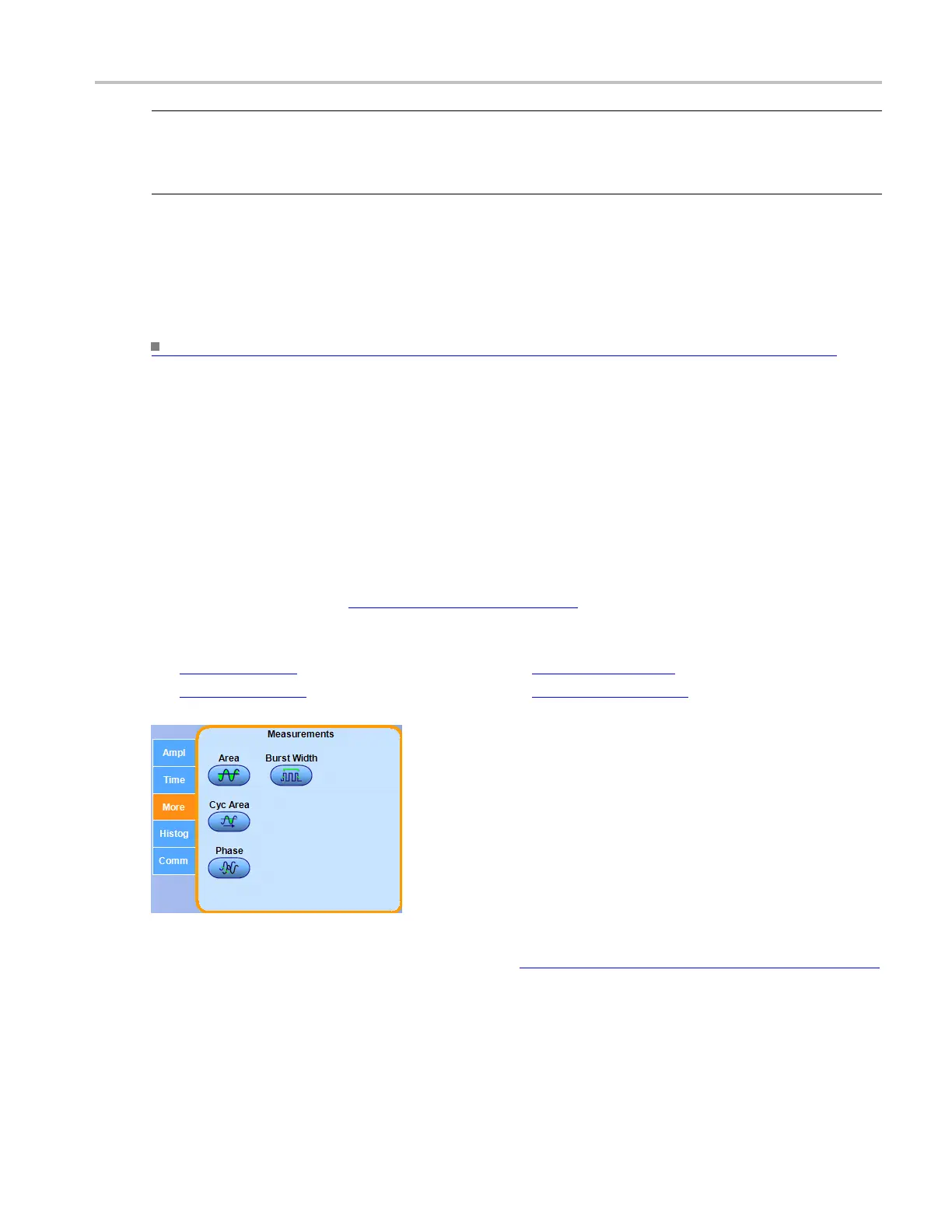

From the Measure menu, select Measurement Setup; then open the More tab.
To use
Use the
More tab to select measurements not found under any of the other measurement tabs.
1. SelectasourcewiththeChannels Selector
(see page 258).
2. Click a Measurements button to add a More measurement to the Measure list:
Area (see page 284) Cyc Area (see page 284)
Phase (see page 284) Burst Width (see page 284)
xxx
3. Click Display On in the upper-right corner of the Measurement Setup Control Window (see page 282)
to turn the measurement display on and off.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 283
