Tektronix DPO5000 Series User Manual

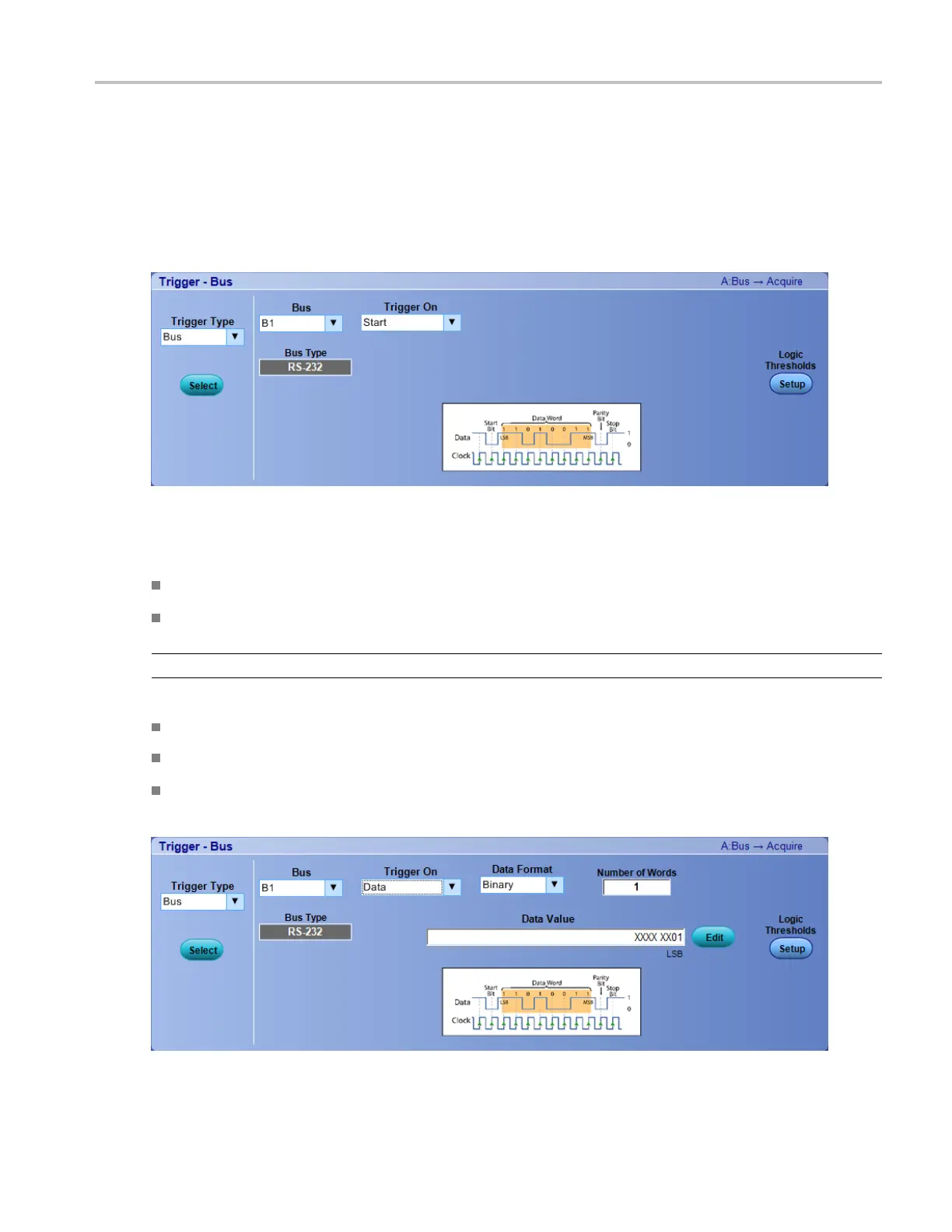

Trigger setups Set up an RS-232 bus trigger
Overview
Use the controls to se t up the RS-232 Bus parameters.
To use
For information o n the controls, click the buttons.
To use
Click the Trigger Type box and select Bus from the drop-down list.
Click the Bus box and select the bus number or name from the drop-down list.
NOTE. You have the option to add user-defined label for bus sources.
Click the Logic Thresholds Setup button to set the voltage threshold levels for the channels in the bus.
Select the type of bus cycle or activity to use as the trigger from the Trigger On drop-down list.
For s ome Trigger On selections, you must set additional fields to define other parameters such as
for a Data.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 399
