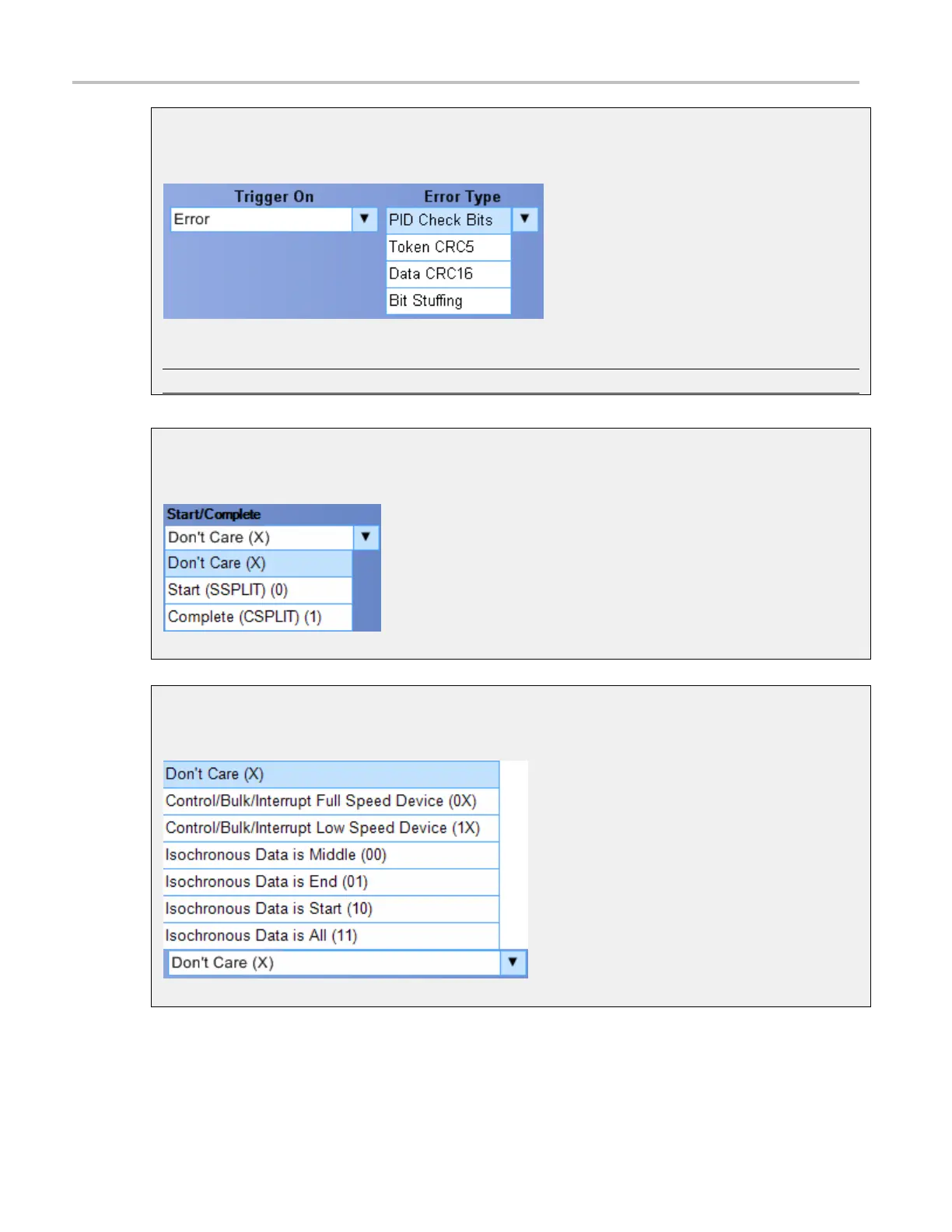

Trigger setups Set up a USB bus trigger

Trigger on Error

The error type options available in Trigger on Error are as follows:

NOTE. The B

it Stufﬁng error type option is not available on high speed bus.

Start/Complete

The options available in Start/Complete are as follows:

Start and end bits

The options available in Start and End bits are as follows:

404 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
