Mask testing setups Save a template
Overview

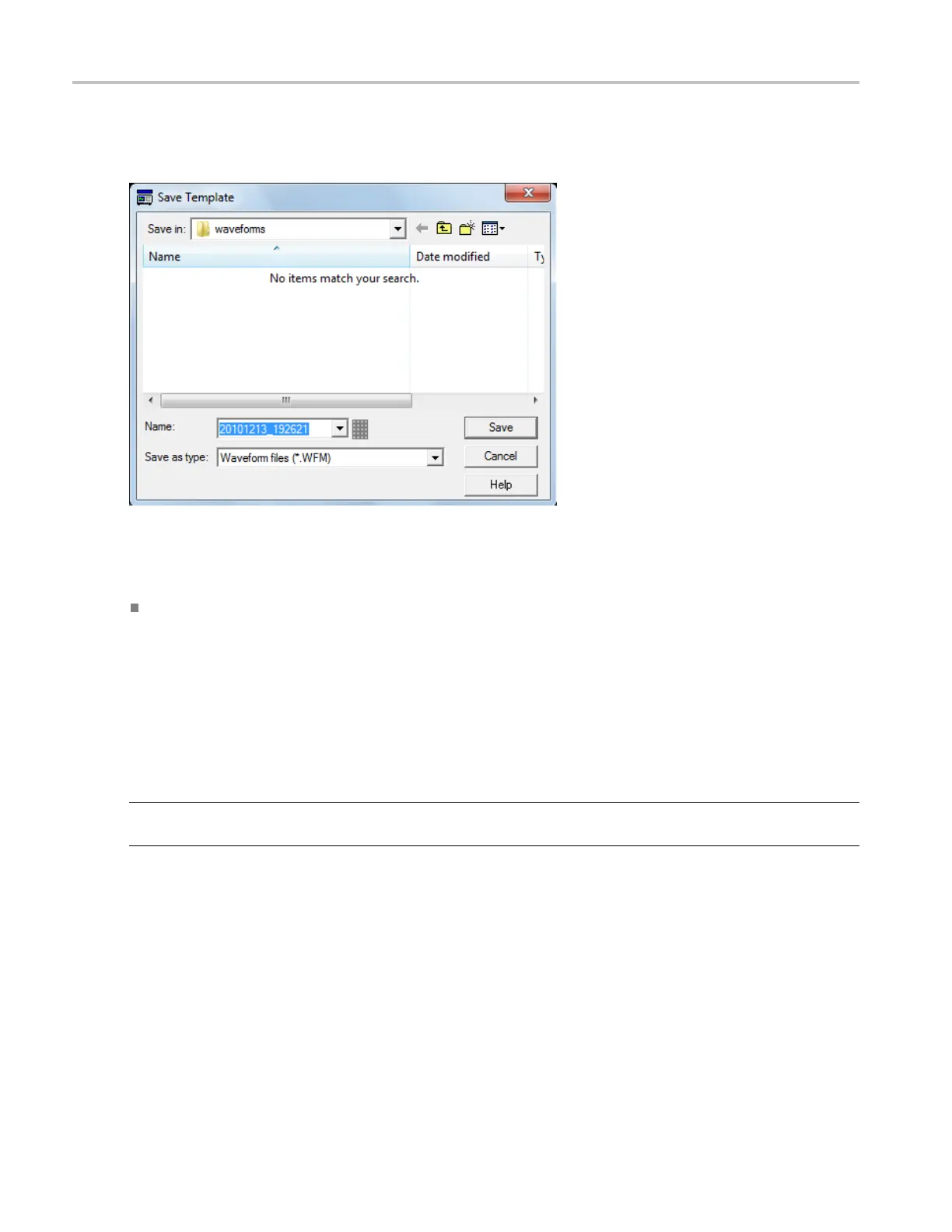

Use this dialog box to save the limit test template to a specified file.
To use
To save to a file,enteraNameorusethedefaultfi le name. The file extension specified in the Save as
type list will automatically be appended to the file name.
Behav
ior
This dialog box opens when y ou select File from the Limit Test Setup control window. The default file
type
is a waveform (.WFM).
The default folder is
C:\Users\[Username]\Tektron ix\TekScope\wave forms.
NOT
E. Any characte rs that you enter in the file name box become part of the file name. The instrument
does not use any user-defined file extensions.
238 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
